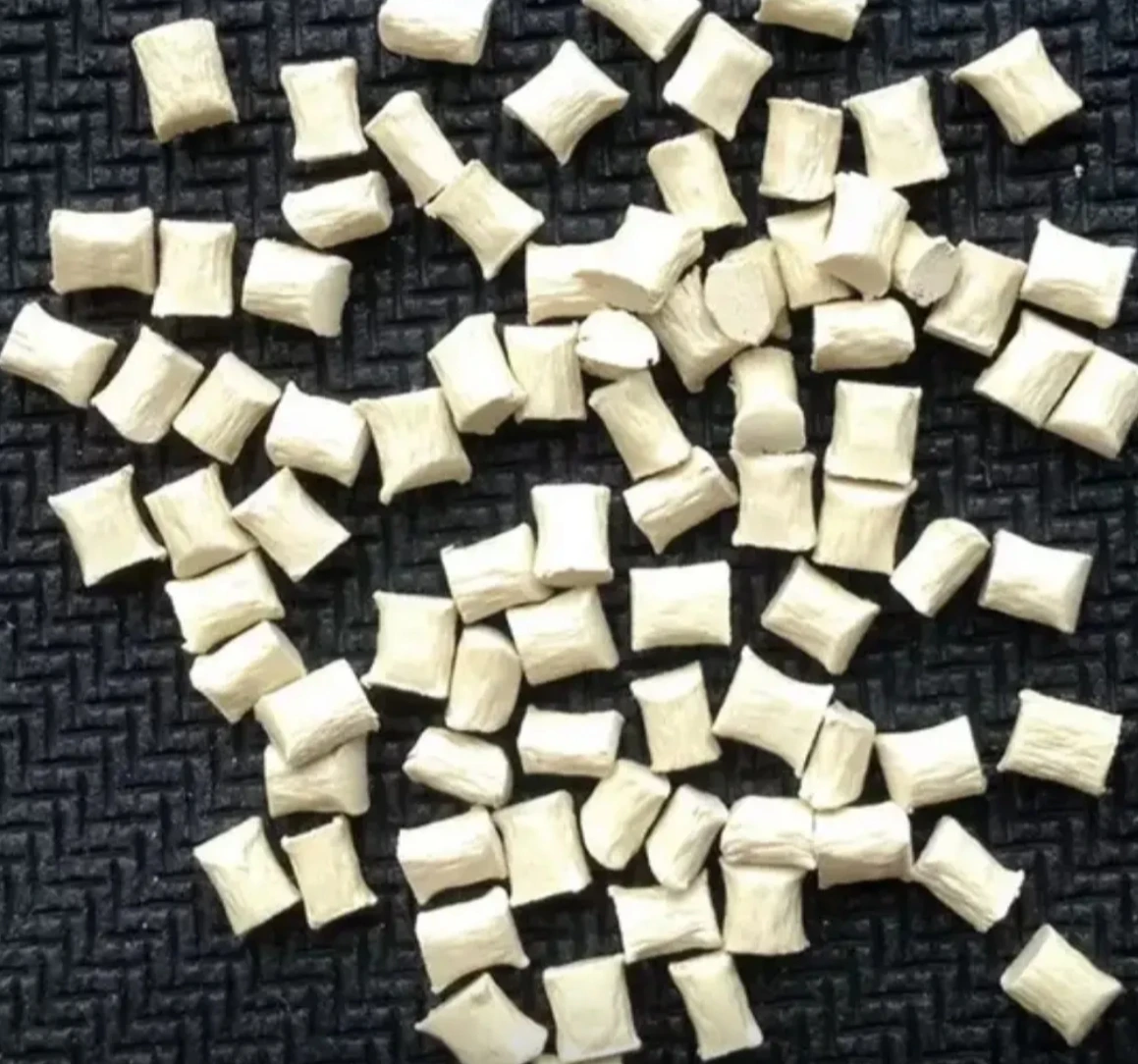

Laperos LCP resin Overview

LCP, also known as liquid crystal polymer, is a type of thermoplastic resin. It gets its name from the fact that its molecules are arranged in an ordered, liquid-crystal-like state when in a molten state. It is precisely this structure that gives the material extremely high rigidity and the ability to form ultra-thin-walled products.

Laperos liquid crystal polymer (LCP) is a material developed by Polyplastics for use in electronic connectors, surface-mount technology (SMT) components, and other precision parts. Its key characteristics include extremely low water absorption, high rigidity, excellent thin-wall molding performance, and high-temperature resistance.

2. Properties of Laperos LCP Resin

• Ultra-Thin-Wall Molding: Laperos LCP exhibits high melt flow rates; some ultra-high-flow grades have MFI values far exceeding those of typical resin materials, making them particularly suitable for fine-pitch connectors and complex electrical components.
• Temperature resistance: Generally, Laperos LCP resin can withstand temperatures of 220°C or higher. It is a material specifically developed for high-temperature applications and is particularly well-suited for high-temperature reflow soldering, a soldering technique used in the assembly of electronic components.
• Low water absorption and dimensional stability: Compared to traditional polymer materials, Laperos LCP has a water absorption rate of less than 0.01, which helps maintain dimensional accuracy in applications with tight tolerance requirements.
• Electrical Insulation and Flame Retardancy: Typically, Laperos LCP meets the UL 94 V-0 standard for flame retardancy, while also offering excellent insulation properties; its extremely low water absorption rate further enhances its insulation performance in humid environments.

Electronic and electrical connectors

Laperos LCP resin is the material of choice for micro-connector housings, fine-pitch terminal assemblies, and other precision parts; thanks to its excellent dimensional stability and ultra-thin-wall molding capabilities, it accounts for more than 30% of the LCP market.

Optical Communication Components

In multi-fiber connector systems and high-density optical interconnects, precise alignment and compact structural design are critical. Appropriately selected Laperos LCP grades can support the molding of complex connector components.

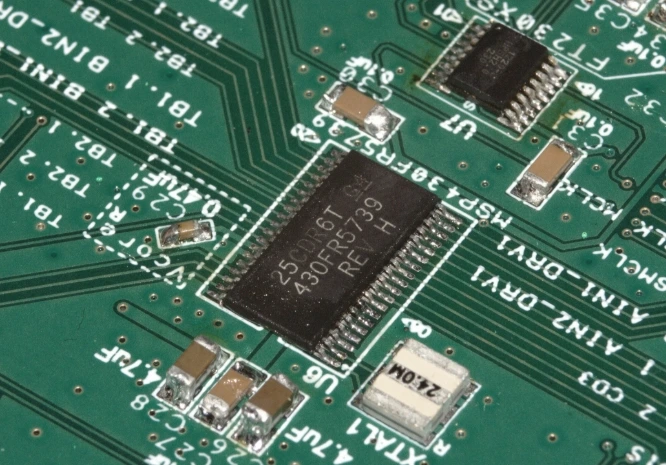

SMT - Surface-Mount Technology

SMT is an electronic assembly technology in which leadless or short-lead electronic components are directly placed and soldered onto specified pads on the surface of a printed circuit board (PCB). Since soldering requires temperatures exceeding 200°C, there are few materials capable of withstanding these conditions; among them, Laperos LCP is an excellent alternative material.

4. Comparison of the Physical and Mechanical Properties of Laperos LCP Resin
