INEOS Luran S 778T ASA

Material attribute: ·Heat resistant ·UV resistant ·High stiffness

Package:25KG/Bag

Process: Injection molding

Melt index: 5cm³/10min (at 220℃ 10kg)

Get Quotation

INEOS Luran S 778T ASA Description

Luran® S 778T is acrylonitrile-styrene-acrylate resin produced by INEOS Styrolution Group GmbH, also known as"ASA material." This reinforced ABS material offers excellent high temperature resistance, weather resistance and UV resistance. Luran S 778T ASA material is commonly used in products requiring long-term outdoor use, such as automotive radiator grilles, automotive mirror housings and home appliances.

Luran S 778T ASA material is sourced from multiple manufacturers; we give priority to the product manufactured by Lotte INEOS Chemical.

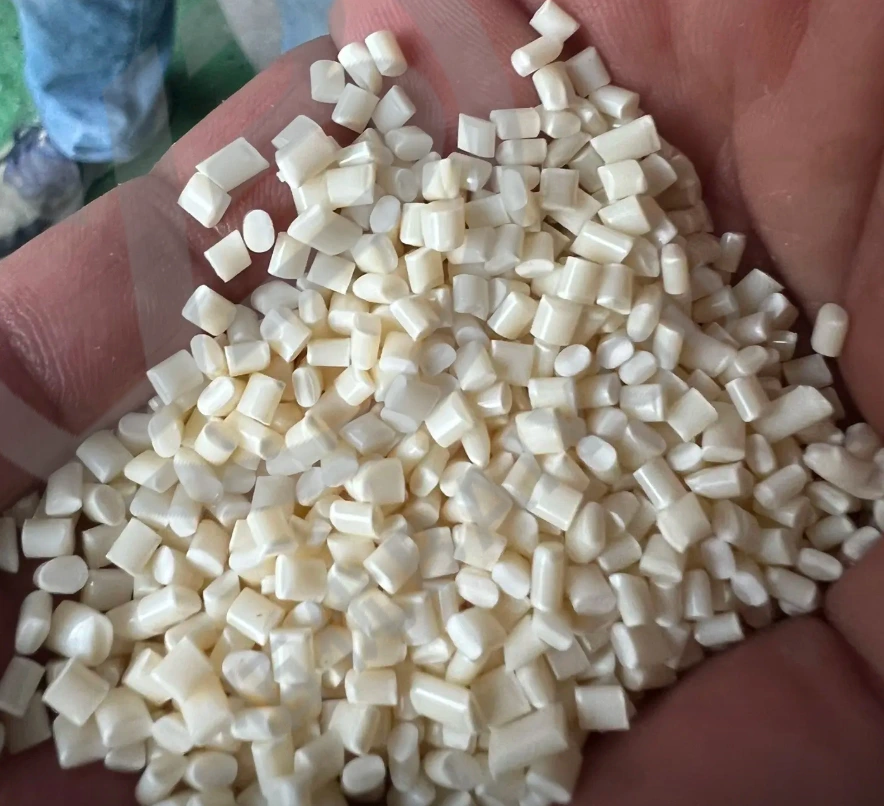

Luran S 778T ASA is available in two standard colors: natural and black, both of which have a good gloss level, as shown in the image on the left. The product is cylindrical in shape. Please contact us if you require custom colors.👉+86 15837933829

INEOS Luran S 778T ASA Advantage

Excellent weather resistance, Compared to traditional ABS materials, INEOS Luran S 778T ASA offers enhanced weather resistance. It incorporates light stabilizers and UV stabilizers, enabling products manufactured from it to maintain excellent mechanical properties and appearance after prolonged outdoor use and exposure to sunlight. This material is suitable for producing automotive rearview mirrors, radiator grilles, and other applications requiring long-term outdoor exposure.
Good thermal stability: INEOS Luran S 788T ASA material incorporates thermal stabilizers, delivering superior high-temperature resistance. After annealing under 0.45 MPa testing conditions, its heat deflection temperature reaches 106°C, and even under 1.8 MPa testing conditions, it achieves 103°C. This makes it highly suitable for automotive components and appliance housing parts requiring efficient heat dissipation.

Why choose Baiyou as INEOS Luran S 778T ASA supplier?

Leading heat resistant Acrylonitrile-styrene-acrylate resin pellets supplier (ASA material) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
Fastest Arrival, with warehouses in multiple ports
1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
Free Samples for production testing
Wholesale price, even a piece of goods is based on the wholesale price

Key Attributes

INEOS Luran S 778T ASA
Product information
Manufacturer		INEOS styrolution group GmbH
Other Certificates		MSDS
Part Marking Code		>ASA material<
Color		Natural color
Material Shape		ASA Pellets
Process		Injection molding
Flame retardant		HB
Material attribute		·Injection molding ·Heat resistance grade ·Heat stabilized grade ·UV resistant grade
Features		·High stiffness ·High toughness ·High softeing temperature ·High heat distortion temperature ·Chemical resistant
Application		·Automotive radiator grill ·Automotive mirror housing ·Rear bumper etep ·Household equipment ·Injection molding applications
Additives		·Heat stabilizer ·Light stabilizer ·UV stabilizer
Physical properties	Standard	Value	Unit
Density	ISO 1183	1070	kg/m³
Water absorption 23℃ saturation	ISO 62	1.65	%
Melt Index 220°C 10kg	ISO 1133	5	cm³/10min
Humidity absorption 23℃ 50RH equilibrium	ISO 62	0.35	%
Hardness	Standard	Value	Unit
Ball indentation hardness	ISO 2039	85	MPa
Mechanical behavior	Standard	Value	Unit
Tensile Modulus	ISO 527	2500	MPa
Tensile Strength Yield 23℃	ISO 527	54	MPa
Elongation yield 23℃	ISO 527	3.4	%
Elongation Break 23℃	ISO 527	8	%
Tensile creep modulus 1000hr	ISO 899	1250	MPa
Flexural Strength 23℃	ISO 178	80	MPa
Charpy notched impact 23℃ 1eA	ISO 179	15	kJ/㎡
Charpy notched impact -30℃ 1eA	ISO 179	4	kJ/㎡
Thermal	Standard	Value	Unit
HDT 1.8MPa annealed at 80℃ for 4 hours	ISO 75	103	°C
HDT 0.45MPa annealed at 80℃ for 4 hours	ISO 75	106	℃
Vicat softening temperature 50℃/hr 50N	ISO 306	104	℃
Vicat softening temperature 50℃/hr 10N	ISO 306	113	℃
CLE	ISO 11359	8.E1-5~1.1E-4	cm/cm/℃
Heat condutivity coefficient	DIN 52612	0.17	W(m·K)
Electrical properties	Standard	Value	Unit
Volume resistivity	IEC 62631	1E+12	Ω·m
Surface resistivity	IEC 62631-3-1	1E+13	Ω
Dielectric constant 100 Hz	IEC 62631-2-1	3.9
Dielectric constant 1 MHz	IEC 62631-2-1	3.5
Disspation factor 100 Hz	IEC 62631-2-1	0.009
Disspation factor 1 MHz	IEC 62631-2-1	0.033
Flammability	Standard	Value	Unit
Flame rating all color 0.75 mm	UL 94	HB
Flame rating all color 1.5 mm	UL 94	HB
Flame rating all color 3.0 mm	UL 94	HB
Injection molding	Standard	Value	Unit
Dry temperature		80	℃
Dry time		2-4	hr
Melt temperature		240-280	℃
Mould temperature		40-80	℃
Shrinkage		0.4-0.7	%
