1. What is Zytel？
Zytel is a world-renowned brand of engineering nylon plastics, originally developed by DuPont and now owned by Celanese Corporation. Zytel encompasses a wide range of polyamide materials, including PA6, PA66, PA66/6, PA610, PA612, PPA, and specialty high-temperature nylon materials.
For engineers and professional buyers, common Zytel nylon grades include Zytel 101L NC010, Zytel 70G33L, and Zytel FR50. When first learning about these products, it may be difficult to understand the naming conventions; however, each prefix, suffix, number, and letter represents different properties, fillers, additives, and colors of Zytel nylon.
This guide provides a detailed overview of the different classifications of Zytel nylon and the variations in their naming conventions.
2. Zytel Nylon Brand Categories
Zytel is a generic term for a class of high-performance nylons, which also includes the Zytel HTN high-temperature nylon series.
2.1 Zytel Nyon standard Series
The standard Zytel Nyon series follows the following naming convention:
Base material + Filler/Reinforcement + Modifying Additive + Color Code
For example: Zytel 70G33L NC010
This can be interpreted as:
This can be interpreted as:
- 70: Standard Grade PA 66
- G33: 33% glass fiber reinforced
- NC010: Natural color
Although not all Zytel standard-grade nylons follow this naming convention, most use the same naming convention.
2.1.2 Zytel nylon Base material code meaning
The first digit in Zytel's designation represents different categories of nylon base materials, as shown in the table below
| Grade example | Resin Type | Description |
| Zytel 101 | PA66 | General Purpose, Standard Level |
| Zytel 70* | PA66 | Glass-Fiber-Reinforced Engineering Plastics |
| Zytel 71* | PA66 | Glass-fiber-reinforced grade, impact-modified |
| Zytel 72* | PA66/6 | PA66/6 Alloy Material |
| Zytel 73* | PA6 | Glass-Fiber-Reinforced Engineering Plastics |
| Zytel 74* | PA66+PA6 | Glass-fiber-reinforced grade, PA66+PA6 blend |
| Zytel 77* | PA612 | Glass-Fiber-Reinforced, High-Performance, Long-Chain Nylon Engineering Plastics |
| Zytel 78* | PA610 | Glass-Fiber-Reinforced, High-Performance, Long-Chain Nylon Engineering Plastics |
| Zytel 79* | PA66 | Glass-fiber-reinforced grade, impact-modified |
| Zytel 80* | PA66 | Fiberglass-reinforced grade, ultra-tough |
| Zytel 81* | PA6 | Toughening Modification |
| Zytel 82* | PA66/6 | Fiberglass-reinforced grade, ultra-tough |
| Zytel 84* | PA66+PA6 | Glass-fiber-reinforced grade, ultra-tough, PA66+PA6 blend |
（⚠️ Zytel *2 refers to a PA66/6 alloy, and Zytel *4 refers to a PA66+PA6 blend.）
2.1.3 Zytel nylon glass fiber filled code meaning
The codes for glass fiber-reinforced nylon materials are relatively easy to identify. The "G" indicates the addition of short glass fibers, and the two-digit number following the "G" generally represents the weight percentage of glass fibers in the material. For example, Zytel 70G35HSL refers to 35% glass fibers PA66 reinforced (GF35 PA66).
2.1.4 Zytel nylon Suffix code meaning
Since the requirements for nylon vary across different applications, it is necessary to add appropriate additives to the material to improve its properties. Common additive suffixes include:
- L: Lubricant; the material contains an internal lubricant designed to improve the surface finish of the finished product, reduce material residue in the mold, and enhance flow rate. For example, Zytel 101L PA66.
- HS: High-temperature stabilizer, used to improve a material’s long-term heat resistance and thermal aging properties.
- HSL: High-temperature stabilizer + lubricant
- F:Release Agent，Used to increase processing speed and enable large-scale, high-speed processing
- W: Improved weather resistance
- V0: Fire retardancy (UL 94 V-0), Zytel FR7026V0
- V1: Fire retardancy (UL 94 V-1)
- R: Improved resistance to biodegradation or hydrolysis
- A: Reduced material residue in molds
- BL: Water heated moulding
2.1.5 Zytel nylon Prefix code meaning
Depending on the application, Zytel nylon has also been developed into materials with specific technical modifications, which are primarily indicated by prefix codes.
- MT: Semi toughened reinforcement
- ST: Super toughened, e.g., Zytel ST801
- FR: UL 94 V-0 high-efficiency flame-retardant, e.g., FR7025V0
- EMX or EMI: Electromagnetic shielding
- CDV: Antistatic
- WRF: Wear-resistant
- DMX: High-performance amorphous chemically modified PA66 resin
- TRA: Improved optical properties

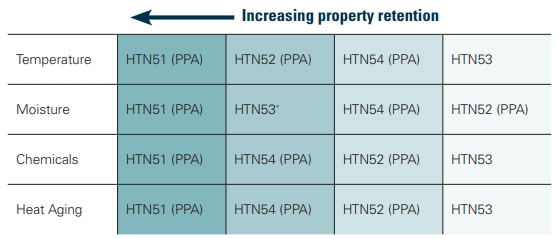

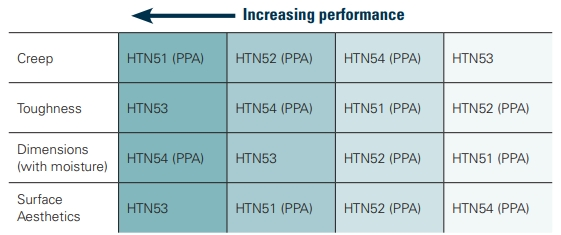

2.2 Zytel HTN high temperatue Nyon Series
Zytel HTN nylon is available in four series: 51G, 52G, 53, and 54G. It is a semi-aromatic polyamide material and a high-temperature nylon (PPA material), making it particularly suitable for use in automotive engine parts, as well as electronic and electrical connectors. The 51G, 52G, and 54G grades are modified PA 6T materials.
- Zytel HTN51G: PA6T/XT, maintains excellent mechanical properties even at high temperatures
- Zytel HTN52G: PA6T/66, used in water heated tools. High resistance to heat, chemicals, and steam
- Zytel HTN53G: PA，It exhibits high toughness and stiffness at moderate temperatures,used in water heated tools
- Zytel HTN54G: PA6T/XT+PA6T/66, Improved toughness and material stability in humid environments based on Zytel HTN52G PPA resin
3. Why choose Baiyou as Zytel nylon resin supplier?
-
Leading high temperat nylon supplier (PPA material) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
- Fastest Arrival, with warehouses in multiple ports
- 1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
- Free Samples for production testing
- Wholesale price, even a piece of goods is based on the wholesale price
References and Notes
- Zytel,"DuPont Zytel HTN high performance polyamide resin", DuPont, 29/07/2026
- Zytel,"DuPont Zytel HTN high performance polyamide resin products reference guidance", DuPont, 29/07/2026
- Zytel,"Zytel / Minlon nylon resin engineering thermoplastic resin", DuPont, 29/07/2026
