Celanese Zytel ST801 NC010 | High impact

 Celanese Zytel ST801 PA66 Description

Zytel ST801 impact modified PA66 resin is sourced from multiple locations; we prioritize supplying the grade produced by Celanese (Shenzhen) Corporation. There are two standard colors: Zytel ST801 NC010—natural PA66; Zytel ST801 BK010—opaque black PA66.

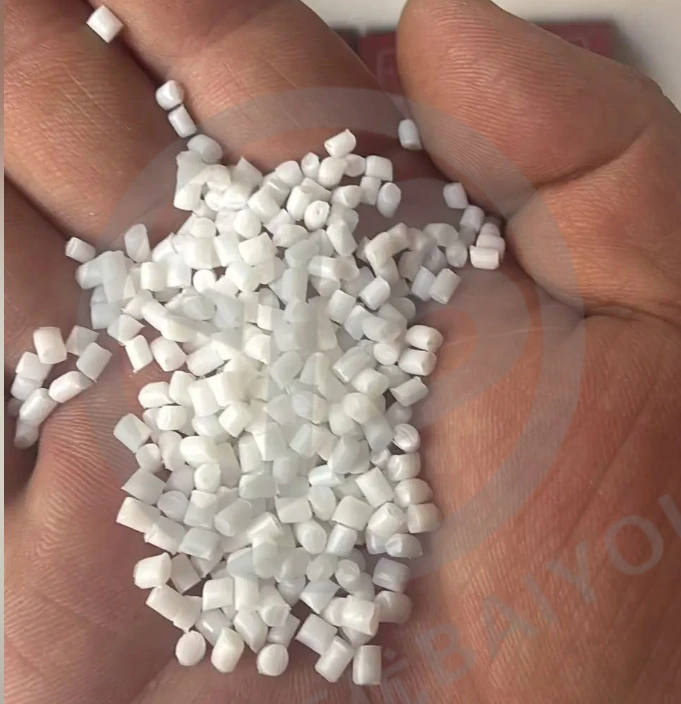

As shown in the image on the left, Zytel ST801 NC010 manufactured in Shenzhen comes in the form of cylindrical white pellets. Please contact us if you require a custom color.👉+86 15837933829

Celanese Zytel ST801 PA66 pellet Advantage

• Excellent impact resistance.Zytel ST801 PA 66 contains toughening agent and offers better flexibility and impact resistance compared to the more commonly used Zytel NC010 general purpose nylon 66 material. In dry state and -30°C, the Izod notched impact strength of 80kJ/㎡, even at extremely low temperatures, Zytel ST801 PA66 still exhibits excellent impact strength. As a result, it is often used in the production of automotive components, home appliance parts, and industrial parts that require high impact strength.

• Nylon Materials Used in the Automotive Industry. Zytel ST801 is widely used in automotive applications due to its outstanding performance. It has met the certification requirements for PA66 materials set by numerous automakers, including BMW, Ford, Hyundai, Mercedes-Benz, and Stellantis-Chrysler, and can be used directly without the need for secondary material certification.
• With balanced thermal and electrical properties, Zytel ST801 PA 66 material has the high heat resistance and high insulation properties of polyamide materials. The heat deformation temperature under the 0.45MPa test environment can reach 130℃, and the insulation strength under the 1.0mm test thickness reaches 31KV/mm. Its excellent performance makes it widely used in fields such as electrical parts manufacturing.

Why choose Baiyou as Celanese Zytel ST801 PA 66 supplier?

• Leading impac resistant polyamide 66 resin supplier (HI-PA66 material) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
• Fastest Arrival, with warehouses in multiple ports
• 1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
• Free Samples for production testing
• Wholesale price, even a piece of goods is based on the wholesale price

---

 Key Attributes

Celanese Zytel ST801 NC010 PA66
Product information
Manufacturer		Celanese Corporation
Part Marking Code		>PA66-HI material<
Color		Natural Color
Material Shape		nylon66-HI Pellets
Process		Injection molding nylon66
Flame Retardant		HB
specification		UL UL-746C F1
Automotive specification		·BMW-GS93016-PA66 ·Ford - WSK-M4D666-A ·Hyundai - MS211-46 Type C-2 ·Mercedes-Benz - DBL5410.00 PA66-I  ·Stellantis-Chrysler - MS.50017 / CPN-2345 ·Stellantis-Chrysler - MS.50017 / CPN-2424 ·Stellantis-Chrysler - MS.50017 / CPN-2456
Features		·High impact or impact modified
Additives		Lubricant
Physical properties	Standard	Value		Unit
Density	ISO 1183	1.08		g/cm³
Water Absorption, 2mm	ISO 62	6.5		%
Humidity absorption, 2mm	ISO 62	2		%
Water Absorption, immersion 24h	ISO 62	1.2		%
Moulding shrinkage, parallel	ISO 294	1.8		%
Moulding shrinkage, normal	ISO 294	1.4		%
Mechanical behavior	Standard	Dry	Wet	Unit
Tensile Modulus	ISO 527	2000	900	MPa
Tensile Strength Yield, 50mm/min	ISO 527	50	43	MPa
Tensile strain Yield, 50mm/min	ISO 527	5.7	3.7	%
Nominal strain at break	ISO 527	40	>50	%
Flexural Modulus	ISO 527	1800	700	MPa
Flexural strength	ISO 527	68	-	MPa
Impact	Standard	Dry	Wet	Unit
Izod Notch Impact 23℃ typeA	ISO 180	80	90	kJ/m
Izod Notch impact -30℃ typeA	ISO 180	20	20	kJ/m
Charpy Notch Impact 23℃ 1eA	ISO 179	80	115	kJ/m²
Charpy Notch Impact -30℃ 1eA	ISO 179	18	17	kJ/m²
Charpy notched Impact 23℃ 1eA	ISO 179	80	90	kJ/m²
Charpy notched Impact -30℃ 1eA	ISO 179	20	20	kJ/m²
Hardness, rockwell, R-Scale	ISO 2039	112	89	kJ/m²
Thermal	Standard	Value		Unit
HDT 0.45MPa	ISO 75	132		°C
HDT 1.8MPa	ISO 75	64		°C
Melting temperature 10℃/min	ISO 11357	263		℃
CLE Flow 23~55℃	ISO 11359	90		E-6/K
CLE xFlow 23~55℃	ISO 11359	90		E-6/K
Glass transition temperature, 10℃/min	ISO 11357	75		℃
Ball pressure test	IEC 60695	220		℃
Flammability	Standard	Value		Unit
Flame Rating All Color 0.81mm	UL94	HB
Flame Rating All Color 1.5mm	UL94	HB
Flame Rating All Color 3.0mm	UL94	HB
GWFI 1.5mm	IEC 60695	725		℃
Limiting Oxygen Index	ISO 4589	20		%
Electrical properties	Standard	Dry	Wet	Unit
Relative permittivity, 100Hz	IEC 62631-2-1	3.2	5.5
Relative permittivity, 1MHz	IEC 62631-2-1	2.9	3.2
Dissipation factor, 100Hz	IEC 62631-2-1	80	1800	E-4
Dissipation factor, 1MHz	IEC 62631-2-1	140	550	E-4
Volume resistivity	IEC 62631-3-1	1E12	1E11	Ohm.m
Surface resistivity	IEC 62631-3-2		1E15	Ohm
Electric strength	IEC 62631-3-1	31		kV/mm
Comparative tracking index	IEC 60112	600
Arc resistance	UL 746B	131		s
High amperage arc ignition resitance, 0.75 mm	UL 746B	200		arcs
High amperage arc ignition resitance, 1.5 mm	UL 746A	200		arcs
High amperage arc ignition category, 0.75 mm	UL 746A	200		class
High voltage arc tracking rate	UL 746A	7.6		mm/min

 Partners

We have established long-term relationships with 80+ well-known  companies around the world

 Warehouse And Shipping

20+ years' experience consultant with a supply chain of 1000+ plastic raw materials in China.

Quantity (tonnes)	1-100	100-300	>300
Lead time (days)	7-10	10-15	To be negotiated

---

References and Notes

1. Celanese,"Zytel ST801 NC010 nylon resin technical data sheet",Celanese corporation, 24/06/2026
