INEOS Terluran GP-22 ABS

Application: ·Auto parts ·Home appliance casing ·E&E housing ·Toys

Melt flow rate: 19 cm³/10min (220℃ 10kg)

Packing: 25KG / Bags

Process: Injection molding

Get Quotation

INEOS Terluran GP-22 ABS Description

Terluran GP-22 is injection molding Acrylonitrile-butadiene-styrene resin pellets ( ABS material ) produced by INEOS Styrolution Group. It can be used for electroplating plastics. The final product has good gloss and surface smoothness, excellent mechanical properties, and is widely used in many fields such as automotive parts, home appliance housings, electronic and electrical equipment housings, toys, etc.

Terluran ABS GP-22 is manufactured in several locations; the product we supply is sourced from INEOS Styrolution Sinopec Advanced Materials (Ningbo) Limited.

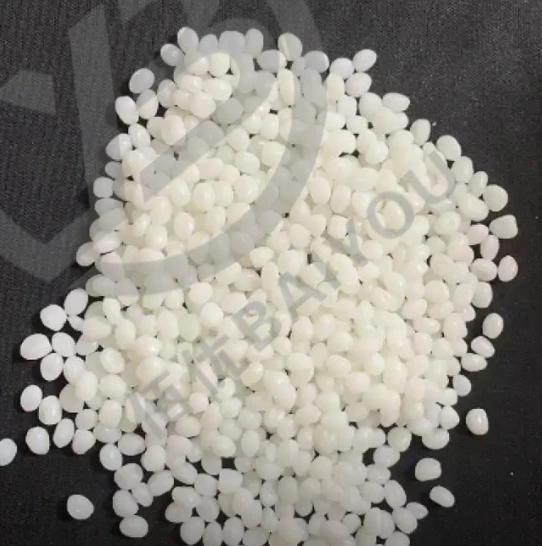

As shown in the image on the left, Terluran GP-22 NR resin is natural ABS with a milky white color and nearly spherical granules. Please contact us if you require a custom color.👉 +86 15837933829

INEOS Terluran GP-22 ABS Advantage

Electroplated ABS. Compared with traditional ABS materials, INEOS Terluran GP-22 ABS has good electroplating performance, and the finished product after electroplating has excellent appearance, In particular, it is used to manufacture showerheads, car door handles, and Christmas ornaments that require electroplating.
Good mechanical properties. As a globally popular ABS material, INEOS GP22 offers excellent and consistent mechanical properties, with a tensile modulus of 2,300 MPa and a Charpy impact strength of 180 kJ/m² at 23°C. It is suitable for applications requiring moderate impact resistance, such as toys and appliance housings.
Good processability. INEOS Terluran ABS GP-22 has melt volume flow rate (MVR) of 19 cm³/10 min (at 220°C, 10 kg), which represents a moderate flow rate. It is suitable for injection molding and can be used in the vast majority of production equipment.

Why choose Baiyou as INEOS Terluran GP22 ABS supplier?

Leading Terluran ABSresin supplier,20+ years of experience in plastic product manufacturing and chemical raw material import and export
Fastest Arrival, with warehouses in multiple ports
1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
Free Samples for production testing
Wholesale price, even a piece of goods is based on the wholesale price

Key Attributes

INEOS TERLURAN ABS GP 22
Product information
Manufacturer		INEOS Styrolution Group GmbH
Other Certificates		MSDS
Part Marking Code		>ABS material<
Color		Natural color
Material Shape		ABS Pellets
Process		Injection molding ABS material
Flame retardant		HB
Material Attribute		·Injection grade ·Electroplating grade
Features		·Colorable ·High gloss ·Smooth surface finish ·Medium flow ·Good mechanical properties ·High impact ·High stiffness ·High strength ·High heat distortion temperature ·Can be electroplated ·Wide range of applications
Application		·Automotive parts ·E & E housing ·Toys ·Home appliances applications ·Housing sanitary application ·Consumer applications ·General purpose ·Injection molding applications
Physical properties	Standard	Value	Unit
Density	ISO 1183	1040	kg/m³
Shrinkage	ISO 294	0.4-0.7	%
Water absorption	ISO 62	1	%
Humidity absorption	ISO 62	0.22	%
Melt volume flow rate (MVR) 220 ℃ 10kg	ISO 1133	19	cm³/10min
Mechanical behavior	Standard	Value	Unit
Tensile modulus	ISO 527	2300	MPa
Tensile yield stress	ISO 527	45	MPa
Tensile yield strain	ISO 527	2.6	%
Nominal strain at break	ISO 527	10	%
Impact strength (Charpy), 23℃	ISO 179/1eU	180	kJ/㎡
Impact strength (Charpy), -30℃	ISO 179/1eU	22	kJ/㎡
Notched Impact strength (Charpy), 23℃	ISO 179/1eA	8	kJ/m²
Notched Impact strength (Charpy), -30℃	ISO 179/1eA	8	kJ/m²
Thermal	Standard	Value	Unit
Temperature of deflection of under load (1.8MPa)	ISO 75-1/-2	94	℃
Temperature of deflection of under load (0.45MPa)	ISO 75-1/-2	99	°C
Vicat softening temperature, 50℃/h 50N	ISO306	96	°C
Burning Behav. at 1.5mm	UL 94	HB	°C
Burning Behav. at 3.0mm	UL 94	HB	°C
Electrical properties	Standard	Value	Unit
Burning Relative permittivity, 100Hz	IEC 62631-2-1	2.9
Burning Relative permittivity, 1MHz	IEC 62631-2-1	2.8
Dissipation factor, 100Hz	IEC 62631-2-1	48	E-4
Dissipation factor, 1MHz	IEC 62631-2-1	79	E-4
Volume resistivity	IEC 62631-3-1	>1E13	Ohm*m
Surface resistivity	IEC 62631-3-1	1E13	Ohm
Rhelogical calculation properties	Standard	Value	Unit
Density of melt		927	kg/m³
Thermal conductivity of melt		0.202	W/(m K)
Spec. heat capacity of melt		2570	J/(kg K)
Ejection temperature		91	°C
Injection molding		Value	Unit
Dry temperature		80	°C
Dry time		2-4	hr
Melt temperature		220-260	°C
Mould temperature		30~80	°C
