celanese 70g35hsl 35% glass fiber reinforced pa 66 material

Celanese Zytel 70G35HSL PA66 | GF35 reinforced

Process: Injection molding

Material featrue: ·Heat temperature resistance PA 66 material ·Glass fiber reinforced PA 66 material

Package: 25KG/Bag
Get Quotation

 Celanese Zytel 70G35HSL PA66 pellet Description

Zytel 70G35HSL is a high temperature resistant polyamide 66 material (PA 6/6) produced by Celanese. It contains 35% glass fiber reinforcement and has excellent mechanical strength, high temperature resistance, electrical properties and wear resistance. Zytel 70G35HSL also added lubricants and release agents, making it easy to process.

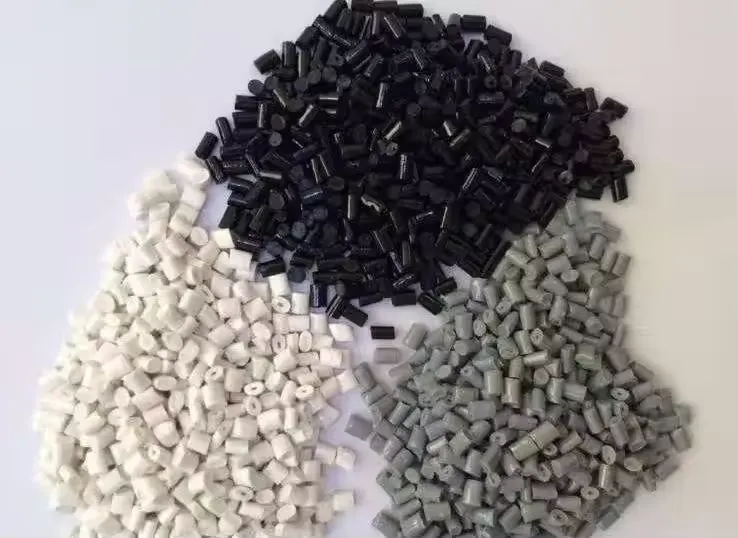

celanese pa66 black

⚠️Please note that Celanese polyamide 6/6 (PA6/6 material) 70G35HSL has two colors. The suffix"NC010"represents the natural color, and"BK039B"represents black. If you need other colors of polyamide resin materials, please contact us.

Celanese Zytel 70G35HSL PA66 pellet Advantage

  • Glass fiber reinforced PA66 material. Zytel 70G35HSL polyamide 6/6 material contains 35% glass fiber, which makes it have stronger high temperature resistance. The heat deflection temperature under 1.8MPa test environment reaches 252℃, and the Vicat softening temperature under 50℃/hr 50N test environment reaches 255℃. It is suitable for applications with more stringent requirements for high temperature resistance.
  • Good processing performance. 70G35HSL PA66 has viscosity number of 145cm³/g, medium flow rate and viscosity, suitable for injection molding processing mode, and can be used for more complex parts manufacturing. It also contains lubricant and mold release agent ingredients to facilitate finished product manufacturing and stripping.

Why choose Baiyou as Celanese Zytel 70G35HSL PA66 pellets supplier?

  • Leading polyamide 66 resin pellet supplier (PA 66 resin) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
  • Fastest Arrival, with warehouses in multiple ports
  • 1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
  • Free Samples for production testing
  • Wholesale price, even a piece of goods is based on the wholesale price
 Key Attributes
Celanese Zytel 70G35HSL PA66
Product information
Manufacturer
Celanese Corporation
Part Marking Code
>PA66 material<
ColorNactural color PA66 / Black PA66
Material Shape
·PA6/6 pellets
Flame retardant·HB
Material Attribute
·35% glass fiber reinforced ·Injection molding grade ·Heat stabilized grade
Specification·UL
Additives·Lubricant ·Mold releases
Physical properties StandardValueUnit
Density
ISO 11831.41
g/cm³
Shrinkage flow ISO 2940.3%
Shrinkage xflow ISO 2941.1%
Water absorption 2.00mmISO 625.5%
Water absorption 24hr in water
ISO 621.1%
Humidity absorption 2.0mmISO 621.7%
Viscosity numberISO 307145cm³/g
Melt density Internal method 1240
kg/m³
HardnessStandardDryWetUnit
Rockwell hardness M(Scale)ISO 203910589
Rockwell hardness R(Scale)ISO 2039125117
Ball indentation hardness H961/30ISO 2039285MPa
Mechanical behavior
Standard
DryWet
Unit
Tensile modulus
ISO 527110008500
MPa
Tensile strength breakISO 527210140MPa
Elongation breakISO 5273.24.6%
Poisson rationInternal method0.340.34
Tensile creep modulus 1hrISO 8998400
MPa
Tensile creep modulus 1000hrISO 8996000MPa
Flexural strength ISO 178300230
MPa
Flexural modulusISO 17895007500MPa
Izod notch impact 23℃ISO 1801215kJ/㎡
Izod notch impact -30℃ISO 1801010kJ/㎡
Izod notch impact -40℃ISO 18010kJ/㎡
Izod un-notch impact 23℃ISO 18060kJ/㎡
Izod un-notch impact -30℃ISO 18060kJ/㎡
Charpy notch impact 23℃ 1eAISO 1791518kJ/㎡
Charpy notch impact -30℃ 1eAISO 1791010kJ/㎡
Charpy un-notch impact 23℃ISO 17990100kJ/㎡
Charpy un-notch impact -30℃ISO 1798080kJ/㎡
Puncture resistance energy 23℃ISO 66036J
Thermal
Standard
DryWet
Unit
HDT 1.8MPa
ISO 75252
℃
HDT 0.45MPaISO 75261℃
Vicat softening temperature 50℃/50N ISO 306255℃
Melt temperature 10℃/minISO 11357262℃
Glass transition temperature 10℃/minISO 113577020℃
CLE flow ISO 113591.7E-5
m/m/K
CLE xflow ISO 113598.5E-5m/m/K
Heat conductivity coefficient melt Internal method 0.24W/(m·K)
Specific heat meltInternal method 2130J/(kg·K)
Thermal diffusivityInternal method 9.5E-8㎡/s
Electrical properties
Standard
DryWet
Unit
Volume resistivity
IEC 626311E+13W1E9e
Ω·m
Surface resistivityIEC 62631-3-21E+13Ω
Dielectric strength
IEC 602433631
KV/mm
Dielectric constant 1MHzIEC 62631-2-14.14.7

Dissipation factor 1MHzIEC 62631-2-10.0140.062
CTIIEC 60112400V
Flammability
Standard
Value
Unit
Flame rating natural color / Black 0.7mm
UL94
HB

Flame rating natural color / Black 1.5mmUL94HB
Flame rating natural color / Black 3.0mmUL94HB
GWFI 2mmIEC 60695650℃
GWFI 3mmIEC 60695750℃
Limiting oxygen indexISO 458924%
Burning rate 1.0mmISO 379526
mm/min
VDAStandardValueUnit
Fogging G-value condensateISO 64520.5mg
OdourVDA 2703class
Injeciton molding StandardValueUnit
Dry temperature80℃
Dry time2~4hr
Water content control≤0.2%
Melt temperature optimum295℃
Min. melt temperature285℃
Max. melt temperature305℃
Mould temperature100℃
Min. mould temperature70℃
Max. mould temperature120℃
Screw speed0.2m/s
Holding pressure50~100MPa
Hold pressure time3s/mm
Ejection temperature210℃
⚠️The technical data sheet of Celanese Zytel 70G35HSL polyamide 6/6 material, from Celnanese corporation, if there are differences, please refer to the official website of Celanese.
