Celanese Zytel 101L NC010 PA66

Material attribute: Lubricant agent

Viscosity Number: 150

Water Absorption: 8.5 %

Packing: 25KG / Bag

Process: Injection molding

Get Quotation

Celanese Zytel 101L NC010 PA66 Description

Zytel 101L is general purpose grade of polyamide66 (PA 66, or nylon 66) manufactured by Celanese Polymers. It contains a lubricant to facilitate manufacturing. Commonly used in the production of automotive parts, it has been certified for nylon use by several automotive manufacturers.

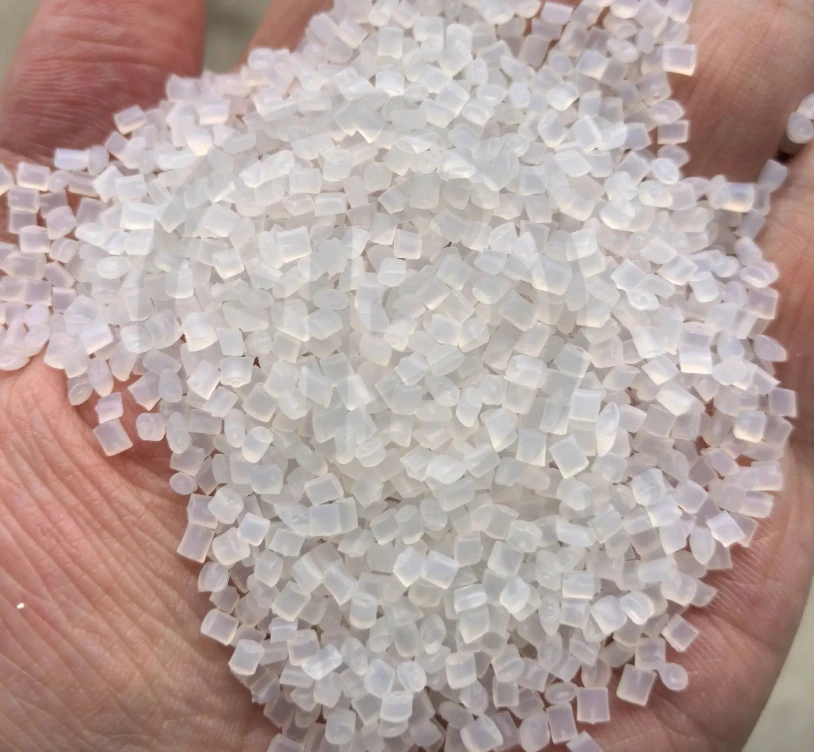

Celanese Zytel 101L lubricated nylon is available in two standard colors: Zytel 101L NC010 (natural) and Zytel 101L BKB080 (black). We can supply both colors. The standard Zytel 101L NC010 (natural), as shown in the image on the left, is supplied as cylindrical pellets and is a semi-translucent white color.

If you need customized colors, please contact us.👉+86 15837933829

Celanese Zytel 101L PA66 Advantage

Automotive application Nylon material, Zytel 101L NC010 has met the certification requirements for nylon 66 set by automakers including BMW, Hyundai, Mercedes-Benz, the Volkswagen Group, and Stellantis (including Chrysler), and is suitable for automotive applications.
Better processability, Compared to the more commonly used Zytel 101 nylon material, Zytel 101L NC010 PA 66 contains release agent that reduces nylon residue in the mold, facilitating large-scale, high-speed production of products.

Why choose Baiyou as Celanese Zytel 101L NC010 PA66 supplier?

Leading polyamide resin supplier (PA66 / nylon 66) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
Fastest Arrival, with warehouses in multiple ports
1,000+ types of resin products are available, and we have cooperated with large petrochemical groups for 30+ years
Free Samples for production testing
Wholesale price, even a piece of goods is based on the wholesale price

Key Attributes

Celanese Zytel 101L NC010 PA66
Product information
Manufacturer		Celanese Corporation
Part Marking Code		>PA66 material<
Color		Nactural Color
Material Shape		Nylon66 Pellets
Process		Injection molding nylon66
Automotive Certificated		·BMW GS93016-PA66 ·Hyundai MS211-37 Type D· Hyundai MS211-46 Type E ·Mercedes-Benz DBL5409.20 PA66 ·Stellantis B62 0300 / 61/212E/210M ·Stellantis MS.50017 / PA66.2800F.5I ·Stellantis - Chrysler MS.50017 / CPN-1938 ·Stellantis - Chrysler MS.50017 / CPN-5308 ·VW Group VW 50127 PA66-1 ·VW Group VW 50133 PA66-1-A
Flame retardant		V-2
specification		UL UL-746C F1
Features		·Unreinforeced ·Lubricated
Additives		·Lubricant Mold Releases
Physical properties	Standard	Value		Unit
Viscosity number	ISO 307	150		cm³/g
Density	ISO 1183	1.14		g/cm³
Shrinkage Flow	ISO 294	1.4		%
Shrinkage xFlow	ISO 294	1.4		%
Water Absorption 2.00mm	ISO 62	8.5		%
Water Absorption 24hr 1.00mm	ISO 62	4.2		%
Humidity Absorption 2.00mm	ISO 62	2.6		%
Melt index	ISO 1133	24		g/10min
Viscosity number 96% H₂SO₄	ISO 307	150		cm³/g
Melt index	ISO 1183	970		kg/m³
Hardness	Standard	Dry	Wet	Unit
Rockwell Hardness M(Scale)	ISO 2039	79	59
Rockwell Hardness R(Scale)	ISO 2039	121	108
Ball indentation Hardness H358/30	ISO 2039	180	85	MPa
Ball indentation Hardness H961/30	ISO 2039	160		MPa
Mechanical behavior	Standard	Dry	Wet	Unit
Tensile Modulus	ISO 527	3100	1400	MPa
Tensile Strength Yield	ISO 527	82		MPa
Elongation Yield	ISO 527	4.5	25	%
Elongation Break	ISO 527	25	50	%
Elongation Break 23°C 50mm/min	ISO 527	45		%
Elongation Flow Yield	ISO 527	4.5	25	%
Poisson Ratio	ISO 527	0.37	0.43
Tensile Creep Modulus 1hr	ISO 899		1400	MPa
Tensile Creep Modulus 1000hr	ISO 899		820	MPa
Flexural Strength	ISO 178	90	54	MPa
Flexural Modulus	ISO 178	2800	1200	MPa
Izod Notch Impact 23℃	ISO 180	5.5	12	kJ/m
Izod Notch impact -30℃	ISO 180	5.5	3	kJ/m
Izod Notch impact -40℃	ISO 180	5.5	3	kJ/m
Izod Un-notch impact 23℃	ISO 180	NB	NB	kJ/m
Izod Un-notch impact -30℃	ISO 180	300	NB	kJ/m
Charpy Notch Impact 23℃	ISO 179	5.5	15	kJ/m²
Charpy Notch Impact -30℃	ISO 179	4.5	3	kJ/m²
Thermal	Standard	Value		Unit
Heat deflection temperature 0.45MPa	ISO 75	190		°C
Heat deflection temperature 1.8MPa	ISO 75	70		°C
Vicat softening temperature 50℃/hr 50N	ISO 306	240		℃
Melting temperature 10℃/min	ISO 11357	262		℃
Glass transition temperature 10℃/min	ISO 11357	65		℃
CLE Flow	ISO 11359	1E-4		m/m/K
CLE xFlow	ISO 11359	1.1E-4		m/m/K
Flammability	Standard	Value		Unit
GWFI 0.75mm	IEC 60695	725		℃
GWFI 1.5mm	IEC 60695	750		℃
GWFI 3.0mm	IEC 60695	960		°C
GWFI 0.75mm	IEC 60695	960		℃
GWFI 1.5mm	IEC 60695	960		℃
GWFI 3mm	IEC 60695	960		℃
Flame Rating All Color 0.71mm	UL94	V-2
Flame Rating All Color 1.5mm	UL94	V-2
Flame Rating All Color 3.0mm	UL94	V-2
Flame Rating All Color 6.0mm	UL94	V-2
Limiting Oxygen Index	ISO 4589	28		%
FMVSS Class	ISO 3795	DNI
