Celanese Santoprene 101-87 TPV

Material attribute: ·High hardness ·High tensile strength

Package: 25 KG/Bag

Get Quotation

Celanese Santoprene 101-87 TPV Description

Santoprene 101-87 is a thermoplastic vulcanizate (TPV) polymer manufactured by Celanese Corporation. It combines the flexibility and tactile feel of rubber with the ease of processing characteristic of thermoplastic resins. This material is a rigid TPV that offers high strength and tensile capacity, and is commonly used in household appliances, automotive applications, and cushioning and sealing components in the construction industry.

The Santoprene 101-87 thermoplastic vulcanized rubber we supply is manufactured by Celanese Engineering Plastics, a U.S.-based company.

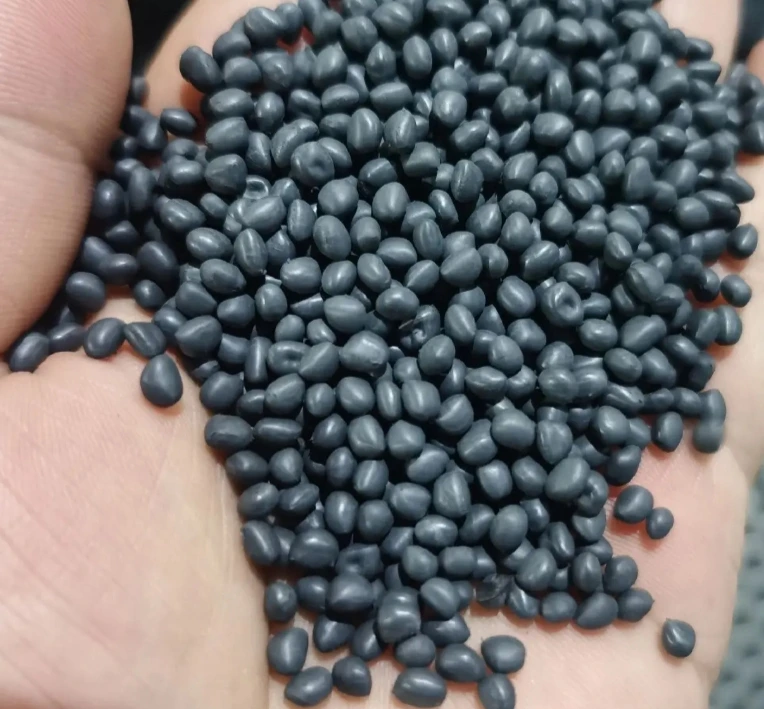

As shown in the image on the left, Santoprene 101-87 TPV material consists of black, roughly ellipsoidal pellets. Please contact us if you require a custom color.

Celanese Santoprene 101-87 TPV Advantage

High strength TPV, As the hardest material in the Santoprene 101 TPV series, 101-87 TPV has a Shore hardness of 94, gives it high strength and excellent fatigue resistance, with a tensile strength of 15.6 MPa, making it particularly suitable for applications involving long-term loading.
Automotive certification, Santoprene 101-87 TPV material with its outstanding performance, has been certified by several automakers, including Chrysler, Ford, and General Motors, and is approved for direct use in automotive applications.
Good machinability. Santoprene 101-87 TPV has an elongation at break of 600% and a tear strength of 51 kN/m, and its flexibility is comparable to that of traditional vulcanized rubber, however, what sets it apart is that 101-87 TPV material can be used to produce seals with complex cross-sections using standard thermoplastic processing equipment.

Why choose Baiyou as Celanese Santoprene 101-87 TPV supplier?

Leading Thermoplastic Vulcanized Rubber resin supplier (TPV material) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
Fastest Arrival, with warehouses in multiple ports
1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
Free Samples for production testing
Wholesale price, even a piece of goods is based on the wholesale price

Key Attributes

Celanese Santoprene 101-87 TPV
Product information
Manufacturer		Celanese Corporation
Other Certificates		MSDS
Part Marking Code		>TPV material<
Color		Black
Material Shape		TPV pellets
Process		·Blow molding ·Coextrusion ·Extrusion ·Extrusion blow molding ·Injection blow molding ·Injection molding ·Multi injection molding ·Profile extrusion ·Sheet extrusion ·Thermoforming ·Vacuum forming
Features		·High hardness ·High tensile modulus
Applications		·Appliance components ·Automotive applications ·Automotive under the hood ·Consumer applications ·Diaphragms ·Electrical parts ·Living hinges ·Outdoor applications ·Tubing
Automotive		·Chysler MS-AR-100 EGN ·FORD WSD-M2D382-A1 ·GM GMW 15813, Type 8
Physical properties	Standard	Value	Unit
Density	ISO 1183	950	kg/m³
Density	ASTM D792	0.95	g/cm³
Outdoor stability	UL 746C	f1
Detergent resistance	UL 749	f3
Detergent resistance	UL 2157	f4
Hardness	Standard	Value	Unit
Shore A hardness -TPE, 15s	ISO 868	94
Mechanical behavior	Standard	Value	Unit
Tensile stress at 100%, perpendicular	ASTM D412	6.93	MPa
Tensile stress at 100%, perpendicular	ISO 37	6.93	MPa
Tensile strength at break elast, perpendicular	ASTM D412	15.6	MPa
Tensile strength at break elast, perpendicular	ISO 37	15.6	MPa
Elongation at break elast, perpendicular	ASTM D412	597	%
Elongation at break elast, perpendicular	ISO 37	597	%
Tear strength, Method Ba, perpendicular	ISO 34-1	51	kN/M
Compression set, 70℃, 22h, Type 1, Method B	ASTM D395	37	%
Compression set, 70℃, 22h, Type A	ISO 815	37	%
Compression set, 125℃, 22h, Type 1, Method B	ASTM D395	52	%
Compression set, 125℃, 22h, Type A	ISO 815	52	%
Thermal	Standard	Value	Unit
Brittleness temperature	ASTM D746	-54	°C
RTI Elec	UL 746	90	°C
RTI Str, 1.0 mm	UL 746	90	°C
RTI Str, 1.5 mm	UL 746	90	°C
RTI Str, 3.0 mm	UL 746	95	°C
Electrical	Standard	Value	Unit
Volume resistivity	IEC 60093	>1.E+15	Ω.cm
Surface resistivity, ROA	IEC 60093	>1.E+15	Ω
Dielectrics strength, 2.0 mm	ASTM D149	30	kV/mm
Dielectrics constant 60 Hz, 1.98 mm	ASTM D150	2.6
Dielectrics constant 60 Hz, 1.98 mm	IEC 60250	2.6
Comparative tracking index	UL 746	PLC 0
High amp arc tracking index	UL 746	PLC 0
High voltage arc reistance to ignition (HVAR)	UL 746	PLC 5
High voltage arc tracking rate (HVAR)	UL 746	PLC 1
Hot-wire ignition (1.0 mm)	UL 746A	PLC 4
Hot-wire ignition (1.5 mm)	UL 746A	PLC 3
Hot-wire ignition (3.0 mm)	UL 746A	PLC 2
Flame retardant	Standard	Value	Unit
Flame rating, 1.0 mm	UL 94	HB
Flame rating, 1.5 mm	UL 94	HB
Flame rating, 3.0 mm	UL 94	HB
Aging	Standard	Value	Unit
Change in tensile strength in air @ 150 C, 168 h	ASTM D573	-10.9	%
Change in tensile strength in air @ 150 C, 168 h	ISO 188	-10.9	%
Change in ultimate elongation in air @ 150 C, 168 h	ASTM D573	-18	%
Change in tensile strain at break in air @ 150 C, 168 h	ISO 188	-18	%
Change in durometer hardness in air @ 150 C, 168 h	ASTM D573	0.9
Change in shore hardness in air @ 150 C, 168 h	ISO 188	0.9
Continuous upper temperature resistance (CUTR) @ 1008 h	ISO 188	135	℃
Extrusion molding guidance	Standard	Value	Unit
Drying temperature		82	℃
Drying time		3	hrs
Melt temperature		204	℃
Die head temperature		210	℃
Back pressure		5-20	MPa
Injection molding guidance	Standard	Value	Unit
Drying temperature		82	℃
Drying time		3	hrs
Necessary low maximum residual moisture content		0.08	%
Suggested maximum regrind		20	%
Melt temperature		204-232	℃
Nozzle temperature		199-235	℃
Front - Zone 3 temperature		193	℃
Middle - Zone 2 temperature		188	℃
Rear- Zone 1 temperature		182	℃
Mold temperature		10-52	℃
Injection speed		fast
Screw speed		0.345-0.689	MPa
Clamp tonnage		100-200	MPa
Cushion		41-69	mm
Screw L/D		20:1
Screw compression ratio		2.5:1
Vent depth		0.025	mm
