Hyosung Topilene R200P PP | PPR

Application: PPR pipe, Fittings, Hot water pipe

Melt flow rate: 0.25 g/10min

Density: 0.90 g/cm³

Packing: 25KG / Bag

Process: Extrusion molding

Get Quotation

Hyosung Topilene R200P PP Description

Topilene R200P is extruded moldable random polypropylene (PPR resin material) manufactured by Hyosung, South Korea. It has properties such as impact resistance, resistance to high temperatures and chemical solvents. Due to R200P polypropylene's good thermal stability, it can be used to produce hot water transportation pipes and radiator connectors.

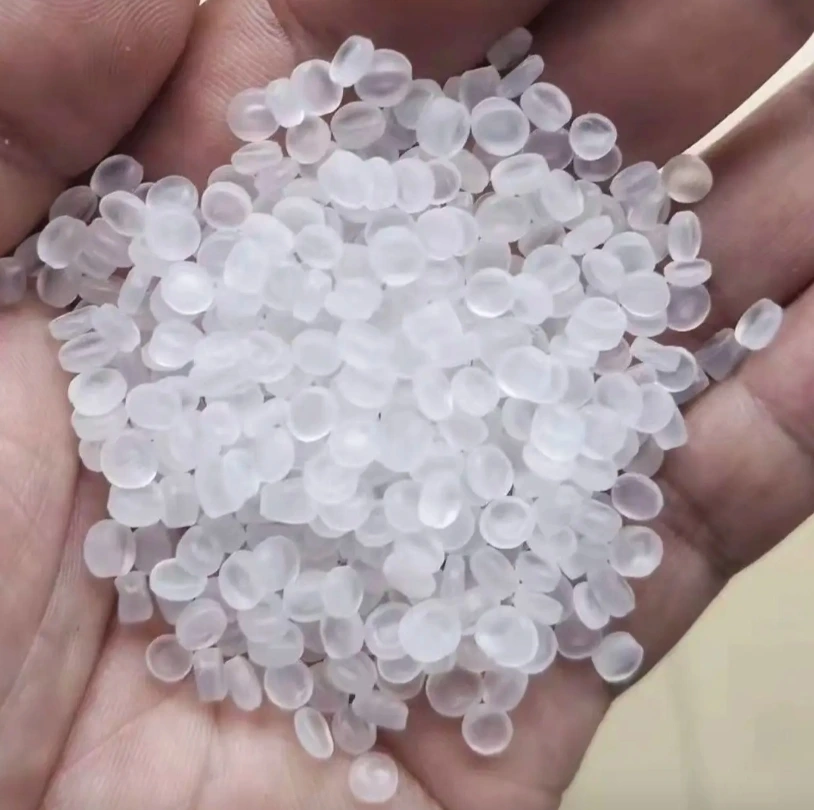

The Hyosung R200P PP resin we supply is sourced from Korea Hyosung Chemical Corporation. As shown in the image on the left, it comes in the form of translucent, disc-shaped pellets. Please contact us if you require a custom color.

Hyosung Topilene R200P PP Advantage

Drink water supplier pipe material. Hyosung R200P, a PP material suitable for drinking water supply, complies with multiple food and drinking water contact certifications, including: FDA 21 CFR 177.1520and(EU) No. 10/2011 food contact certification, as well as DVGW W270/KTW guidelines and GB/T 17219 for drinking water systems. It offers excellent safety performance and is suitable for use in food contact and drinking water distribution applications.
Good long-term hydrostatic strength. As an excellent material for PPR pipes, Hyosung Topilene R200P has good impact resistance and long-term hydrostatic strength. It meets the strength requirements for PP hot and cold water supply piping and complies with multiple standards, including DIN 8078,ISO/DIS 15874,GB/T 18742.2, and KS M 3362, making it safe for use in water supply systems.

Why choose Baiyou as Hyosung Topilene R200P PP supplier?

Leading polypropylene random copolymer resin supplier (PPR material) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export

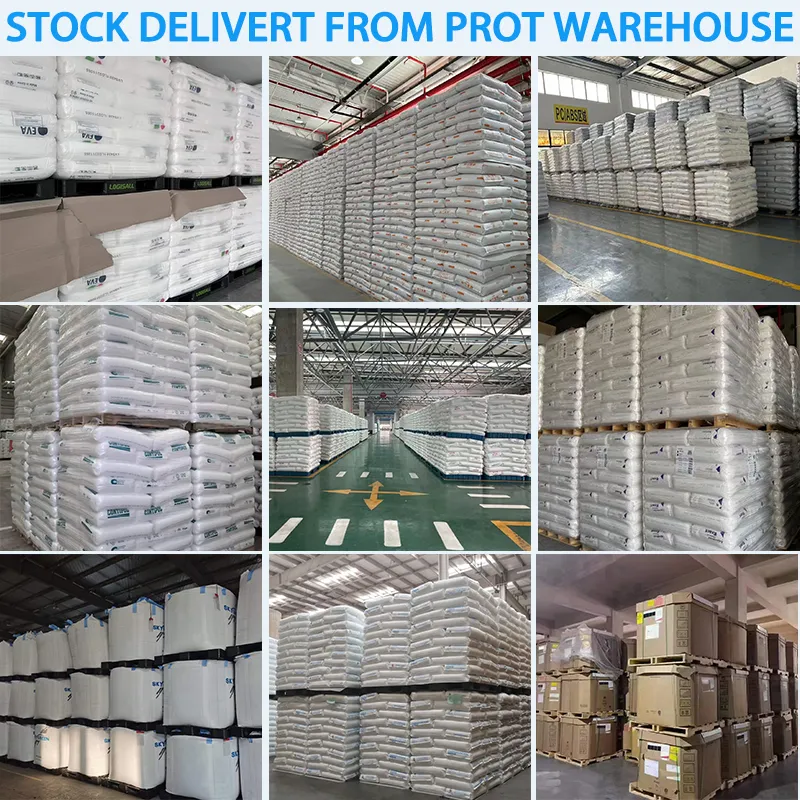

Fastest Arrival, with warehouses in multiple ports
1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
Free Samples for production testing
Wholesale price, even a piece of goods is based on the wholesale price

Key Attributes

Hyosung TOPILENE® PP R200P
Product information
Manufacturer		Hyosung Corporation
Other Certificates		RoHS MSDS
Part Marking Code		>PPR material<
Color		Natural color
Material Shape		PP Pellets
Process		Extrusion molding PP
Polymer		Random Copolymer
Material Attribute		·Heat stabilized PP ·Drinking water contact PP ·Food Contact PP
specification		·DIN 8078 DVGW W270 EN ISO 15874 EU 10/2011 ·FDA 21 CFR 177.1520 GB/T 18742 GB/T17219-1998 NSF/ANSI 14
Features		·Balanced stiffness/impact ·Long-term hydrostatic strength ·Chemical Resistant ·Environmentally sound ·Good processability
Application		·Radiator connectors ·PPR pipe ·Fittings ·Cold water pipe appication ·Hot water pipe appication
Additives		Antioxidant Erucamide slip
Physical properties	Standard	Value	Unit
Density	ASTM D792	0.9	g/cm³
Melt Index 230°C 2.16kg	ASTM D1238	0.25	g/10min
Hardness	Standard	Value	Unit
Rockwell Hardness R(Scale)	ASTM D785	75
Mechanical behavior	Standard	Value	Unit
Tensile Strength Yield	ASTM D638	270	kg/cm²
Flexural Modulus	ASTM D790	9000	kg/cm²
Izod Notch Impact 23°C	ASTM D256	NB	kg-cm/cm
Izod Notch Impact -10°C	ASTM D256	5	kg-cm/cm
Thermal	Standard	Value	Unit
Heat deflection temperature (HDT)	ASTM D648	90	°C
Vicat Softening Temperature	ASTM D1525	130	°C
Extrusion molding	Standard	Value	Unit
Zone 1 Temperature		160~180	°C
Zone 2 Temperature		180~210	°C
Zone 3 Temperature		180~210	°C
Head Temperature		180~210	°C
Melt Temperature		200~220	°C
Cooling Temperature		20~30	°C

⚠️The technical data sheet (TDS) of Hyosung R200P PPR pipe from Hyosung corporation, if there are differences, please refer to the official website of Hyonsung.
