COVESTRO BAYBLEND FR 3010 PC+ABS
bayblend fr3010 polycarbonate+abs pellet

Covestro Bayblend FR3010 PC/ABS

Material attribute: ·Flame retardant ·UL 04 V-0

Application: General purpose grade

Melt volume rate: 15 cm³/10min (240℃ 5kg)
Get Quotation

 Covestro Bayblend FR3010 PC/ABS Description

Bayblend FR3010 is Polycarbonate + Acrylic Butadiene Styrene blend material (PC + ABS resin) produced by Covestro AG. Its melt index is 15 cm³/10 min(240℃ 5kg), making it suitable for injection molding. It contains release agent, making it easy to process, also contains flame retardant, achieving UL94 V-0, 5VA, and 5VB ratings, offering high heat resistance.
covestro bayblend fr 3010 FR PC/ABS

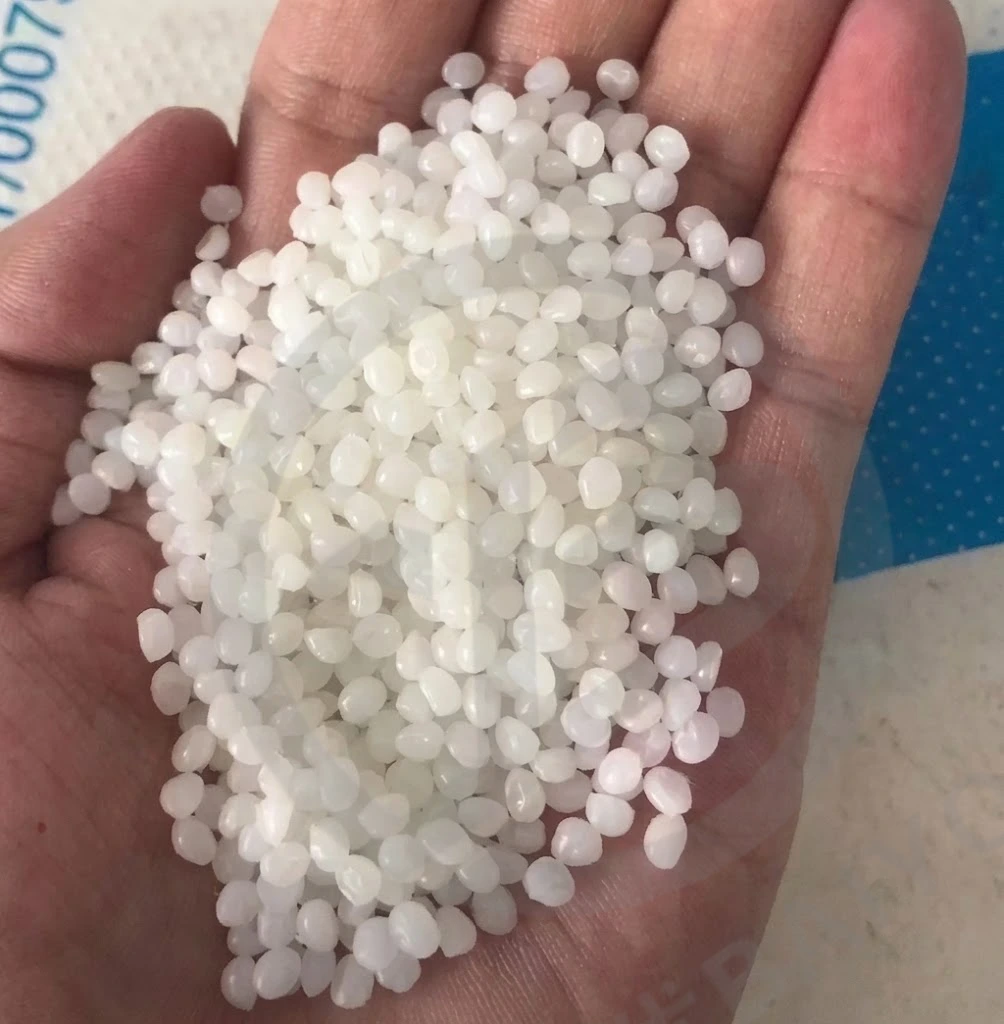

The Bayblend FR 3010 PC ABS alloy material we supply is sourced from Covestro Investment (Shanghai) Company. The standard color for Bayblend FR 3010 00000 is a natural, opaque milky white, and as shown in the image on the left, the pellets are approximately ellipsoidal in shape.

As a long-term partner of Covestro Investment (Shanghai) and a major distributor of its products, we maintain inventory of Bayblend FR 3010 PC/ABS at our warehouses in Shanghai, Qingdao, Guangzhou, Dongguan, Shenzhen, and Hong Kong. Please feel free to contact us for more information.👉+86 15837933829

Covestro Bayblend FR3010 PC/ABS Advantage

  • Flame retardant plastic. Bayblend FR 3010 PC ABS alloy contains flame retardants that achieve a UL 94 V-0 rating at a thickness of 1.5 mm and a 5VA rating at a thickness of 3.0 mm. It is suitable for use in the housings of small appliances, mechanical equipment, and automotive parts that require high-performance flame retardancy.
  • High heat resistance PC ABS alloy. Compared to conventional ABS materials, Bayblend FR 3010 offers superior heat resistance, with a heat deflection temperature of 100°C under test conditions of 0.45 MPa and a Vicat softening temperature of 108°C at 50 N and 50°C/h. It is suitable for high-temperature applications such as automotive air intake grilles, air conditioning vents, and automotive center console panels.

Why choose Baiyou as Covestro Bayblend FR3010 polycarbonate+ABS supplier?

  • Leading Polycarbonate + Acrylonitrile Butadiene Styrene blend resin material supplier (PC/ABS resin) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
  • Fastest Arrival, with warehouses in multiple ports
  • 1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
  • Free Samples for production testing
  • Wholesale price, even a piece of goods is based on the wholesale price
 Key Attributes
Covestro Bayblend FR3010 PC/ABS
Product information
Manufacturer
Covestro AG
Part Marking Code
>PC/ABS material<
Material Shape
PC/ABS pellets
Process
Injection molding PC+ABS material
Flame Retardant
V-1 V-0 5VB 5VA
Material Attribute
·Non halogen ·Heat resistant grade
SpecificationUL
Features
·Unreinforced ·Stress crack resistance ·Chemical Resistant
Additives
·Mold Release ·Flame retardant
Physical property
Standard
Value
Unit
Density
ISO 1183
1180
kg/m³
Shrinkage Flow 150*105*3MM 240℃ mold temperature :80℃ISO 25770.5-0.7%
Shrinkage xFlow 150*105*3MM 240℃ mold temperature :80℃ISO 25770.5-0.7%
Water absorption 23℃ saturation in waterISO 620.5%
Water absorption 23℃ 50RH EquilibriumISO 620.2%
Melt volume rate (MVR), 240℃ 5kgISO 113315cm³/10min
Melt Viscosity 260℃ 1000s⁻¹
ISO 11443
245
Pa·s
Mechanical behavior
Standard
Value
Unit
Tensile Modulus 1.0mm/min
ISO 527
2700
Mpa
Tensile Strength Yield 50mm/min
ISO 527
60
Mpa
Tensile Stress Break 50mm/min
ISO 527
50
Mpa
Elongation Yield strain 50mm/min
ISO 527
4.0
%
Elongation Break strain 50mm/min
ISO 527
50
%
Izod Notch Impact 23°C
ISO 180
35
kJ/㎡
Izod Notch Impact -30℃
ISO 180
10
kJ/㎡
Izod Un-notch impact 23℃
ISO 180
NB
kJ/㎡
Thermal
Standard
Value
Unit
Heat deflection temperature (HDT) 1.8MPa
ISO 75
90
℃
Heat deflection temperature (HDT) 0.45MPa
ISO 75
100
℃
Vicat softending temperature 50℃/hr 50N
ISO 306
108
℃
Vicat softending temperature 120℃/hr 50NISO 306110℃
CLE flow 23-55℃
ISO 113597.6E-5m/m/K
CLE xflow 23-55℃
ISO 11359
8E-5
m/m/K
Electrical properties
Standard
Value
Unit
Volume resistivityIEC 600931E+14Ω.m
Suface resistivityIEC 600931E+16Ω
Dielectric strength 1.0mmIEC 6024335KV/mm
Dielectric Constant 100HzIEC 602503.2
Dielectric Constant 1MHzIEC 602503.1
Dissipation constant 100HzIEC 602500.005
Dissipation constant 1MHzIEC 602500.007
CTI Soltion AIEC 60112350V
Flammability
Standard
Value
Unit
Flame Rating All color 1.5mm
UL94
V-0

Flame Rating All color 2.0mmUL 94V-0 5VB
Flame Rating All color 3.0mmUL94V-0 5VA
Limiting oxygen index method A
ISO 4589
32
%
