ATP 800 contains 5% PTFE lubricated POM material

ATP 800 TFE 5 Z POM | 5 PTFE

Features: Food contact grade; 5% PTFE

Process: Injection Molding / Extrusion Molding

Viscosity: Medium Viscosity

Material Attribute: Heat Stabilized Grade

Additives: Lubricant Mold Releases

Get Quotation

ATP 800 TFE 5 Z POM pellets Description

RTP 800 TFE 5 Z is a PTFE lubricated polyformaldehyde resin pellets (POM material) produced by RTP, provides excellent wear resistance and provides excellent protection for the outer surface of the part to prevent scratches and scuffs, with good resistance to high temperatures, chemical, shrinkage, used in injection molding processing methods, commonly used in the production of bearings, bushings, Gears, pistons, pulleys, seals and other applications that require high friction performance.

ATP 800 TFE 5 Z POM pellets Advantage

Excellent self-lubricating performance. Polyoxymethylene material itself has excellent lubrication performance, dimensional stability, and fatigue resistance, and is widely used in mechanical bearings, gears, and other applications. RTP 800 TFE 5 Z with 5% polytetrafluoroethylene material further enhances self-lubricating performance, reduces friction of finished products, effectively prevents parts from jamming, and extends the service life of parts.
Food contact grade plastic material. RTP 800 TFE 5 Z POM material has obtained FDA ingredient certification and can be used for the manufacture of food contact grade parts, such as food conveyor belt modules, mixer valves, knife seats, gaskets, etc. It is a very safe high-performance POM material that is almost harmless to the human body.

Why choose Baiyou as ATP 800 TFE 5 Z POM pellets supplier?

Leading PTFE lubricated Polyformaldehyde pellets supplier (POM material), 20+ years of experience of plasticizing materials factory

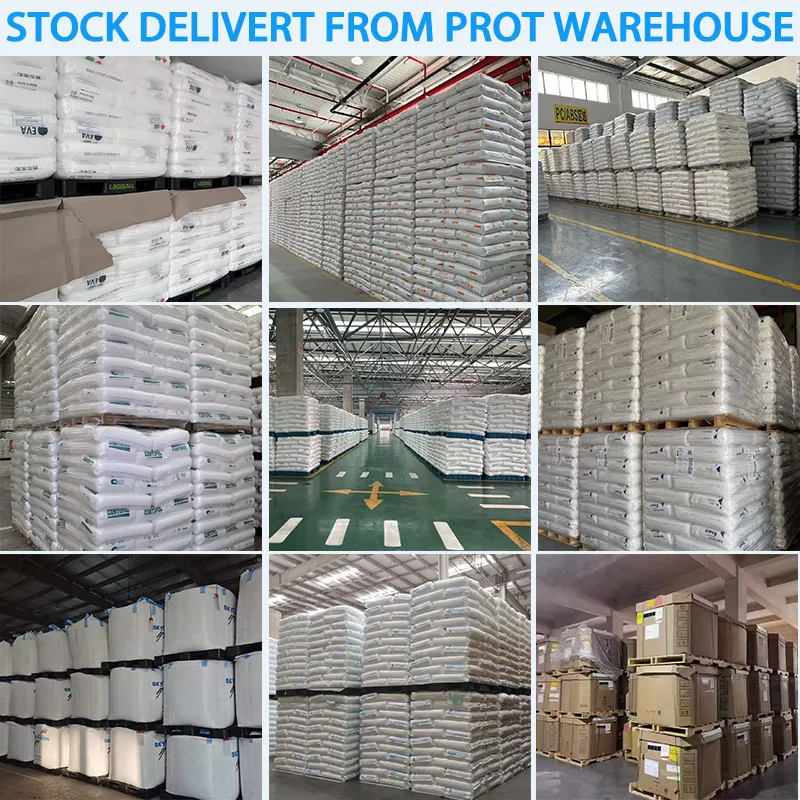

Fastest Arrival, with warehouses in multiple ports
1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
Free Samples for production testing
Wholesale price, even a piece of goods is based on the wholesale price

Key Attributes

Physical properties	Standard	Value	Unit
ATP 800 TFE 5 Z POM
Product information
Manufacturer		RTP company
Part Marking Code		>POM pellets<
Material Shape		POM Pellets
Process		Injection molding POM material
FR		HB
Material Attribute		·5% PTFE filler ·Food contact grade
specification		FDA
Density	ASTM D792	1.43	g/cm³
Shrinkage 3.2mm	ASTM D955	2.00	%
Primary additive		5	%
Mechanical behavior	Standard	Value	Unit
Tensile Modulus	ASTM D638	2620	MPa
Tensile Strength	ASTM D638	55	MPa
Elongation	ASTM D638	10.0	%
Flexural strength	ASTM D790	76	MPa
Flexural Modulus	ASTM D790	2344	MPa
Izod Notch Impact 3.2mm	ASTM D256	69	J/m
Izod Un-notch Impact 3.2mm	ASTM D4812	747	J/m
Thermal	Standard	Value	Unit
HDT 1.8MPa	ASTM D648	110	°C
Flammability	Standard	Value	Unit
Flame Rating 1.5mm	UL94	HB
Injection molding	Standard	Value	Unit
Dry temperature		121	℃
Dry time		2	hr
Water content control		≤0.15	%
Melt temperature		182~218	℃
Mould temperature		79~107	℃
Injection molding		69~103	MPa
Dew point		-32.0	℃
