Celanese Hostaform C13031 POM

Application: Fuel tank caps; Fuel contact application

Melt volume rate (MVR): 12g/10min (190℃ 2.16kg)

Package: 25KG/Bag

Get Quotation

Celanese Hostaform C 13031 POM pellets Description

Hostaform C 13031 is a copolymer of formaldehyde (POM-C) produced by Celanese Corporation. It offers higher strength, stiffness, and hardness, while also being suitable for contact with food and drinking water. It has met the relevant certification requirements for POM materials set by major automakers and is suitable for the manufacture of automotive components, particularly those in contact with automotive fuels.

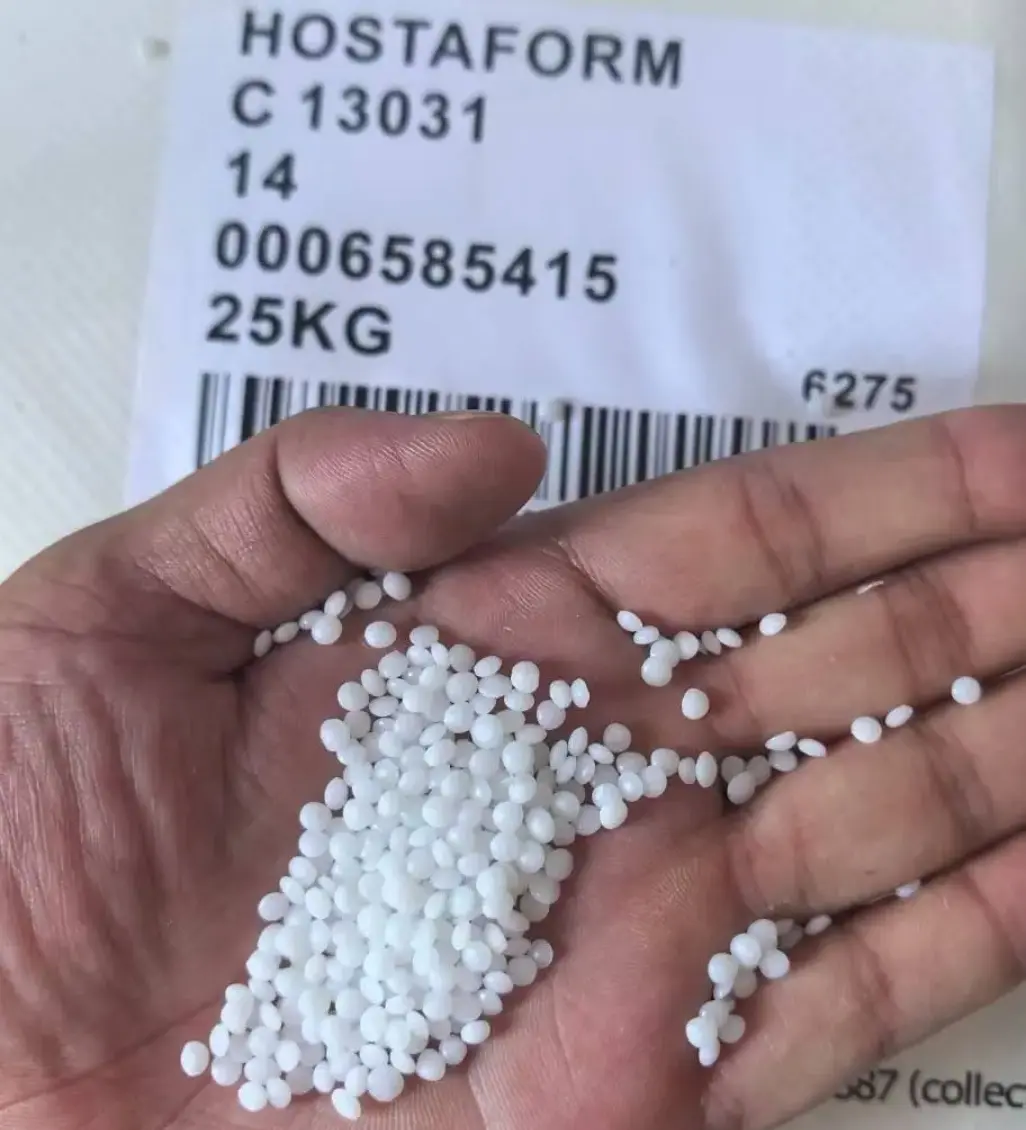

iAs shown in the image on the left, Hostaform C 13031 POM Natural is a milky white granule. Hostaform C 13031 POM Black is also available. If you require POM material in other custom colors, please contact us.

Celanese Hostaform C 13031 POM pellets Advantage

Higher strength. Compared to conventional formaldehyde-copolymer materials, C 13031 POM has a tensile modulus of 3050 MPa and a tensile stress at yield of 68 MPa. With its higher mechanical strength, it is suitable for the production of high-load components such as high-rigidity structural parts, gears, and precision machined parts.

Performance	Hostaform C 13031	Hostaform C 9021	Test standard	Unit
Tensile modulus	3050	2750	ISO 527	MPa
Tensile stress at yield, 50 mm/min	68	63	ISO 527	MPa
Flexural modulus, 23℃	3000	2700	ISO 527	MPa
Ball indentation hardness, 30s	156	145	ISO 527	MPa

Table 1. Key Performance Differences Between Hostaform C 13031 and Hostaform C 9021 POM

Automotive applications POM, As a POM material specifically designed for automotive applications, Hostaform C 13031 has met the material certification requirements of numerous automakers, including Bosch, Chrysler, Continental, Ford, GM, Daimler, PSA, Renault, and VW/Audi, and can be used with confidence in automotive applications, due to its excellent fuel resistance, it is particularly suitable for automotive fuel-contact applications.
Better liquidity, Compared to the commonly used Hostaform C 9021 POM, which has a melt volume rate (MVR) of 9 cm³/10 min at 190°C and 2.16 kg, Hostaform C 13031 achieves an MVR of 12 cm³/10 min. Its higher flow rate makes it suitable for the production of precision, complex, and thin-walled mechanical parts.

Why choose Baiyou as Celanese Hostaform C 13031 POM pellets supplier?

Leading copolymer acetal resin pellets supplier(POM-Cmaterial), 20+ years of experience of plasticizing materials factory
Fastest Arrival, with warehouses in multiple ports
1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
Free Samples for production testing
Wholesale price, even a piece of goods is based on the wholesale price

Key Attributes

Product information
Celanese Hostaform C 13031
Manufacturer		Celanese Corporation
Part Marking Code		>POM material<
Material shape		POM pellets
Mater shape		Injection molding POM material
Polymer		Acetal Copolymer
Material attribute		·High heat resistance grade ·Hydrolysis stabilized grade ·Food contact grade
Specification		·FDA 21 CFR 177.2470 ·UL
Auto approvals		·Bosch N28 BN22-O025(NAT & BLK) ·Chrysler (FCA) CPN 4270 Natural ·Continental TST N 055 54.11 / TST N 055 54.11-001 / TST N 055 54.30 ·Daimler Fuel (NAT & BLK) ·FORD WSK-M4D635-A2 NAT & BLK 12 ·GM GMW22P-POM-C3 NATURAL ·PSA FTM 69 0008 / 01994_14_00057 ·Renault PMR2020(UB03f) ·VW/Audi TL 52636-A, -C
Features		·High flow ·High hardness ·High stiffness ·High strength ·Alkali - resisting ·Antioxidant ·Chemical resistant ·Fuel resistant ·Solvent resistant ·Unfilled
Application		·Fuel contact applications
Additives		Mold releases
Physical properties	Standard	Value	Unit
Density	ISO 1183	1.41	g/cm³
Shrinkage flow	ISO 294	2.0	%
Shrinkage xflow	ISO 294	1.8	%
Water absorption 23℃ saturation	ISO 62	0.65	%
Humidity absorption 23℃ 50RH	ISO 62	0.2	%
Melt index 190℃ 2.16kg	ISO 1133	12	cm³/10min
Hardness	Standard	Value	Unit
Ball indentation hardness 30s	ISO 2039	156	MPa
Mechanical behavior	Standard	Value	Unit
Tensile modulus	ISO 527	3050	MPa
Tensile modulus yield 50mm/min	ISO 527	68	MPa
Elongation yield 50mm/min	ISO 527	8	%
Elongation break 50mm/min	ISO 527	28	%
Tensile creep modulus 1hr	ISO 899	2750	MPa
Tensile ceep modulus 1000hr	ISO 899	1450	MPa
Flexural modulus 23℃	ISO 178	3000	MPa
Charpy notch impact 23℃ 1eA	ISO 179	6.7	kJ/㎡
Charpy notch impact -30℃ 1eA	ISO 179	6	kJ/㎡
Charpy un-notch impact 23℃	ISO 179	200	kJ/㎡
Charpy un-notch impact -30℃	ISO 179	200	kJ/㎡
Thermal	Standard	Value	Unit
Heat Deflection Temperature 1.8MPa	IEC 75	107	℃
Heat Deflection Temperature 0.45MPa	IEC 75	161	℃
Vicat softening temperature 50℃/hr 50N	ISO 306	158	℃
Melting temperature 10℃/min	ISO 11357	170	℃
CLE flow	ISO 11359	1.1E-4	cm/cm/℃
Heat conductivity coefficient melt	Internal method	0.155	W/(m·K)
Thermal expension below Tg flow	ISO 11359	45	ppm/K
Thermal expension above Tg flow	ISO 11359	120	ppm/K
Electrical properties	Standard	Value	Unit
Volume resistivity	IEC 60093	1E+12	Ω·cm
Surface resistivity	IEC 60093	1E+14	Ω
Dielectric strength	IEC 60243	35	KV/mm
Dielectric constant 100Hz	IEC 60250	4
Dielectric constant 1MHz	IEC 60250	4
Dissipation factor 100Hz	IEC 60250	0.002
Dissipation factor 1MHz	IEC 60250	0.005
CTI	IEC 60112	600	V
Flammability	Standard	Value	Unit
Flame rating all color 1.5mm	UL94	HB
Flame rating all color 3.0mm	UL94	HB
Injection molding	Standard	Value	Unit
Dry temperature		100~120	℃
Dry time		3~4	hr
Water content control		≤0.15	%
Feeding zone temperature		60~80	℃
Zone1 temperature		170~180	℃
Zone2 temperature		180~190	℃
Zone3 temperature		190~200	℃
Zone4 temperature		190~210	℃
Nozzle temperature		190~210	℃
Cylinder temperature		20~30	℃
Melt temperature		190~220	℃
Mould temperature		80~120	℃
Injection speed		slow~moderate
Back pressure		40	bar
Hot runner temperature		190~210	℃
