polyplastics laperos e130i lcp material

Polyplastics Laperos E130i LCP | GF30

Process: Injection molding

Package: 25KG/ Bag

Material attribute: 30GF reinforced LCP
Get Quotation

 Polyplastics Laperos E130i LCP pellet Description

Polyplastics Vectra E130i injection molding liquid crystal polymer material (LCP resin), containing 30% glass fiber reinforcement, has excellent high temperature resistance and strength. It is commonly used in the production of surface mount technology (SMT applications), automotive parts, and signal base station related components.

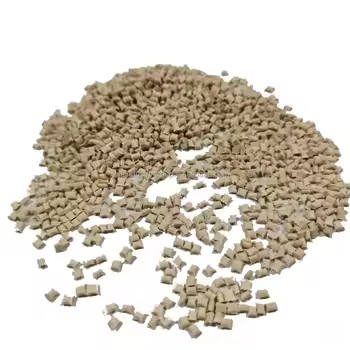

polyplastics laperos e130i gf30 lcp material

⚠️Please note that Polyplastics Laperos E130i liquid crystal polymer (LCP resin) comes in a variety of colors. Please confirm the color you require. E130i VF2201 LCP is natural color, as shown left. E130i BK210P and E130i BK205P are both black. If you have any questions, please contact us.

Polyplastics Laperos E130i LCP pellet Advantage

  • Glass fiber reinforced LCP material, Laperos E130i liquid crystal polymer material contains 30% glass fiber, which gives it better strength and impact resistance. The simple supported beam notched impact under 23℃ test environment reaches 35kJ/㎡
  • Laperos E130i LCP is a naturally flame retardant plastic material that achieves UL94 V-0 flame retardancy even without additional additives. It is suitable for signal base station equipment that requires flame retardancy and long-lasting heat dissipation.
  • Excellent high temperature resistance. Compared with conventional materials, Laperos E130i liquid crystal polymer has better heat resistance. The heat deformation temperature reaches 280℃ under 1.8MPa test environment and 290℃ under 0.45MPa test environment. It can be used in very extreme high temperature environments.

Why choose Baiyou as Polyplastics Laperos E130i LCP pellets supplier?

  • Leading liquid crystal polymer supplier (LCP resin) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
  • Fastest Arrival, with warehouses in multiple ports
  • 1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
  • Free Samples for production testing
  • Wholesale price, even a piece of goods is based on the wholesale price
 Key Attributes
Polyplastics Laperos E130i GF30 LCP
Product information
Manufacturer
Polyplastics co., Ltd.
Part Marking Code
>LCP material<
ColorNC
Material Shape
·Liquid crystal polymer pellets
Flame retardant·V-0
Material Attribute
·30% glass fiber reinforced ·Flame retardant
Specification·UL ·UL-746C F1 ·UL-746C F2
Application
·Automotive parts ·Connector ·E&E applications ·SMT applications ·Terminal block ·SD card slot
·Home appliances applications ·Lighting applications ·Industrial applications ·CPU socket ·SIM Card slot
AdditivesLubricant
Physical property
Standard
Value
Unit
Density
ISO 1183
1.61
g/cm³
Shrinkage flow 80*80*1mm 60MPa Internal method 0.02%
Shrinkage xflow 80*80*1mm 60MPa
Internal method0.54%
Water absorption 23℃ 24hr 1.0mm
ISO 620.03%
Mechanical behavior
Standard
Value
Unit
Tensile strength
ASTM D638175
MPa
ElongationASTM D6382.0%
Flexural strengthISO 178220MPa
Flexural modulusISO 17815000MPa
Flexural strainISO 1782.3%
Charpy notch impact 23℃ISO 17935kJ/㎡
Thermal
Standard
Value
Unit
HDT 1.8MPaISO 75280
℃
HDT 0.45MPaISO 75290
℃
Electrical properties
Standard
Value
Unit
Volume resistivity
IEC 600939E+15
Ω·cm
Dielectric strength 1.0mm
IEC 6024344
KV/mm
Dielectric strength 3.0mmIEC 6024324KV/mm
Dielectric constant 1KHzIEC 602504.3
Dielectric constant 1MHzIEC 602503.8
Dissipation factor 1KHzIEC 602500.02
Dissipation factor 1MHzIEC 602500.03
Arc resistanceASTM D495130s
CTIIEC 60112125V
Flammability
Standard
Value
Unit
Flame rating all color 0.2mm
UL94
V-0

Flame rating all color 0.38mmUL94V-0
Flame rating all color 0.75mmUL94V-0
Flame rating all color 1.5mm
UL94
V-0

Flame rating all color 3.0mmUL 94V-0
⚠️The technical data sheet (TDS) of polyplastics laperos e130i liquid crystal polymer, from Polyplastics ., co ltd, if there are differences, please refer to the official website of Polyplastics.
