Celanese Hytrel 4056 TPEE

Material attribute: ·Low modulus ·Non discolorstabilizer

Process: ·Extrusion ·Compounding

Package: 25 KG/Bag
Get Quotation

 Celanese Hytrel 4056 TPEE Description

Hytrel 4056 is a thermoplastic polyester elastomer manufactured by Celanese Corporation, also known as “TPC-CT” or “TPEE.” It features a low modulus, high flexibility, and high resilience; it is commonly used in the production of cable protective sleeves, hoses, and tubing.
Celanese hytrel 4056 tpc - et resin

Celanese Hytrel 4056 thermoplastic polyester elastomer is manufactured at Celanese’s plant in the United States.

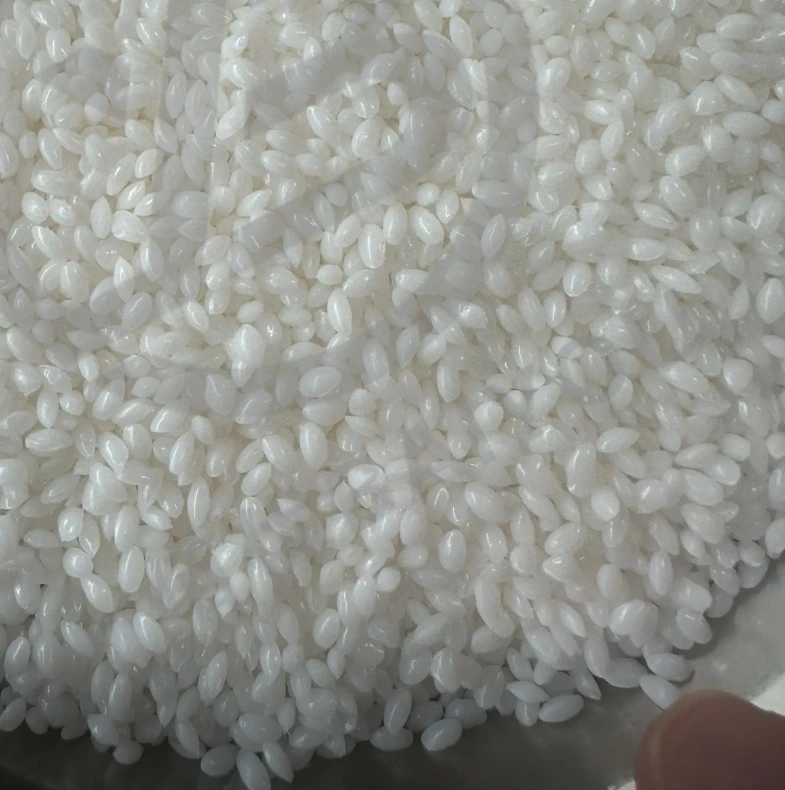

The standard colors are Celanese Hytrel 4056 NC010 (natural-colored TPEE),  as shown in the image on the left, appears as off-white, ellipsoidal pellets; and Hytrel 4056 BK010 (opaque black). Please contact us if you require custom colors.👉+86 15837933829

Celanese Hytrel 4056 TPEE Advantage

  • Highly elastic plastic, Hytrel 4056 TPC-ET has a low modulus—with a tensile modulus of only 60 MPa and a hardness of just 40D—which gives the material excellent resilience, flexibility, and impact resistance. Testing has shown that even at extreme temperatures as low as -40°C, the material does not fracture in Charpy notched impact tests, whether with or without a notch.

Why choose Baiyou as Celanese Hytrel 4056 TPEE supplier?

  • LeadingThermoplastic Polyester Elastomer resin supplier (TPEE material) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
  • Fastest Arrival, with warehouses in multiple ports
  • 1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
  • Free Samples for production testing
  • Wholesale price, even a piece of goods is based on the wholesale price
 Key Attributes
Celanese Hytrel 4056 TPEE
Product information
ManufacturerCelanese corporation
Other CertificatesMSDS
Part Marking Code>TPC-ET material<
Color·Natural color ·Black
Material ShapeTPEE Pellets
Process·Extrusion ·Compounding
Features·Low modulus
AdditivesNon-discoloring stabilizer
Applications
·Hose and tubing ·Hose jackets ·Wire and cable jackets ·Film and sheeting ·Belting and seals
·PVC and rubber compound modification.
Physical propertiesStandardValueUnit
Density  ISO 1183 1160kg/m³
Density of melt1020kg/m³
Melt volume flow rate, MVR at 190℃/2.16kg ISO 1133  5
cm³/10min
Melt mass flow rate, 190℃ 2.16kgh ISO 11335.6g/10min
Molding shrinkage, parallelISO 2940.2%
Molding shrinkage, normalISO 2940.4%
Water absorption, 2 mmISO 620.7%
Water absorption, immersion 24hISO 620.6%
Humidity absorption, 2 mmISO 620.2%
Mechanical behaviorStandardValueUnit
Shore D hardness, 15sISO 4837
Shore D hardness, maxISO 86843
Tensile modulusISO 52760 MPa
Stress at 5% strainISO 5272.4 MPa
Stress at 10% strainISO 5274.6 MPa
Stress at 50% strainISO 5278.4 MPa
Stress at breakISO 52722 MPa
Nominal strain at breakISO 527500%
Strain at breakISO 527300%
Flexural modulusISO 17860MPa
Tensile creep modulus, 1hISO 89954MPa
Tensile creep modulus, 1000hISO 89940MPa
Charpy impact strength, 23℃ISO 179NkJ/㎡
Charpy impact strength, -30℃ISO 179NkJ/㎡
Charpy notched impact strength, 23℃ISO 179NkJ/㎡
Charpy notched impact strength, -30℃ISO 179NkJ/㎡
Charpy notched impact strength, -40℃ISO 179NkJ/㎡
Tensile notched impact strength, 23℃ISO 8256230kJ/㎡
Puncture maximum force, 23℃ISO 66031500N
Puncture maximum force, -30℃ISO 66032800N
Puncture energy, 23℃ISO 660319J
Puncture energy, -30℃ISO 660337J
Izod notched impact strength, 23℃ISO 180/1AN kJ/㎡
Izod notched impact strength, -40℃ISO 180/1AN kJ/㎡
Poisson's ratio0.5
Brittleness temperatureISO 974-97℃
Shore D hardness, 15sISO 4837
Shore D hardness, maxISO 86843
Tear strength, parallelISO 34102kN/mm
Tear strength, normalISO 3496kN/mm
Abrasion resistanceISO 4649200mm³
ThermalStandardValueUnit
Melting temperature, 10℃/minISO 11357152 °C
Glass transition temperature, 10℃/minISO 11357-50 °C
Vicat Softening Temperature, 50℃/h 10NISO 306109 °C
Temperature of deflection under load, 0.45 MPaISO 7548 °C
Coeff. of linear therm. expansion, parallelISO 11359130
E-6/K
Coeff. of linear therm. expansion, normalISO 11359160
E-6/K
Eff. thermal diffusivity8.5E-8
㎡/s
RTI, electrical 1.5 mmUL746B50
℃
RTI, impact 1.5 mmUL746B50
℃
RTI, strenghth 1.5 mmUL746B50
℃
TGA curveISO 11359available
Electrical StandardValueUnit
Volume resistivityIEC 600937E10 Ohm.m
Surface resistivityIEC 600932E14Ohm
Relative permittivity,100 HzIEC 626315.2
Relative permittivity,100 HzIEC 626314.7
Dissipation factor, 100 Hz IEC 62631110E-4
Dissipation factor, 1 MHz IEC 62631525E-4
Electric strengthIEC 6024318kV/mm
Comparative tracking indexIEC 60112600
Flame retardantStandardValueUnit
UL recognized, 94HB Flame Class RatingUL 940.8mm
UL recognized, 94HB Flame Class Rating 2nd valueUL 941.5mm
Oxygen index (LOI)ISO 458920%
Injection molding guidanceStandardValueUnit
Drying temperature80℃
Drying time2-3hrs
Maximum moisture content0.02%
Melt temperature280-300℃
Nozzle temperature270-290℃
Front - Zone 3 temperature280-300℃
Middle - Zone 2 temperature280-300℃
Rear- Zone 2 temperature260-280℃
Hopper temperature60-80℃
Mold temperature80-100℃
 Partners
We have established long-term relationships with 80+ well-known  companies around the world
 Warehouse And Shipping
20+ years' experience consultant with a supply chain of 1000+ plastic raw materials in China.
Quantity (tonnes)
1-100
100-300
>300
Lead time (days)
7-10
10-15
To be negotiated

References and Notes

  1. Celanese ,"Hytrel 4056 thermoplastic polyester elastomer technical data sheet", Celanese Corporation, 04/08/2026
