ENEOS LC Xydar NC-301 LCP

 ENEOS LC Xydar NC-301 LCP Description

Xydar NC-301 is liquid crystal polymer material produced by ENEOS LC. It has excellent flow properties, allowing it to be used in thin-walled parts. It can maintain excellent mechanical properties in extreme high-temperature environments above 300°C (572°F) and has excellent flame retardancy and chemical resistance. It has unique advantages in coatings, composite materials, connectors, additives, and surface mount technology (SMT) for motor components and lamps.

Xydar NC301 LCP material is available in two standard colors: natural and black.

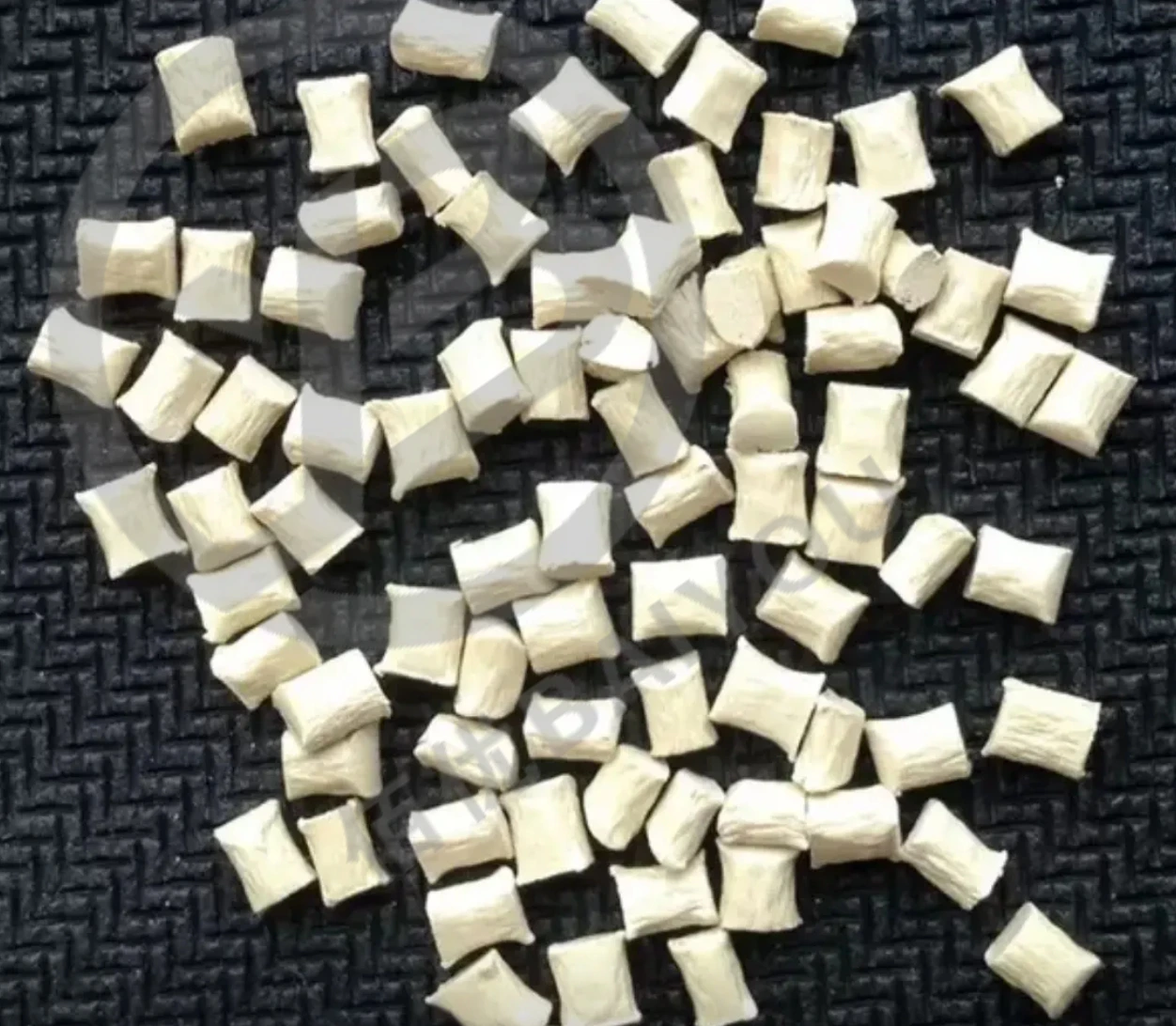

As shown in the image on the left, ENEOS Xydar NC301 Natural LCP material is a pale yellow, nearly cylindrical granule. Because it contains 30% glass fiber, the surface is not smooth.

Please contact us if you require a custom color.👉+86 15837933829

ENEOS LC Xydar NC-301 LCP Advantage

• Extremely high-temperature resistance. Xydar NC-301 is an engineering plastic with exceptionally high-temperature resistance, maintaining excellent mechanical properties in operating environments exceeding 320°C. Its heat deflection temperature reaches 281°C at 1.8 MPa under ASTM D648 testing standards, making it suitable for use in extremely high-temperature environments.
• Excellent electrical performance. Under the ASTM D150 test standard, the dissipation factor at 1MHz of Xydar NC-301 LCP material is only 0.029, the volume resistivity is 1.6E+16Ω.cm, and the dielectric strength reaches 46.0KV/mm. In the application of electronic and electrical equipment, it can ensure the normal electromagnetic signal and minimize the signal attenuation caused by the material.
• Extremely strong mechanical properties. Due to its unique structural properties, Xyadr NC-301 LCP material has mechanical strength and modulus levels far exceeding those of conventional engineering plastics. The tensile modulus under 3.2mm testing conditions is as high as 17.0GPa, and the flexural modulus is as high as 14.7GPa, far exceeding the mechanical properties of conventional glass fiber reinforced plastics resin.
• Excellent dimensional and creep resistance. NC-301 LCP material has excellent chemical resistance, hydrolysis resistance, and moisture resistance, with a water absorption rate of only 0.02% and outstanding wear resistance, making it a good choice for super-precision parts.

Why choose Baiyou as ENEOS LC Xydar NC-301 LCP supplier?

• Leading liquid crystal polymers resin pellets supplier (LCP material) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
• Fastest Arrival, with warehouses in multiple ports
• 1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
• Free Samples for production testing
• Wholesale price, even a piece of goods is based on the wholesale price

---

 Key Attributes

ENEOS LC Xydar NC-301 LCP
Product information
Manufacturer		ENENOS LC company, limited
Part Marking Code		>LCP material<
Material Shape		·LCP pellets
Flame retardant		·V-0
Process		Injection molding Liquid cystal polymer
Physical properties	Standard	Value	Unit
Density	ASTM D792	1.70	g/cm³
Shrinkage flow 100*100*1mm		0.02	%
Shrinkage xflow 100*100*1mm		0.48	%
Water absorption	ASTM D570	0.02	%
Hardness	Standard	Value	Unit
Rockwell hardness R(Scale)	ASTM D785	108
Mechanical behavior	Standard	Value	Unit
Tensile modulus 3.2mm	ASTM D638	17.0	GPa
Tensile strength 3.2mm	ASTM D638	136	MPa
Elongation 3.2mm	ASTM D638	2.1	%
Poisson ratio		0.41
Flexural strength 3.2mm	ASTM D790	185	MPa
Flexural modulus 3.2mm	ASTM D790	14.7	GPa
Izod un-notch impact	ASTM D256	49	kJ/㎡
Weld strength	Internal method	39	MPa
Thermal	Standard	Value	Unit
HDT 1.8MPa	ASTM D648	281	℃
CLE flow 3.0mm 50~250℃		1E-6~4E-6	cm/cm/℃
CLE xflow 3.0mm 50~250℃		5.2E-5~8.4E-5	cm/cm/℃
Heat conductivity coefficient	ASTM F433	0.340	kcal/m·hr·℃
Electrical properties	Standard	Value	Unit
Volume resistivity	ASTM D257	1.6E+16	Ω·cm
Surface resistivity	ASTM D257	2.03E+16	Ω
Dielectric strength	ASTM D149	46.0	KV/mm
Dielectric constant 100Hz	ASTM D150	4.4
Dielectric constant 1MHz	ASTM D150	3.8
Dissipation factor 1MHz	ASTM D150	0.029
Arc resistance	ASTM D495	126	s
Flammability	Standard	Value	Unit
Flame rating natural color / Black 0.2mm	UL94	V-0
Flame rating natural color / Black 3.0mm	UL94	V-0
Limiting oxygen index	ASTM D2863	44	%
