Polyplastics Duracon CH-10 CD3501 POM

Application: Auto parts, Transmission parts, Home appliance parts

Density: 1.41 g/cm³

Packing: 25KG/Bag

Get Quotation

Polyplastics Duracon CH-10 CD3501 POM pellet

Application

Duracon CH-10 CD3501 is a polyoxymethylene material produced by Polyplastics for injection molding. 10% carbon fiber is added to enhance the strength and impact resistance of the POM material. Duracon CH-10 CD3501 is a relatively low priced electrically conductive POM material, mainly used in the production of automotive transmission parts, office equipment, instrumentation parts, bearings, gears

Polyplastics Duracon CH-10 CD3501 POM pellet Advantage

Carbon fiber reinforced polyoxymethylene (CFR-POM). Duracon CH-10 adds 10% carbon fiber to enhance the strength, heat resistance, wear resistance and conductivity of POM materials, making POM fully applicable in transmission parts, sliding parts, high temperature fields and conductive fields.
Eletrically conductive plastic material. POM material is an excellent electrical insulating plastic. Duracon CH-10 CD3501 achieves conductive POM by adding 10% carbon fiber, while retaining the wear resistance and impact resistance of polyoxymethylene materials. It can be used to manufacture instruments and conveyor slides.
Rigidity enhanced POM material. By adding carbon fiber, the rigidity of Duracon CH-10 is effectively improved, and the additive is light in weight and has almost no effect on the weight of the final product. CD3501 POM has advantages in the fields of automobiles, machinery, office equipment and medical equipment.

Company Profile

Baiyou is affiliated to Luoyang Dahao Industry & Trade Company Limited which is a large joint-stock company specializing in chemical raw materials, was established in2003, has 500+employees,20+years of plastic product manufacturing, chemical raw material import and export, and a registered capital of 15 million dollars.

Why choose Baiyou as Polyplastics Duracon CH-10 CD3501 POM granule supplier ?

Leading POM resin pellets supplier (Polyoxymethylene) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export

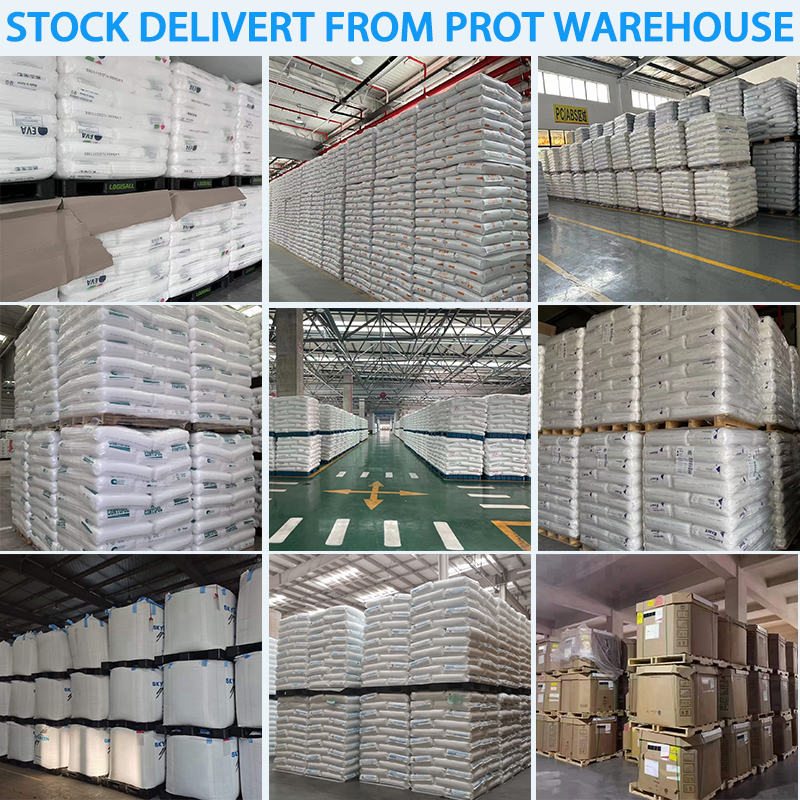

Fastest Arrival, with warehouses in multiple ports
1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
Free Samples for production testing
Wholesale price, even a piece of goods is based on the wholesale price

Key Attributes

Hardness	Standard	Value	Unit
Polyplastics Durcon CH-10 CD5301 POM
Product information
Manufacturer		Polyplastics Co., Ltd.
Certificates		MSDS
Part Marking Code		>POM material<
Color		Black
Material shape		POM pellets
Process		Injection molding POM material
FR		HB
Specification		UL RoHS
Material attribute		10% carbon fiber reinforced; Electrically conductive grade
Features		High strength; High stiffness
Application		·Automobile transmmission parts ·Office applications ·Outdoor cactivties applications ·Instrument parts ·E & E applications ·Bearing ·Gears ·Gasket etc ·Industrial applications ·Machinery parts ·Sports goods applications ·Sports equipment applications
Additives		Lubricant mold releases
UL File NO.		E45034
Physical property	Standard	Value	Unit
Density	ISO 1183	1.41	g/cm³
Shrinkage flow60602mm	ISO 294	1.1	%
Shrinkage xflow 60602mm	ISO 294	0.9	%
Melt index 190℃ 2.16kg	ISO 1133	4.0	g/10min
Melt index 190℃ 2.16khg	ISO 1133	3.3	cm³/10min
Mechanical behavior	Standard	Value	Unit
Tensile modulus	ISO 527	8800	MPa
Tensile Strength	ISO 527	116	Mpa
Elongation break	ISO 527	2.0	%
Flexural Strength	ISO 178	170	Mpa
Flexural Modulus	ISO 178	7500	Mpa
Charpy Notch Impact 23℃	ISO 179	3.0	kJ/m²
Friction coefficient dynamic vs C-steel 0.49MPa 0.3m/s thrust	JIS K7218	0.28
Friction coefficient dynamic vs M90-44 0.06 MPa 0.15m/s thrust	JIS K7218	0.37
Specific wear rate VS C-Steel 0.3m/s 0.49MPa material side thrust	JIS K7218	0.005	mm³/(N·km)
Specific wear rate VS C-steel 0.3m/s 0.49MPa steel side thrust	JIS K7218	0.0001	mm³/(N·km)
Specific wear rate VS M90-44 0.15m/s 0.06MPa material side thrust	JIS K7218	0.002	mm³/(N·km)
Specific wear rate VS M90-44 0.15m/s 0.06MPa M90-44 side thrust	JIS K7218	0.1	mm³/(N·km)
Rockwell hardness M(Scale)	ISO 2039	95
Thermal	Standard	Value	Unit
HDT 1.8MPa	ISO 75	163	°C
CLE Flow 23~55°C	INTERNAL METHOD	2E-5	cm/cm/°C
CLE xFlow 23~55°C	INTERNAL METHOD	9E-5	cm/cm/°C
Electrical properties	Standard	Value	Unit
Volume Resistivity	INTERNAL METHOD	2E+4	Ω.cm
Surface Resistivity	INTERNAL METHOD	5E+3	Ω.cm
Flammability	Standard	Value	Unit
Flame Rating All Color 0.75mm	UL94	HB
Flame Rating All Color 1.5mm	UL94	HB
Flame Rating All Color 3.0mm	UL94	HB
