Polyplastics Laperos E525T BK225P LCP

Application: ·Automotive parts ·E&E applications ·E&E housing ·SMT applications ·Industrial applications

Packing: 25KG/Bag

Process: injection Molding

Get Quotation

Polyplastics Laperos E525T LCP Description

Laperos E525T is liquid crystal polymer resin (LCP material) produced by Polyplastics Co., Ltd. It contains 25% mineral filled (MD25 LCP material), flame retardant grade V-0, impact modified high-performance plastic raw material, commonly used in automotive parts, home appliances, electronic equipment and industrial applications.

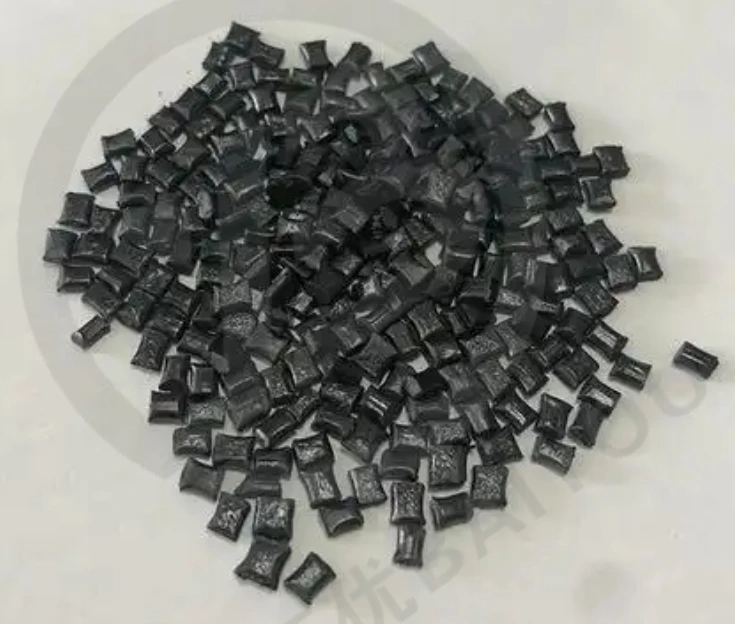

Polyplastics Laperos E525T LCP resin contains 25% mineral filled and is available only in black, as shown in the image on the left. The color code is Laperos E525T BK225P, and the pellets are pillow-shaped.

Custom color options are available; please contact us.👉+86 15837933829

Polyplastics Laperos E525T BK225P LCP Advantage

MD25 LCP material. Laperos E525T LCP material contains 25% mineral filled, which, compared to unfilled resin, effectively improve dimensional stability and heat resistance while reducing warpage defects.
Low dust emission. Compared to glass-fiber-reinforced LCP resin, Laperos E525T LCP is filled with mineral fibers. While maintaining good mechanical properties, it effectively reduces the fine dust generated during processing and use, offering advantages in precision parts, optical modules, and SMT components.
Excellent dimensional stability. Laperos E525T MD25 filled LCP has a shrinkage rate of only 0.03%, far lower than that of ordinary engineering plastics, and offers improved resistance to warpage, making it particularly suitable for the manufacturing of thin-walled precision parts.

Why choose Baiyou as Polyplastics Laperos E252T LCP resin supplier?

Leading liquid crystal polymer resin supplier (LCP material) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
Fastest Arrival, with warehouses in multiple ports
1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
Free Samples for production testing
Wholesale price, even a piece of goods is based on the wholesale price

Key Attributes

Product information
Polyplastics Laperos E525T BK225P LCP
Manufacturer		Polyplastics
Part Marking Code		>LCP material<
Material Shape		LCP pellets
Process		Injection molding LCP material
Material Attribute		·Impact modified ·25% Mineral filler ·Flame retardant
Specification		UL
Flam retardant		·UL 94 V-0
Features		Low fibrillation
Application		·Automotive parts ·E&E applications ·E&E housing ·SMT applications ·Industrial applications
Additives		Impact modifier
Physical properties	Standard	Value	Unit
Density	ISO 1183	1.55	g/cm³
Shrinkage flow 80801mm 60MPa	Internal method	0.03	%
Shrinkage xflow 80801mm 60MPa	Internal method	0.36	%
Mechanical behavior	Standard	Value	Unit
Tensile strength	ASTM D638	145	MPa
Elongation	ASTM D638	3.8	%
Flexural strength	ISO 178	155	MPa
Flexural modulus	ISO 178	12000	MPa
Flexural strain	ISO 178	4.0	%
Charpy Notch impact 23℃	ISO 179	7	kJ/㎡
Thermal	Standard	Value	Unit
HDT 1.8 MPa	ISO 75	235	℃
HDT 0.45 MPa	ISO 75	270	℃
Electrical properties	Standard	Value	Unit
Volume resistivity	IEC 60093	3E+16	Ω·cm
Dielectric constant 1KHz	IEC 60250	4.6
Dielectric constant 1MHz	IEC 60250	4.0
Dissipation Factor 1KHz	IEC 60250	0.02
Dissipation Factor 1MHz	IEC 60250	0.03
Arc resistance	ASTM D495	49	s
CTI	IEC 60112	150	V
Flammability	Standard	Value	Unit
Flame rating BK 3.0~3.3mm	UL94	V-0
UL	Standard	Value	Unit
UL flame rating BK 3.0~3.3mm	UL94	V-0
RTI Elec BK 3.0~3.3mm	UL 746B	130	℃
RTI Imp BK 3.0~3.3mm	UL 746B	130	℃
RTI Str BK 3.0~3.3mm	UL 746B	130	℃
