Sabic Cycoloy C1200HF PC/ABS

Application：·Automotive applications ·E&E application ·Home appliance applications

Material attribute: ·Low temperature impact resistance ·High liquidity ·Heat resistance

Melt index: 19cm³ / 10min

Package: 25kg

Get Quotation

Sabic Cycoloy C1200HF PC/ABS Description

Cycoloy C1200HF polycarbonate and Acrylonitrile-Butadiene-Styrene blend alloy material (PC/ABS) produced by Saudi basic industry corporation，has the characteristics of high flow, high impact resistance, high heat resistance and high ductility at low temperatures. C1200HF PC+ABS material is commonly used in the production of automotive parts, electronic and electrical equipment, home appliances and office equipment.

Sabic Cycoloy C1200HF high flow PC/ABS resin

Cycoloy C1200HF PC/ABS resin is manufactured at multiple locations; we give priority to supplying the product manufactured by Sabic Innovation (Nansha) Corporation.

As shown in the figure on the left, Cycoloy C1200HF PC/AB is a cylindrical granule available in two standard colors: Cycoloy C1200HF-100, a milky white natural color; and Cycoloy C1200HF-701, a high-gloss black.

If you need a custom color, please contact us.

Sabic Cycoloy C1200HF PC/ABS Advantage

High flow. Compared to conventional PC/ABS resin, Cycoloy C1200HF’s greatest advantage lies in its high flowability, with a melt flow rate of 19 g/10 min at 260°C under a 5 kg load. This higher flow rate makes it more suitable for the production of thin-walled and complex products.

	Cycoloy C1200HF	Cycoloy C1200
Melt flow rate (MFR) 260℃, 5kg	19	14.5	g/10min

Excellent impact resistance. Sabic Cycoloy C1200HF utilizes a PC-ABS blend technology that retains the high impact resistance of PC while effectively addressing the issue of significantly reduced impact strength at low temperatures through the addition of ABS, It achieves an Izod notched impact strength of 587 J/m at 23°Cand480 J/m at -30°C, making it suitable for automotive exterior components and outdoor applications.
Can be painted or otherwise finished. Sabic C1200HF PC/ABS enhances surface coating processes; products made from this material can undergo secondary processing such as painting and electroplating, making them suitable for applications with stringent aesthetic requirements, such as automotive interiors and small appliance components.

Why choose Baiyou as Sabic Cycoloy C1200HF PC/ABS pellets supplier?

Leading Polycarbonate and Acrylonitrile-Butadiene-Styrene blend alloy resin (PC/ABS) supplier, 20+ years of experience in plastic product manufacturing and chemical raw material import and export

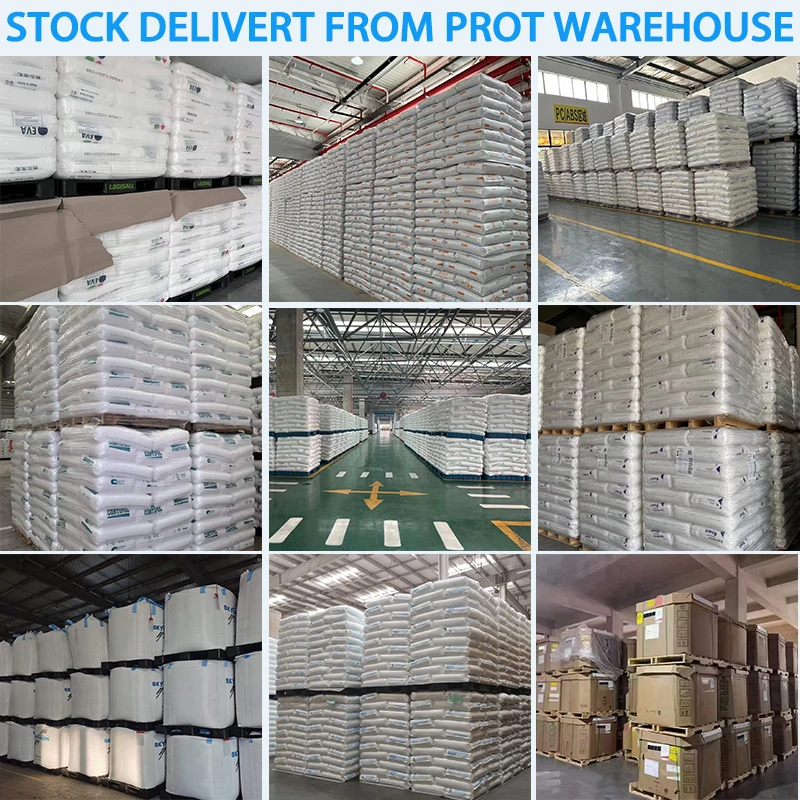

Fastest Arrival, with warehouses in multiple ports
1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
Free Samples for production testing
Wholesale price, even a piece of goods is based on the wholesale price

Key Attributes

Sabic Cycoly C1200HF PC/ABS
Product information
Manufacturer		Saudi Basic Industry Corporation
Part Marking Code		>PC/ABS material<
Material Shape		PC/ABS Pellets
Process		Injection molding grade PC+ABS material
Flame retardant		HB
Material attribute		High heat resistance grade PC/ABS material
Specification		UL
Features		·High flow ·High ductility in low temperatur ·High impact
Application		·Automotive applications ·E&E application ·Home appliance applications
Physical property	Standard	Value	Unit
Specific gravity	ASTM D792	1.15	g/cm³
Shrinkage Flow 3.2mm	INTERNAL METHOD	0.5~0.7	%
Melt Index 260°C 5kg	ASTM D1238	19	g/10 min
Mechanical behavior	Standard	Value	Unit
Tensile Modulus 50mm/min	ASTM D638	2270	MPa
Tensile Stress, Yield 50mm/min TypeⅠ	ASTM D638	57	MPa
Tensile Strain, Yield 50mm/min TypeⅠ	ASTM D638	5	%
Tensile Strain, Break 50mm/min TypeⅠ	ASTM D638	100	%
Flexural Stress, Yield 1.3mm/min	ASTM D790	88	Mpa
Flexural Modulus 1.3mm/min	ASTM D790	2340	Mpa
Impact	Standard	Value	Unit
Izod Notch Impact 23°C	ASTM D256	587	J/m
Izod Notch Impact -30℃	ASTM D256	480	J/m
Intrusmented impact 23℃ total energy	ASTM D3763	54	J
Intrusmented impact -30℃ total energy	ASTM D3763	54	J
Thermal	Standard	Value	Unit
HDT unannealed 0.45MPa 3.2mm	ASTM D648	129	℃
HDT unannealed 1.8MPa 3.2mm	ASTM D648	112	℃
Vicat softening temperature 50℃/hr 50N	ISO 306	130	℃
CLE flow -40℃~40℃	ASTM E831	7.2E-5	cm/cm/℃
Relative Temp index, Elec	UL 746B	105	℃
Relative Temp index, Mech w/impact	UL 746B	80	℃
Relative Temp index, Mech w/o impact	UL 746B	105	℃
Flammability	Standard	Value	Unit
Flame rating NC 0.75mm	UL94	HB
Flame rating BK 1.0mm	UL94	HB
Flame rating all color 1.2mm	UL94	HB
Flame rating all color 1.5mm	UL94	HB
Flame rating all color 2.5mm	UL94	HB
Flame rating all color 3.0mm	UL94	HB
Flame rating all color 3.5mm	UL94	HB
Electical	Standard	Value	Unit
Hot wire ignition {PLC}	UL 746A	3
High ampere arc ign, surface {PLC}	UL 746A	1
Comparative tracking index (UL) {PLC}	UL 746A	2
Injection molding	Standard	Value	Unit
Drying temperature		100-110	℃
Drying time		3-4	hrs
Drying time (cumlative)		8	hrs
Maximum moisture content		0.02	%
Melt temperature		275-300	℃
Nozzle temperature		275-300	℃
Front - Zone 3 temperature		260-300	℃
Front - Zone 2 temperature		260-300	℃
Rear - Zone 1 temperature		250-290	℃
Hopper temperature		60-80	℃
Mold temperature		60-80	℃
Back pressure		0.3-0.7	MPa
Screw seed		40-70	rpm
Shot to cylinder size		30-80	%
Vent depth		038-0.076	mm
