Asahi Kasei Tenac 3010 POM

Material attribution: ·Homopolymer acetal ·High viscosity

Package: 25KG/Bag

Process: Injection molding

Get Quotation

Asahi Kasei Tenac 3010 POM pellet Description

Tenac 3010 is acetal homopolymer resin pellet (POM-H material) produced by Asahi Kasei Corporation. It has a melt index of 2.8g/10min (2.16kg at 190°C), is a high viscosity POMmaterial with high toughness, high impact resistance, high rigidity, high strength, fatigue resistance and dimensional stability. Tenac 3010 POM material is mainly used in the production of high precision parts such as bearings, transmissions, engineering accessories, automotive parts, gears, and bayonet joints.

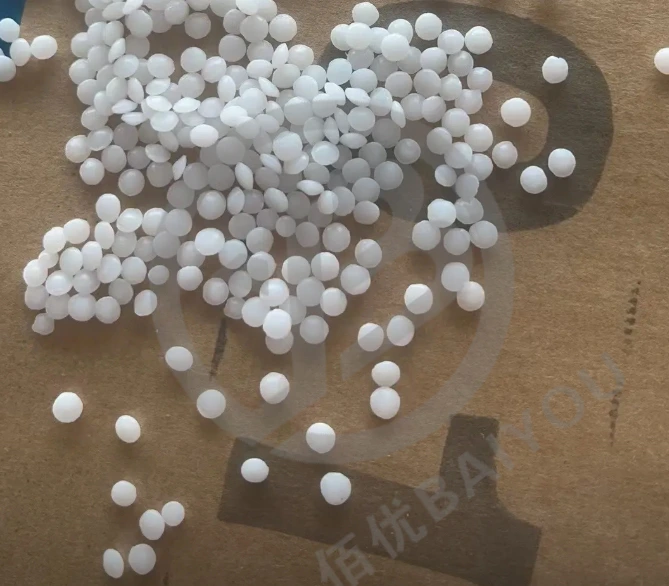

Asahi Kasei Tenac 3010 homopolymer acetal (POM-H) white pom pellet

Tenac 3010 acetal homopolymer (POM-H) is supplied by Asahi Kasei Engineering Plastics’ factory in Japan. The form of the material is shown in the image on the left; Tenac 3010 white POM consists of small, nearly spherical granules.

Please contact us if you require other colors or custom-modified POM. 👉+86 15837933829

Asahi Kasei Tenac 3010 POM pellet Advantage

Automotive applications POM material. Tenac 3010 POM material meet the material specifications of numerous automakers, including BMW, Bosch, Ford Motor Company, General Motors, ITT Inc., Mercedes-Benz Group, Continental AG, and Volkswagen Group, and can be used directly in automotive applications.
Improved fatigue resistance. Tenac 3010 POM has a higher molecular weight than conventional POM, giving it better creep resistance and fatigue resistance, which effectively extends the product’s service life. It can be used in automotive door locks, electric seat gears, windshield wiper drive mechanisms, slide rails, and precision gears.

Tenac 3010 POM Repeated Vibration Fatigue Test

The figure on the left shows a comparison of the fatigue resistance of Tenac 3010, Tenac 2010, and conventional high-viscosity POM materials under repeated vibration. Whether at 23°C or at a high temperature of 80°C, Tenac 3010 POM-H exhibits more than 100% greater resistance to repeated vibrations than conventional POM under the same stress conditions.

Better mechanical strength. Tenac 3010 POM is manufactured using homopolymer process, which gives it superior strength, impact resistance, and stiffness compared to standard acetal copolymer (POM-C) (For specific differences, see Table 1.). In terms of performance, it can be used as a substitute for DuPont Delrin POM

	Tenac 3010 POM-H	Tenac-C 4520 POM-C	Unit
Yiled stress	71	66	MPa
Tensile modulus	3100	2800	MPa
Tensile strain at break	65	55	%
HDT @ 1.8MPa	100	100	℃
Notched Charpy impact strength	13	7	kJ/㎡

Table 1. Tenac 3010 POM-H vs Tenac-C 4520 POM-C A Comparison of Performance Differences

Why choose Baiyou as Asahi Kasei Tenac 3010 POM pellets supplier?

Leading homopolymer acetal resin pellets supplier (POM-H material) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
Fastest Arrival, with warehouses in multiple ports
1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
Free Samples for production testing
Wholesale price, even a piece of goods is based on the wholesale price

Key Attributes

Product information
Asahi Kasei Tenac 3010 POM
Manufacturer		Asahi Kasei corporation
Part Marking Code		>POM-H material<
Color		Natural color
Material Shape		·POM pellets
Polymer		Homopolymer acetal material
Automotive certificated		·BMW 601.00.0 ·BOSCH 5515213 022 ·BOSCH 5515213 902 Color: Black ·BOSCH N28 BN21 -O001 ·FORD WSK-M4D637-A1 ·GM GMW19P-POM-H1 ·ITT SWF 20.100 ·MERCEDES BENZ DBL 5403.00 ·MERCEDES BENZ DBL 5410.00 ·VDO MV 4831 ·VOLKSWAGEN KTHC 909
Process		Injection molding acetal material
Viscosity		High viscosity
Flame retardant		·HB
Material Attribute		·Film grade ·Medical grade ·Profile grade ·High heat resistance grade ·Wear resistant grade
Specification		·UL
Features		·Creep resistant ·Fatigue resistant ·High viscosity
Application		·Automotive applications ·Engineer Parts ·Bearing ·Fasteners ·Housings ·Conveyor parts ·Gears
Physical properties	Standard	Value	Unit
Density	ASTM D792	1.42	g/cm³
Density	ISO 1183	1.42	g/cm³
Shrinkage flow	Internal method	1.8~2.2	%
Water absorption 23℃ 50RH 24hr	ASTM D570	0.20	%
Melt index 190℃ 2.16kg	ISO 1133	2.8	g/10min
Hardness	Standard	Value	Unit
Rockwell hardness M(Scale)	ASTM D785	94
Rockwell hardness R(Scale)	ASTM D785	120
Mechanical behavior	Standard	Value	Unit
Tensile modulus	ISO 527	3000	MPa
Tensile strength yield	ISO 527	70.0	MPa
Tensile strength	ASTM D638	69.0	MPa
Elongation break	ASTM D638	50	%
Elongation break	ISO 527	50	%
Flexural strength	ASTM D790	96	MPa
Flexural modulus	ASTM D790	2700	MPa
Flexural modulus	ISO 178	2800	MPa
Izod notch impact	ASTM D256	120	J/m
Charpy notch impact	ISO 179	13	kJ/㎡
Tabor wear	ASTM D1044	13.0	mg
Thermal	Standard	Value	Unit
Heat deflection temperature (HDT) unannealed 0.45MPa	ASTM D648	172	℃
Heat deflection temperature (HDT) unannealed 0.45MPa	ISO 75	163	℃
Heat deflection temperature (HDT) unannealed 1.8MPa	ASTM D648	133	℃
Heat deflection temperature (HDT) unannealed 1.8MPa	ISO 75	100	℃
CLE flow	ASTM D696	1E-4	cm/cm/℃
CLE flow	ISO 11359	1E-4	cm/cm/℃
Heat conductivity coefficient		0.23	W/(m·K)
Specific heat		1470	J/(kg·℃)
Electrical properties	Standard	Value	Unit
Volume resistivity 23℃	ASTM D257	1E+15~1E+16	Ω·cm
Surface resistivity	ASTM D257	1E+16~1E+17	Ω
Dielectric strength	ASTM D149	18	KV/mm
Dielectric constant 23℃ 1MHz	ASTM D150	3.80
Dissipation factor 23℃ 1MHz	ASTM D150	0.007
Arc resistance	ASTM D495	250	s
Flammability	Standard	Value	Unit
Flame rating natural all color 1.5mm	UL94	HB
Flame rating natural all color 3.0mm	UL94	HB
Flame rating natural all color 6.0mm	UL94	HB

Partners

We have established long-term relationships with 80+ well-known companies around the world

⚠️The technical data sheet of Tenac 3010 acetal material from Asahi Kasei, if there are differences, please refer to the official website of Asahi Kasei.
