Dupont Delrin 100P NC010 POM

 Dupont Delrin 100P NC010 POM Description

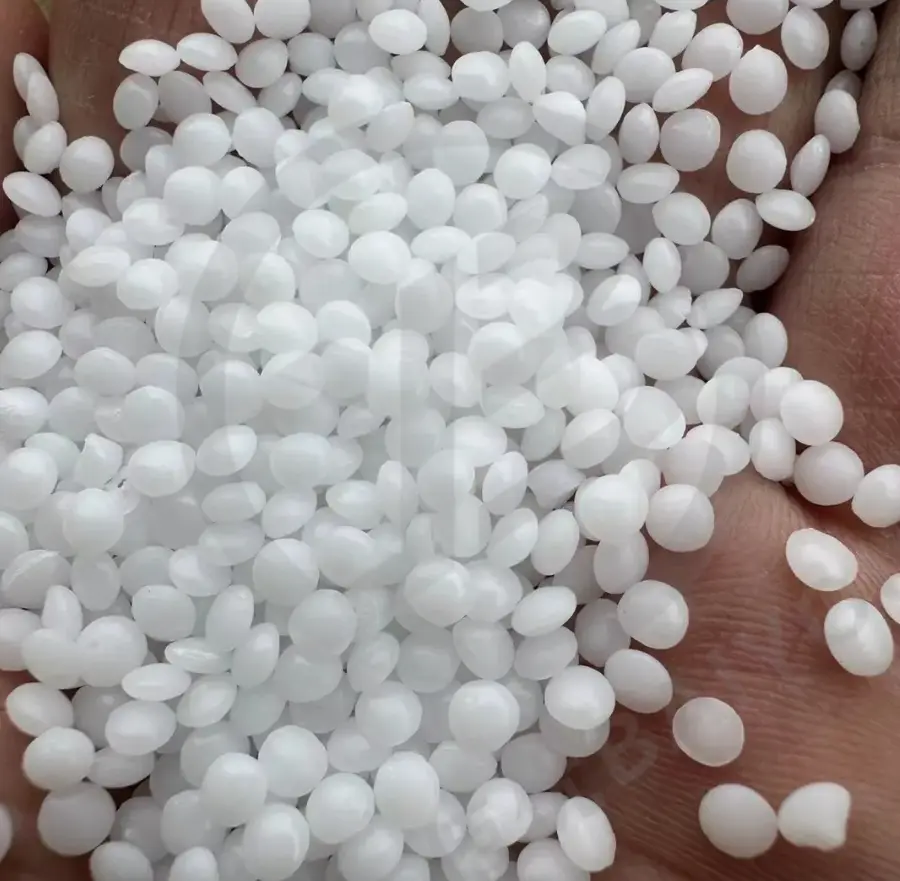

We offer standard DuPont Delrin 100P POM in two colors: Delrin 100P NC010—white POM, as shown in the image on the right, which resembles a white ellipsoid; and Delrin 100P BK602—black, opaque POM.

If you need POM material in a custom color, please contact us.👉+86 15837933829

DuPont 100P Delrin POM Advantage

• Better mechanical strength, DuPont Delrin 100P is produced using a homopolymerization process (POM-H). Compared to conventional copolymerized formaldehyde (POM-C), it offers higher rigidity and wear resistance, with a tensile modulus of 2,900 MPa and a 1-hour tensile creep modulus of 2,700 MPa, making it more suitable for applications involving repeated friction and high-intensity impact.
• Higher toughness and impact strength. Compared to other Delrin POM grades in the same series, Delrin 100P has a higher molecular weight, resulting in an Izod notched impact strength of 14 kJ/m² at 23°C. This provides it with greater toughness and impact resistance, making it suitable for high-load-bearing automotive gears and door lock mechanisms.

• Good machinability. Dupont Delrin 100P NC010 POM material has a melt volume rate (MVR) of only 2.1 cm³/10 min @ 190℃ 2.16 kg. Although its low melt flow rate makes it difficult to process, it contains release agents and lubricants, which reduce the difficulty of processing the product.

Why choose Baiyou as Dupont Delrin 100P NC010 POM supplier?

• Leading Homopolymerized acetalresin pellets supplier (POM-H material) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
• Fastest Arrival, with warehouses in multiple ports
• 1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
• Free Samples for production testing
• Wholesale price, even a piece of goods is based on the wholesale price

---

 Key Attributes

DuPont Delrin® POM 100P NC010
Product information
Manufacturer		DuPont Performance Polymers
Part Marking Code		>POM material<
Color		Nactural color
Material Shape		POM Pellets
Process		·Injection molding ·Extrusion molding
Polymer		Homopolymer
Viscosity		High viscosity
Flame Retardant		HB
Specification		RoHS UL
Features		·High strength ·High toughness ·Good moldability ·Good processability ·Low Emissions ·Low VOC
Additives		·Lubricant ·Mold Releases
Physical properties	Standard	Value	Unit
Density	ISO 1183	1420	kg/m³
Shrinkage Flow	ISO 294	2.2	%
Shrinkage xFlow	ISO 294	1.9	%
Water Absorption 2.00mm	ISO 62	1.4	%
Water Absorption 24hr In Water	ISO 62	0.4	%
Humidity Absorption 2.00mm	ISO 62	0.3	%
Melt Index 190°C 2.16kg	ISO 1133	2.1	cm³/10min
Melt Index 190°C 2.16kg	ISO 1133	2.5	g/10min
Melt Density	INTERNAL METHOD	1190	kg/m³
Hardness	Standard	Value	Unit
Rockwell Hardness M(Scale)	ISO 2039	88
Rockwell Hardness R(Scale)	ISO 2039	119
Ball Indentation Hardness H358/30	ISO 2039	173	Mpa
Mechanical behavior	Standard	Value	Unit
Tensile Modulus	ISO 527	2900	Mpa
Tensile Strength Yield	ISO 527	70	Mpa
Elongation Yield	ISO 527	26	%
Elongation Break	ISO 527	45	%
Poisson Ratio	INTERNAL METHOD	0.37
Tensile Creep Modulus 1hr	ISO 899	2700	Mpa
Tensile Creep Modulus 1000hr	ISO 899	1500	Mpa
Flexural Strength 3.5%Strain	ISO 178	75	Mpa
Flexural Modulus	ISO 178	2800	Mpa
Izod Notch Impact 23°C Type A	ISO 180	14	kJ/m²
Izod Notch Impact -40°C Type A	ISO 180	12	kJ/m²
Charpy Notch Impact 23°C 1eA	ISO 179	14	kJ/m²
Charpy Notch Impact -30°C 1eA	ISO 179	13	kJ/m²
Charpy Un-notch Impact 23°C	ISO 179	NB	kJ/m²
Charpy Un-notch Impact -30°C	ISO 179	400.0	kJ/m²
Thermal	Standard	Value	Unit
HDT 1.8MPa	ISO 75	95	°C
HDT Annealed 1.8MPa	ISO 75	110	°C
HDT 0.45MPa	ISO 75	155	°C
Vicat Softening Temperature 50°C/hr 50N	ISO 306	160	°C
Vicat Softening Temperature 50°C/hr 10N	ISO 306	175	°C
Melting Temperature 10°C/min	ISO 11357	178	°C
CLE Flow	ISO 11359	1.1E-4	m/m/K
CLE xFlow	ISO 11359	1.1E-4	m/m/K
CLE xFlow -40.0~23°C	ISO 11359	1E-4	m/m/K
CLE Flow -40.0~23°C	ISO 11359	1E-4	m/m/K
Heat Conductivity Coefficient Melt	INTERNAL METHOD	0.22	W/(m·K)
Specific Heat Melt	INTERNAL METHOD	3000	J/(kg·K)
Electrical properties	Standard	Value	Unit
Volume Resistivity	IEC 62631	1E+12	Ω.m
Surface Resistivity	IEC 62631-3-2	2E+13	Ω
Dielectric Strength	IEC 60243	41	KV/mm
Dielectric Constant 100Hz	IEC 62631-2-1	3.9
Dielectric Constant 1MHz	IEC 62631-2-1	3.9
Dissipation Factor 100Hz	IEC 62631-2-1	0.0035
Dissipation Factor 1MHz	IEC 62631-2-1	0.0055
CTI	IEC 60112	600	V
Flammability	Standard	Value	Unit
Flame Rating All Color 0.75mm	UL94	HB
Flame Rating All Color 1.5mm	UL94	HB
Flame Rating All Color 3.0mm	UL94	HB
GWFI 1mm	IEC 60695	550	°C
GWFI 2mm	IEC 60695	550	°C
GWFI 3mm	IEC 60695	550	°C
Burning Rate 1.00mm	ISO 3795	50	mm/min
VDA Properties	Standard	Value	Unit
Emission	VDA 275	8	mg/kg
Injection molding		Value	Unit
Dry Temperature		80	°C
Dry Time		2~4	hr
Water Content Control		≤0.2	%
Melt Temperature Optimum		215	°C
Min. Melt Temperature		210	°C
Max. Melt Temperature		220	°C
Mould Temperature		90	°C
Min. Mould Temperature		80	°C
Max. Mould Temperature		100	°C
Screw Speed		0.2	m/s
Holding Pressure		90~110	Mpa
Hold Pressure Time		8	s/mm
Annealing Time		30	min/mm
Annealing Temperature		160	°C
Extrusion molding		Value	Unit
Dry Temperature		75~85	°C
Dry Time		2~4	hr
Water Content Control		≤0.2	%
Melt Temperature		195~205	°C
Melt Temperature Optimum		200	°C

 Partners

We have established long-term relationships with 80+ well-known  companies around the world

 Warehouse And Shipping

20+ years' experience consultant with a supply chain of 1000+ plastic raw materials in China.

Quantity (tonnes)	1-100	100-300	>300
Lead time (days)	7-10	10-15	To be negotiated

---

References and Notes

1. DuPont,"DuPont™ Delrin® 100 | Delrin® 100 Properties",DuPont performance polymer, 17/06/2026
2. DuPont,"DELRIN® acetal resins: design information",DuPont performance polymer, 17/06/2026
