Asahi Kasei TENAC-C 4520 POM

Package: 25kg/Bag

Melt index (190℃ 2.16kg): 9g/10min

Get Quotation

Asahi Kasei TENAC-C 4520 POM pellet Description

TENAC-C 4520 is polyaetal copolymer (POM-C material) produced by Asahi Kasei Corporation. It has a melt index (at 190°C 2.16kg) of 9g/10min, contains mold release, lubricant components and has good lubrication properties. TENAC-C 4520 is commonly used in the production of automotive parts, gears, power tools, mechanical accessories and other applications that require outstanding lubrication and wear resistance.

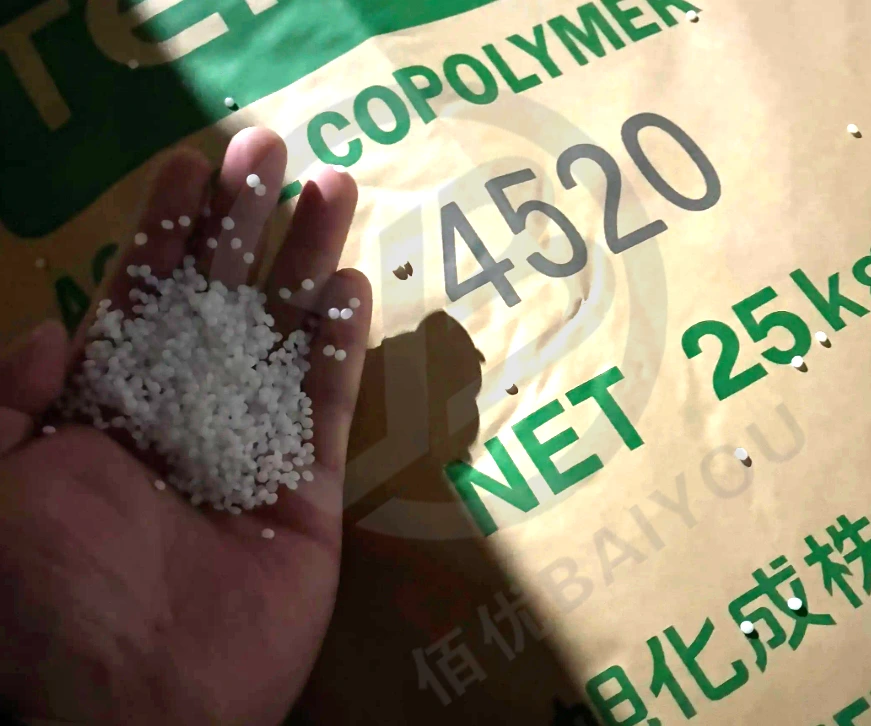

As shown in the figure on the left, standard Tenac C4520 is white POM in the form of nearly spherical pellets.

The Tenac C4520 POM-C we offer is manufactured at two locations: the Asahi Kasei plant in Japan and Asahi Kasei POM (Zhangjiagang) Company Limited in China. There is no difference between the products from these two locations.

Asahi Kasei TENAC-C 4520 POM pellet Advantage

Automotive applications POM material. As POM material suitable for automotive applications, Tenac-c 4520 meets the standards of numerous automakers, including Bosch, GM, Nissan, and Volkswagen, and is used in numerous automotive manufacturing applications worldwide.
Better dimensional stability. The mold shrinkage of homopolymer formaldehyde is 1.8–2.2%, while that of Tenac-C 4520 POM is 1.6–2.0%; its higher dimensional stability makes it more suitable for precision parts manufacturing.
Good processing properties. Compared to the homopolymer POM Tenac 3010, Tenac-C 4520 POM-C has a melt flow index of 9 g/10 min (at 190°C and 2.16 kg), making it more suitable for the processing of thin-walled and precision parts; at the same time, it offers a wider processing temperature range of 180–210°C, resulting in lower risks of thermal degradation and formaldehyde release, as well as greater tolerance for processing temperature variations.

	Tenac-C 4520 POM-C	Tenac 3010 POM-H	Unit
Melt flow index, 190℃ 2.16kg	9	2.8	g/10min
Process melt temperature	180-210	190-210	℃
Material	POM-C (Copolymer: Lower risk of thermal degradation)	POM-H

Why choose Baiyou as Asahi Kasei TENAC-C 4520 POM pellets supplier?

Leading copolymer polyoxymethylene resin pellets supplier (POM-C material) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
Fastest Arrival, with warehouses in multiple ports
1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
Free Samples for production testing
Wholesale price, even a piece of goods is based on the wholesale price

Key Attributes

Product information
Asahi Kasei TENAC-C 4520 POM
Manufacturer		Asahi Kasei
Part Marking Code		>POM material<
Color		Natural color
Material Shape		·POM pellets
Flame retardant		·HB
Specification		·RoHS ·UL
Application		·Automotive door & window parts ·Engine parts ·Automotive parts ·Gears ·Industrial application ·Power tools ·Machinery parts
Automotive specifications		·BOSCH N28 BN22-O006 ·BOSCH 5515265 905 color: black ·BOSCH 5515265 025 ·VOLKWAGEN KTHB 041 color: black ·VOLKWAGEN KTHB 909 ·GM GMP.POM.005 color: natural ·GM GMW22P-POM-C2
Additives		·Lubricant ·Mold release
Physical properties	Standard	Value	Unit
Density	ASTM D792	1.41	g/cm³
Density	ISO 1183	1.41	g/cm³
Shrinkage flow	Internal method	1.6~2.0	%
Water absorption 23℃ 50RH 24hr	ASTM D570	0.20	%
Melt index 190℃ 2.16kg	ISO 1133	9.0	g/10min
Hardness	Standard	Value	Unit
Rockwell hardness M(Scale)	ASTM D785	80
Rockwell hardness R(Scale)	ASTM D785	115
Mechanical behavior	Standard	Value	Unit
Tensile modulus	ISO 527	2700	MPa
Tensile strength yield	ISO 527	63.0	MPa
Tensile strength	ASTM D638	63.0	MPa
Elongation break	ASTM D638	35	%
Elongation break	ISO 527	35	%
Flexural strength	ASTM D790	90	MPa
Flexural modulus	ASTM D790	2550	MPa
Flexural modulus	ISO 178	2550	MPa
Izod notch impact	ASTM D256	77	J/m
Charpy notch impact	ISO 179	7.0	kJ/㎡
Tabor wear	ASTM D1044	14.0	mg
Thermal	Standard	Value	Unit
HDT unannealed 0.45MPa	ASTM D648	158	℃
HDT unannealed 0.45MPa	ISO 75	156	℃
HDT unannealed 1.8MPa	ASTM D648	110	℃
HDT unannealed 1.8MPa	ISO 75	100	℃
CLE flow	ASTM D696	1E-4	cm/cm/℃
CLE flow	ISO 11359	1E-4	cm/cm/℃
Heat conductivity coefficient		0.23	W/(m·K)
Specific heat		1470	J/(kg·℃)
Electrical properties	Standard	Value	Unit
Volume resistivity 23℃	ASTM D257	1E15~1E16	Ω·cm
Surface resistivity	ASTM D257	1E16~1E17	Ω
Dielectric strength	ASTM D149	19	KV/mm
Dielectric constant 23℃ 1MHz	ASTM D150	3.90
Dissipation factor 23℃ 1MHz	ASTM D150	0.008
Arc resistance	ASTM D495	250	s
Flammability	Standard	Value	Unit
Flame rating natural all color 0.75mm	UL94	HB
Flame rating natural all color 1.5mm	UL94	HB
Flame rating natural all color 3.0mm	UL94	HB
