UHMWPE Celanese GUR 4120
UHMWPE Ticona 4120

Celanese GUR 4120 UHMWPE

Application: Battery separator

Packaging: 25kg/ Bag
Get Quotation

 Celanese GUR 4120 UHMWPE Description

GUR 4120 is Celanese company's industrial ultra-high molecular weight polyethylene polymer (UHMWPE material), usable pillar molding, hole molding and other processing methods, including good temperature resistance, operating temperature -270 to 80℃; water decomposition resistance, chemical corrosion resistance; low friction coefficient.

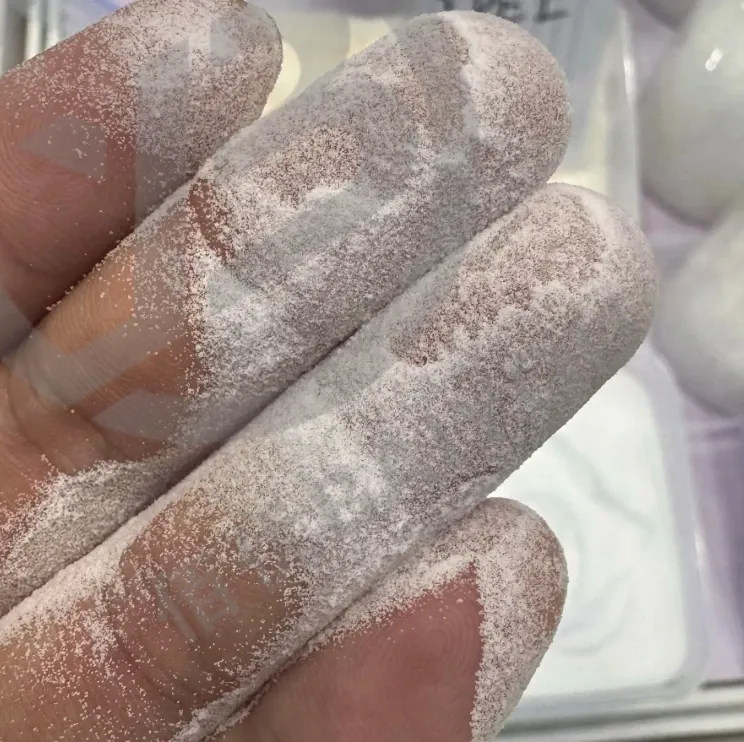

gur 4120 uhmwpe powder

Celanese GUR 4120 PE-UHMW material consists of extremely fine particles, similar to powder, as shown in the image on the left, and is pure white in color. If you require granules or a custom color, please contact us.👉+86 15837933829

Celanese GUR 4120 UHMWPE Advantage

  • Ultra high molecular weight polyethylene material. As a superior UHMWPE material, Celanese GUR 4120 has an average molecular weight of 4,700,000 g/mol, giving the finished product excellent wear resistance, impact resistance and chemical resistance.
  • Excellent impact resistance. Celanese GUR 4120 UHMWPE has a simple beam notch impact of 240kJ/㎡ under a 23℃ test environment, which makes the finished product have excellent instantaneous external force impact resistance and is suitable for the production of engineering parts with high requirements for impact resistance.

Why choose Baiyou as Celanese GUR 4120 UHMWPE supplier?

  • Leading ultra high molecular weight polyethylene resin (UHMWPE) supplier, 20+ years of experience of plasticizing materials factory
  • Fastest Arrival, with warehouses in multiple ports
  • 1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
  • Free Samples for production testing
  • Wholesale price, even a piece of goods is based on the wholesale price
  Key features
Celanese GUR 1420 UHMWPE
Product information
Manufacturer
Celanese corporation
Part Marking Code
>UHMWPE material<
Material shape
UHMWPE powder
Process
·Ram Extrusion molding UHMWPE material
·Compression molding UHMWPE material
·Porous sintering UHMWPE
Viscosity
High viscosity
Molecular weight
Ultra high molecular weight
Physical properties
Standard
Value
Unit
Density
ISO 1183
0.93
g/cm³
Intrinsic viscosity
ISO 1628
2000
cm³/g
Viscosity number
ISO 1628
2300
cm³/g
Particle size D50
  Internal method
120
μm
Average molecular weight
Internal method
4700000
g/mol
Melt index 190℃ 21.6kg
ISO 1133
0.1
g/10min
Hardness
Standard
Value
Unit
Shore hardness D 15S
ISO 868
60

Mechanical behavior
 Standard
Value
Unit
Tensile modulus
ISO 527
680
MPa
Tensile strength
ISO 11542
0.24
MPa
Tensile strength yield
ISO 527
20
MPa
Tensile strength 50% strain
ISO 527
19
MPa
Tensile strength break
ISO 527
41
MPa
Elongation yield
ISO 527
13
%
Elongation break
ISO 527
450
%
Charpy notch impact 23℃
ISO 11542
240
kJ/㎡
Amount of wear
Internal method
100

Thermal
Standard
Value
Unit
Heat deflection temperature (HDT) 1.8MPa
ISO 75
38
℃
Vicat softening temperature 50℃/hr 50N
ISO 136
80
℃
Electrical properties
Standard
Value
Unit
Volume resistivity
IEC 60093
1E+12
Ω·m
Surface resistivity
IEC 60093
1E+12
Ω
Flammability
Standard
Value
Unit
Flame rating NC 1.5mm
UL94
HB

Flame rating NC 3.0mm
UL94
HB
