Polyplastics Duracon M270-44 POM

Application: Auto parts, Gearing , Industrial applications

Material attribute: ·High flow ·Fast molding cycle

Packing: 25KG/Bag

Get Quotation

Polyplastics Duracon M270-44 POM pellet

Duracon M270-44 is low viscosity POM, produced via copolymerization, is also known as POM-C material, produced by Polyplastics Co., Ltd. with a melt index of 27g/10min. It contains lubricants and release agents, has high fluidity, and is suitable for the production of complex and precision parts.

duracon m270-44 cf2001 low viscosity pom

Duracon M270-44 POM is sourced from multiple locations; we give priority to the product manufactured by Polypalstic (Shanghai).

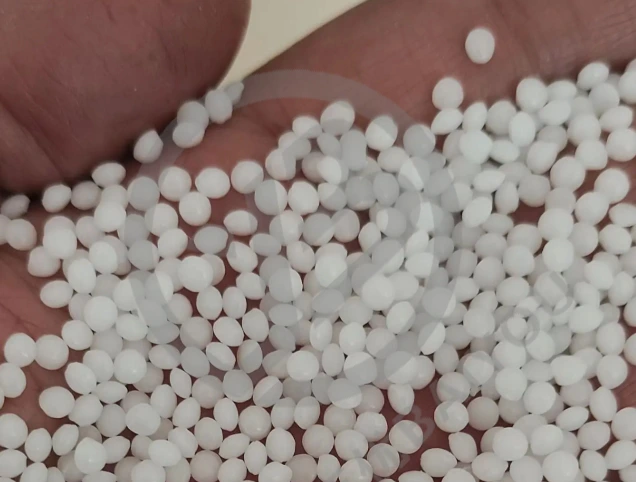

There are two standard colors: Duracon M270-44 CF2001—opaque white POM—and Duracon M270-44 CD3608—opaque black POM. As shown in the image on the left, Duracon M270-44 CF2001 consists of opaque, nearly white spherical pellets.

Polyplastics Duracon M270-44 POM Advantage

Good processability. The melt index of Duracon M270-44 CF2001 polyoxymethylene material is 27g/10min under the test environment of 190℃ and 2.16kg, compared to the POM Duracon M90-44 (9 g/10 min) which is commonly used in this series,M270-44 POM offers higher flow rate and lower viscosity, making it more suitable for the production of thin-walled, complex, and precision parts.
Good lubrication and wear resistance. The friction coefficient against carbon steel at 0.98 MPa 0.3 m/s of Duracon M270-44 CF2001 POM is only 0.40, while the friction coefficient against M90-44 at 0.06 MPa and 0.15 m/s is only 0.37. Duracon's superior lubricity makes it particularly advantageous for use in high friction applications such as mechanical components, bearings, and valves.

Why choose Baiyou as Polyplastics Duracon M270-44 POM supplier ?

Leadingcopolymer acetal (POM material) resin supplier , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
Fastest Arrival, with warehouses in multiple ports
1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
Free Samples for production testing
Wholesale price, even a piece of goods is based on the wholesale price

Key Attributes

Polyplastics Duracon M270-44 POM
Product information
Manufacturer		Polyplastics Co., Ltd.
Part Marking Code		>POM material<
Color		·Black ·Natural color
Flame retardant		HB
Specification		·UL ·RoHS
Viscosity		·Low viscosity
Applications		·Automotive parts ·Office applications ·Outdoor cactivties applications ·Toy parts ·Gears ·Industrial applications ·Zipper
Additives		·Lubricant ·Mold release
Physical properties	Standard	Value	Unit
Density	ISO 1183	1.41	g/cm³
Shrinkage flow 60602 mm	ISO 294	1.9	%
Shrinkage xflow 60602 mm	ISO 294	1.9	%
Water absorption 23℃ 24h 1.0 mm	ISO 62	0.5	%
Melt index 190℃ 2.16kg	ISO 1133	27	g/10min
Melt index 190℃ 2.16kg	ISO 1133	23	cm³/10min
Hardness	Standard	Value	Unit
Rockwell hardness M (Scale)	ISO 2039	80
Mechanical behavior	Standard	Value	Unit
Tensile modulus	ISO 527	2800	MPa
Tensile Strength	ISO 527	63	MPa
Elongation break	ISO 527	30	%
Flexural Strength	ISO 178	88	MPa
Flexural Modulus	ISO 178	2550	MPa
Charpy Notch Impact 23℃ 1eA	ISO 179	5.3	kJ/m²
Friction coefficient dynamic VS C-Stell 0.49 MPa 0.3 m/s thrust	JIS K7218	0.40
Friction coefficient dynamic VS M90-44 0.06 MPa 0.15 m/s thrust	JIS K7218	0.37
Specific wear rate VS C-Stell 0.3 m/s 0.98 MPa material side thrust	JIS K7218	0.0003	mm³/(N·km)
Specific wear rate VS C-Stell 0.3 m/s 0.98 MPa steel side thrust	JIS K7218	0.00001	mm³/(N·km)
Thermal	Standard	Value	Unit
HDT 1.8MPa	ISO 75	100	°C
CLE Flow 23~55°C	Internal method	1.1E-4	cm/cm/°C
CLE xFlow 23~55°C	Internal method	1.1E-4	cm/cm/°C
Electrical properties	Standard	Value	Unit
Volume Resistivity	IEC 60093	1E14	Ω.cm
Surface Resistivity	IEC 60093	1E16	Ω
Dielectric Strength 3.0mm	IEC 60093	19	kV/mm
Flammability	Standard	Value	Unit
Flame Rating All Color 0.75mm	UL94	HB
Flame Rating All Color 1.5mm	UL94	HB
Flame Rating All Color 3.0mm	UL94	HB
