Duracon M90-44 POM

Application: ·Auto parts ·Transmission parts ·Home appliance parts

Melt volume rate (MVR): 9 g/10min

Packing: 25 KG/Bag

Get Quotation

Duracon M90-44 POM pellet

Duracon M90-44 is general purpose grade POM-C (copolymer acetal) material produced by Polyplastic Co., Ltd, has medium viscosity, is easy to process, has a low coefficient of friction, and is used in the production of bearings, gears, and transmissions.

Duracon M90s POM is manufactured at multiple locations; we give priority to supplying POM resin produced by Polyplastics (Shanghai) Limited.

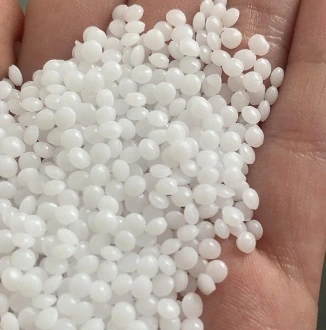

Duracon M90-44 is available in two standard colors: Duracon M90-44 CF2001 white POM and Duracon M90-44 CD3068 black POM. As shown in the image on the left, Duracon M90-44 CF2001 white POM consists of nearly spherical, pure white, opaque pellets.

Duracon M90-44 POM Advantage

Easy to process. Duracon M90-44 CF2001 is a commonly used POM resin that can be processed on standard injection molding equipment. It has a melt volume rate (MVR) of 9, moderate viscosity, and is relatively easy to process.
Good lubricating performance, Duracon M90-44 acetal material has very low friction coefficient. Under the JIS K7218 test standard, the friction coefficient under the test environment of 0.49MPa 0.3m/s is less than 0.5, which is much lower than that of conventional plastic materials. M90-44 POM is very suitable for applications with high requirements for friction performance, such as bearings, valves, transmissions, gears
Good mechanical properties. Duracon M90-44 POM material's Charpy notched impact strength is 6kJ/㎡, strain at break is 35%, compared to the Duracon M270-44 low viscosity POM in the same series, offers greater flexibility and is better suited for high-load applications

Why choose Baiyou as Duracon M90-44 POM supplier ?

Leading copolymer Polyformaldehyde resin supplier (POM-C material) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
Fastest Arrival, with warehouses in multiple ports
1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
Free Samples for production testing
Wholesale price, even a piece of goods is based on the wholesale price

Key Attributes

Duracon M90-44 POM
Product information
Manufacturer		Polyplastics Co., Ltd.
Part Marking Code		>POM material<
Color		·Black ·Natural color
Flame retardant		HB
Specification		·UL ·RoHS
Process		Injection molding
Polymer		Copolymer
Viscosity		Medium viscosity
Applications		·Automobile transmission parts ·Automotive parts ·Office applications ·Outdoor cactivites applications·Toys parts ·Construstion applications ·Home appliances applications ·Bearing ·Gear ·Gasket etc ·Industrial applications ·Power tools ·Machinery parts ·Medical device parts ·Sports equipment applications ·Camera parts
Additives		·Lubricant ·Mold release
Physical properties	Standard	Value	Unit
Density	ISO 1183	1.41	g/cm³
Shrinkage flow 60602 mm	ISO 294	2.0	%
Shrinkage xflow 60602 mm	ISO 294	2.0	%
Water absorption 23℃ 24hr 1.0 mm	ISO 62	0.5	%
Melt flow rate (MFR), 190℃ 2.16 kg	ISO 1133	9	g/10min
Melt volume rate (MVR), 190℃ 2.16 kg	ISO 1133	8	cm³/10min
Hardness	Standard	Value	Unit
Rockwell hardness M (Scale)	ISO 2039	80
Mechanical behavior	Standard	Value	Unit
Tensile modulus	ISO 527	2700	MPa
Tensile Strength	ISO 527	62	MPa
Elongation break	ISO 527	35	%
Flexural Strength	ISO 178	87	MPa
Flexural Modulus	ISO 178	2500	MPa
Charpy Notch Impact 23℃ 1eA	ISO 179	6.0	kJ/m²
Friction coefficient dynamic VS C-Steel 0.49 MPa 0.3m/s thrust	JIS K7218	0.46
Friction coefficient dynamic VS C-Steel 0.98 MPa 0.3m/s thrust	JIS K7218	0.40
Friction coefficient dynamic VS M90-44 0.06 MPa 0.15m/s thrust	JIS K7218	0.37
Specific wear rate VS C-Stell 0.3m/s 0.49 MPa material side thrust	JIS K7218	0.00065	mm³/(N·km)
Specific wear rate VS C-Stell 0.3m/s 0.49 MPa steel side thrust	JIS K7218	0.00001	mm³/(N·km)
Specific wear rate VS C-Stell 0.3m/s 0.98 MPa material side thrust	JIS K7218	0.0003	mm³/(N·km)
Specific wear rate VS C-Stell 0.3m/s 0.98 MPa steel side thrust	JIS K7218	0.00001	mm³/(N·km)
Thermal	Standard	Value	Unit
HDT 1.8MPa	ISO 75	95	°C
CLE Flow 23~55°C	Internal method	1.2E-4	cm/cm/°C
CLE xFlow 23~55°C	Internal method	1.2E-4	cm/cm/°C
Electrical properties	Standard	Value	Unit
Volume Resistivity	IEC 60093	1E14	Ω.cm
Surface Resistivity	IEC 60093	1E16	Ω
Dielectric Strength 3.0mm	IEC 60093	19	KV/mm
Flammability	Standard	Value	Unit
Flame Rating All Color 0.75mm	UL94	HB
Flame Rating All Color 1.5mm	UL94	HB
Flame Rating All Color 3.0mm	UL94	HB
