ExxonMobil Nexxstar Low EVA-00111 EVA

Density: 0.928 g/cm³

Melt flow rate: 0.5 g/10min

VA content: 7.5 wt%

Packing: 25KG / Bag

Get Quotation

ExxonMobil Nexxstar Low EVA-00111 EVA pellet Description

Nexxstar Low EVA-00111 is low vinyl acetate content ethylene vinyl acetate polymer resin pellet (EVA material) produced by ExxonMobil Chemical. It has a VA content of 7.5wt% and a melt index of 0.5g/10min (at 190℃ 2.16kg). It is specifically designed for the production of cold shrink film.

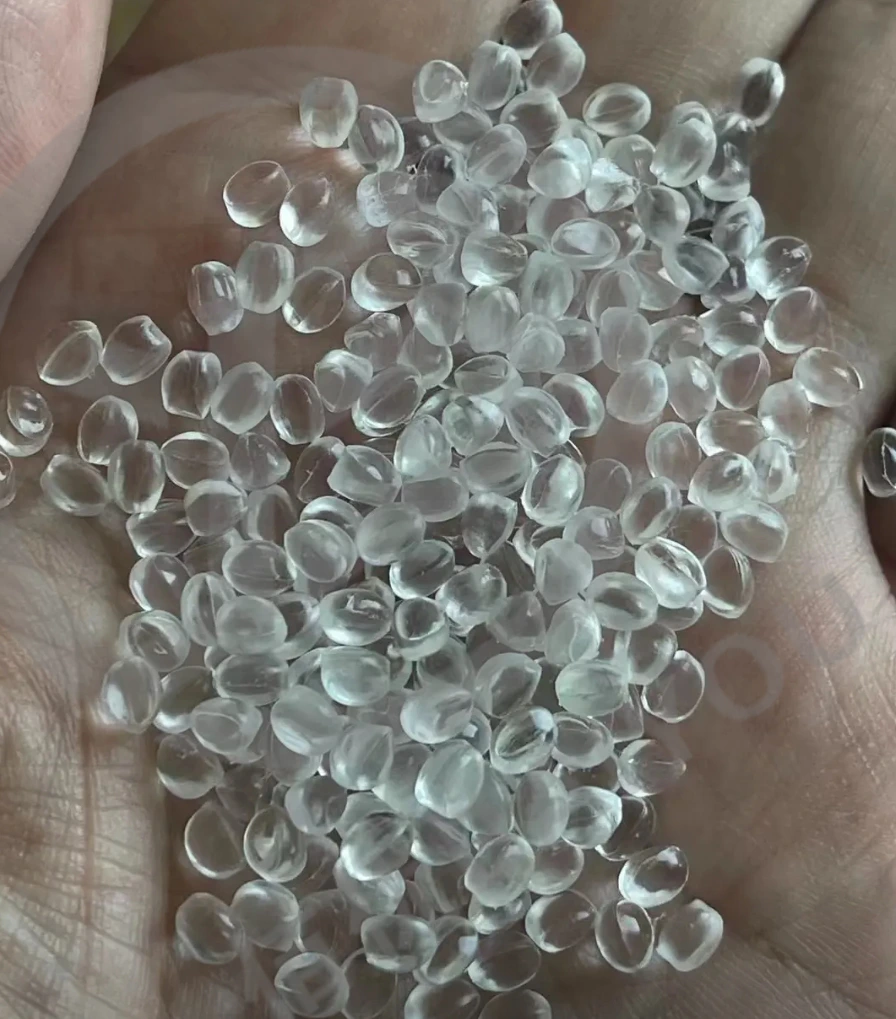

As shown in the figure on the left, ExxonMobil EVA 00111 consists of highly transparent ellipsoidal particles that feel similar to rubber and exhibit high damping and elasticity.

ExxonMobil Nexxstar Low EVA-00111 EVA pellet Advantage

Good mechanical properties. As an EVA material specially used for the production of cold shrink film, Low EVA-00111 has a breaking elongation of 200% in the flow direction and 620% in the perpendicular direction. The yield tensile strength in the flow direction is 9.8MPa and the breaking tensile strength is 34MPa. It is suitable for the production of conventional stretch covers and cold shrink films.
Excellent processing and performance. As an EVA material for film production, ExxonMobil Low EVA-00111 has a melt index of 0.5g/10min at 190°C and 2.16kg, making it suitable for injection molding. The inclusion of slip agents and anti-blocking agents facilitates film packaging production while also enhancing customer experience.
Good high temperature resistance. Although the production of Stretch Sleeve Film does not require high temperature resistance like heat shrink film, the material still needs to have high temperature resistance to avoid deformation during hot canned packaging and high temperature environment. ExxonMobil Low EVA-00111 contains heat stabilizer ingredients, and the Vicat softening temperature reaches 80℃, which can avoid the occurrence of such deformation.

Why choose Baiyou as ExxonMobil Nexxstar Low EVA-00111 EVA pellets supplier?

Leading Ethylene vinyl acetate copolymer resin pellets supplier (EVA material) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
Fastest Arrival, with warehouses in multiple ports
1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
Free Samples for production testing
Wholesale price, even a piece of goods is based on the wholesale price

Key Attributes

ExxonMobil Nexxstar Low EVA-00111 EVA
Product information
Manufacturer		ExxonMobil Chemical Company
Part Marking Code		>EVA material<
Color		Natural Color
Material Shape		EVA Pellets
Process		Injection molding EVA material
Material Attribute		Antiblock
Polymer		Copolymer
Additives		·Heat Stabilizer ·Slip Agent
Physical properties	Standard	Value	Unit
Density	ASTM D1505	0.928	g/cm³
Melt Index 190°C 2.16kg	ASTM D1238	0.5	g/10min
Vinyl Acetate Content	INTERNAL METHOD	7.5	wt%
Mechanical behavior	Standard	Value	Unit
Tensile Strength Flow Yield	ASTM D882	9.8	MPa
Tensile Strength xFlow Yield	ASTM D882	6.5	MPa
Tensile Strength Flow Break	ASTM D882	34	MPa
Tensile Strength xFlow Break	ASTM D882	29	MPa
Elongation Flow Break	ASTM D882	200	%
Elongation xFlow Break	ASTM D882	620	%
Falling Weight Impact Strength	ASTM D1709	360	g
Elmendorf Tear Strength Flow	ASTM D1922	190	g
Elmendorf Tear Strength xFlow	ASTM D1922	60	g
Secant Modulus 1% Flow	ASTM D882	110	MPa
Secant Modulus 1% xFlow	ASTM D882	130	MPa
Puncture Resistance	INTERNAL METHOD	67	N
Puncture Resistance	INTERNAL METHOD	2.8	J
Optical performance	Standard	Value	Unit
Gloss 45°	ASTM D2457	52
Haze	ASTM D1003	9.4	%
Thermal	Standard	Value	Unit
Vicat Softening Temperature	ASTM D1525	80	°C
Melting Temperature	INTERNAL METHOD	100	°C
