 Exxon Exceed Flow m 0535.MC Wire & Cable mLLDPE pellet Description

Exceed Flow m 0535.MC Wire & Cable is a metal-catalyzed medium-density ethylene-1-hexene copolymer produced by ExxonMobil. It has excellent tensile, impact and puncture resistance, contains carbon black and heat stabilizer ingredients and is widely used in the manufacture of medium and high density wire and cable jacket.

Exxon Exceed Flow m 0535.MC Wire & Cable mLLDPE Advantage

• Excellent electrical performance. As a resin material specially used for wire and cable sheath, 0535.MC (3505MC) has excellent electrical performance. The volume resistance under 500V test environment is only 7.5E+14Ω.m, the dielectric constant under 1MHz test environment is 2.28, and the dissipation factor is 0.00013. It reduces energy dissipation while ensuring insulation effect.
• Excellent thermal stability, 0535.MC (3505MC) mLLDPE material contains carbon black and heat stabilizer ingredients, with an instantaneous maximum temperature resistance of 123°C, effectively ensuring the service life and insulation effect of cables in wire and cable applications
• Good stretchability and flexibility make it easy to produce and store cables. The breaking elongation of Exceed 0535.MC (3505) reaches 790% under the 50mm/min test environment, which is higher than other polymers of the same level. Good flexibility and tensile properties make it convenient for winding, storage and transportation of wires and cables.

Why choose Baiyou as Exxon Exceed Flow m 0535.MC Wire & Cable mLLDPE supplier?

• Leading metallocene linear low density polyethylene supplier (mLLDPE resin) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
• Fastest Arrival, with warehouses in multiple ports
• 1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
• Free Samples for production testing
• Wholesale price, even a piece of goods is based on the wholesale price

---

 Key Attributes

Exxon Exceed Flow m 0535.MC Wire & Cable mLLDPE
Product information
Manufacturer		ExxonMobil chemical company
Part Marking Code		>mLLDPE material<
Color		Black
Material Shape		·mLLDPE pellets
Process		Extrusion molding mLLDPE material
Material Attribute		·Extrusion grade ·Wear resistant grade ·C6
Features		·Good abrasion resist ·Good mechanical properties ·Stress crack resitance ·Ethylene 1-hexene copolymer
Application		·Communication cable ·High voltage jacketing ·Jacketing ·Low voltage jacketing ·Medium voltage Jacketing
Additives		·Carbon blakc ·Heat stabilizer
Physical properties	Standard	Value	Unit
Density	ASTM D1505	0.935	g/cm³
Melt index 190℃ 2.16kg	ASTM D1238	0.50	g/10min
Environmental stress crack resistance F50 10%lgepal	ASTM D1693	1000	hr
Hardness	Standard	Value	Unit
Shore hardness D 15s	ASTM D2240	54
Mechanical behavior	Standard	Value	Unit
Tensile strength flow yield 50mm/min	ASTM D638	19	MPa
Tensile strength flow break 50mm/min	ASTM D638	39	MPa
Elongation yield 50mm/10min	ASTM D638	10	%
Elongation break 50mm/min	ASTM D638	790	%
Flexural modulus 1% secant 1.3mm/min	ASTM D790	550	Mpa
Thermal	Standard	Value	Unit
Vicat softenting temperature	ASTM D1525	120	℃
Melting temperature peak	Internal method	123	℃
Electrical properties	Standard	Value	Unit
Volume resistivity 500V	IEC 62631	7.5E+14	Ω·cm
Dielectric constant 1MHz	IEC 62631-2-1	2.28
Dielectric factor 1MHz	IEC 62631-2-1	0.00013

⚠️The technical data sheet (TDS) of ExxonMobil Exceed Flow m 0535.MC Wire & Cable metallocene linear low density polyethylene resin (PEBDL-m material) from ExxonMobil, if there are differences, please refer to the official website of ExxonMobil.

 Partners

We have established long-term relationships with 80+ well-known  companies around the world

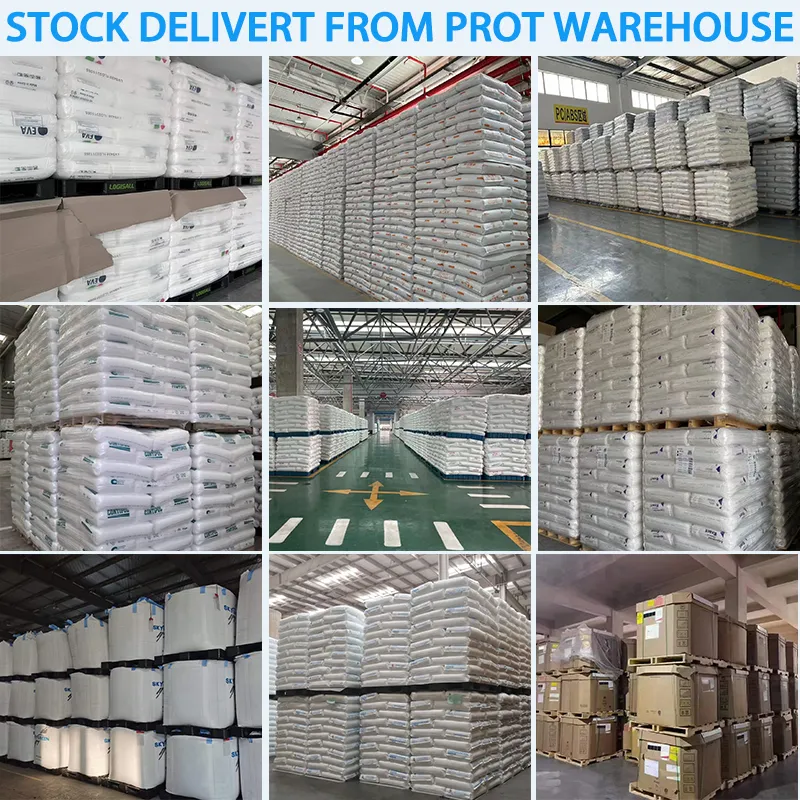

 Warehouse And Shipping
