BASF Ultramid A3X2G5 PA 66 | GF25

Material attribution: ·25% glass fiber reinforced ·Red phosphorus flame retardant

Package: 25KG/Bag

Process: Injection molding

Application: Electrical parts

Get Quotation

BASF Ultramid A3X2G5 PA 66 pellet Description

Ultramid A3X2G5 is a 25% glass fiber reinforced polyamide 66 resin pellet produced by BASF. Also known as"GF25 PA 66"or"GF nylon 66,"this material has excellent mechanical properties, strong rigidity, and good electrical insulation. It also contains a red phosphorus flame retardant, which provides good flame retardancy. A3X2G5 nylon 66 is often used in the production of electrical components.

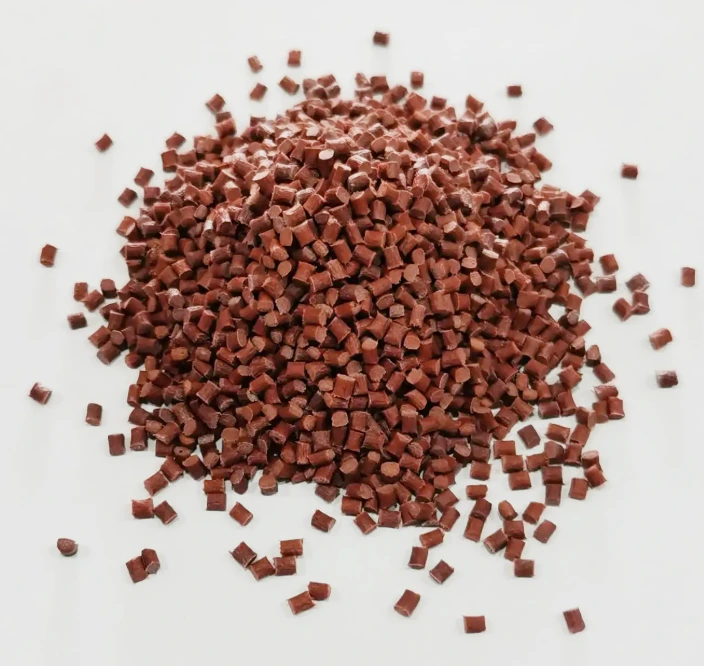

⚠️Please note that BASF A3X2G5 PA 6,6 contains red phosphorus flame retardants. As shown in the image on the left, its natural color is an opaque dark red, which may result in significant color differences when used in light-colored products. Therefore, its use in light-colored or white applications is not recommended.

Available in natural color and black

BASF Ultramid A3X2G5 PA 66 pellet Advantage

GF25 PA material, Ultramid A3X2G5 PA 66 material contains 25% glass fiber reinforcement, giving it higher rigidity, hardness and flame retardancy
Red phosphorus flame retardant system: Compared with conventional flame retardant ingredients, the red phosphorus flame retardant ingredient contained in Ultramid A3X2G5 PA 66 material has a better flame retardant effect and also meets environmental requirements. Without adding any additional flame retardants, the UL94 V-0 5VA flame retardant effect can be achieved at a test thickness of 3.0mm.
High heat resistant nylon material. Compared with conventional nylon materials, A3X2G5 PA 66 has stronger high-temperature resistance. The heat deformation temperature under the test pressure of 1.8MPa reaches 240℃. It can work in a high-temperature environment of 157℃ for more than 5000 hours. It is suitable for high-heat electrical parts such as relays and circuit breakers.
Excellent mechanical properties. Due to the reinforcement of glass fiber, Ultramid A3X2G5 nylon 66 material has a tensile modulus of up to 8000MPa and a flexural modulus of 7000MPa in the dry state. Its strong mechanical strength makes it widely used in high-performance engineering fields.

Why choose Baiyou as BASF Ultramid A3X2G5 PA 66 pellets supplier?

Leading glass fiber filled polyamide 66 resin pellets supplier (GF25 Nylon) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
Fastest Arrival, with warehouses in multiple ports
1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
Free Samples for production testing
Wholesale price, even a piece of goods is based on the wholesale price

Key Attributes

BASF Ultramid A3X2G5 PA 66
Product information
Manufacturer		BASF corporation
Part Marking Code		>PA 66 material<
Material Shape		·PA 66 pellets
Flame retardant		·HB V-0 5VA
Viscosity		Low viscosity
Material Attribute		·25% glass fiber reinforced ·Red phosphorus ·Injection molding grade ·Heat stabilized grade
Specification		·UL ·UL-426C F2
Features		·High flow ·Good mechanical properties ·High stiffness ·Good electrical properties
Additives		·Flame retardant agent of red phosphorus ·Mold release
Physical properties	Standard	Value		Unit
Density	ISO 1183	1.34		g/cm³
Shrinkage	Internal method	0.55		%
Shrinkage flow	ISO 294	0.39		%
Shrinkage xflow	ISO 294	1.04		%
Water absorption 23℃ saturation in water	ISO 62	5.7~6.3		%
Melt index 275℃ 5kg	ISO 1133	30		cm³/10min
Viscosity number 0.5% in 96% H2SO4	ISO 307	140		cm³/g
Mechanical behavior	Standard	Dry	Wet	Unit
Tensile modulus	ISO 527	8000	6000	MPa
Tensile strength break	ISO 527	140	100	MPa
Elongation break	ISO 527	3	4.5	%
Tensile creep modulus 1000hr 23℃ 0.5% strain	ISO 899		3500	MPa
Flexural modulus	ISO 178	7100		MPa
Izod notch impact 23℃	ISO 180	12	17	kJ/㎡
Charpy notch impact 23℃ 1eA	ISO 179	13	17	kJ/㎡
Charpy un-notch impact 23℃	ISO 179	65	70	kJ/㎡
Charpy un-notch impact -30℃	ISO 179	60	65	kJ/㎡
Thermal	Standard	Value		Unit
Heat deflection temperature (HDT) 1.8MPa	ISO 75	240		℃
Heat deflection temperature (HDT) 0.45MPa	ISO 75	250		℃
Melting temperature DSC	ISO 11357	260		℃
CLE Flow 23~80℃	ISO 11359	2.5E-5~3.5E-5		m/m/K
CLE xFlow 23~80℃	ISO 11359	6E-5~8E-5		m/m/K
Heat conductivity coefficient	DIN 52612	0.33		W/(m·K)
Specific heat	Internal method	1500		J(kg·K)
Service temperature short time	Internal method	220		℃
Service temperature 5000hr	IEC 60216	157		℃
Service temperature 20000hr	IEC 60216	139		℃
Electrical properties	Standard	Dry	Wet	Unit
Volume resistivity	IEC 62631	1E+13	1E10	Ω·cm
Surface resistivity	IEC 62631-3-2		1E10	Ω
Dielectric strength 60601mm K20/K20	IEC 60243	33	30	KV/mm
Dielectric constant 1MHz	IEC 62631-2-1	3.7	5
Dissipation factor 1MHz	IEC 62631-2-1	0.02	0.1
CTI solution A	IEC 60112	500		V
Flammability	Standard	Value		Unit
Flame rating natural color / Black 0.40mm	UL94	HB
Flame rating natural color / Black 0.60mm	UL94	HB
Flame rating natural color / Black / Gray 0.81mm	UL94	V-0
Flame rating natural color / Black / Gray 1.5mm	UL94	V-0
Flame rating natural color / Black / Gray 3.0mm	UL 94	V-0 5VA
GWFI 0.8mm	IEC 60695	960		℃
Limiting oxygen index	ISO 4589	27		%
Injection molding	Standard	Value		Unit
Melt temperature		280~300		℃
Mould temperature		60~90		℃

⚠️BASF Ultramid A3X2G5 Nylon 66 material specifications from BASF Corporation, if there are any differences, please refer to the official BASF website for details
