DIC.PPS FZ-1140-D5 PPS | GF40

Material attribute: 40% glass fiber reinforced

Package: 25 KG/Bag

Get Quotation

DIC.PPS FZ-1140-D5 GF40 PPS Description

DIC.PPS FZ-1140-D5 is 40% glass fiber reinforced polyphenylene sulfide (GF40 PPS material) manufactured by DIC Corporation. Compared to DIC.PPS FZ-1140, it exhibits reduced flash, making it suitable for the production of connectors.

The DIC.PPS FZ-1140-D5 we supply is available in two standard colors: Natural Color (Blown) and Black (Opaque Black).

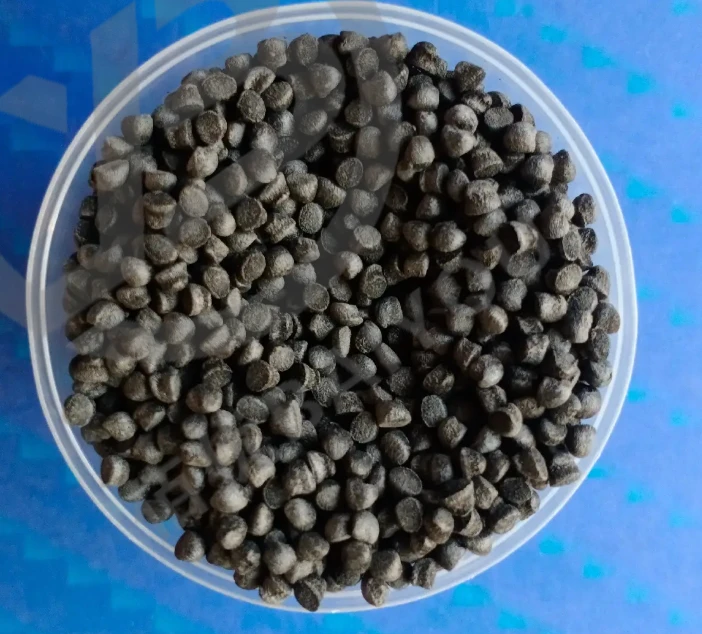

As shown in the image on the left, DIC.PPS FZ-1140-D5 Black has a rough surface due to its 40% glass fiber content, with a shape resembling a hemisphere
Please contact us if you require a custom color.👉+86 15837933829

DIC.PPS FZ-1140-D5 GF40 PPS Advantage

GF40 PPS, DIC.PPS FZ-1140-D5 PPS is reinforced with 40% glass fiber, giving it superior rigidity, strength, dimensional stability, and high-temperature resistance compared to conventional polyphenylene sulfide materials. Its tensile modulus reaches 17 GPa and its flexural modulus 16.5 GPa, far exceeding those of standard PPS, making it suitable for applications requiring high load-bearing capacity.
UL 94 V-0 plastic. DIC.PPS FZ-1140-D5 GF40 PPS achieves UL 94 V-0 flame retardancy at a thickness of just 0.36 mm, making it suitable for thin walled products that require high-performance flame retardancy, such as connectors.

Why choose Baiyou as DIC.PPS FZ-1140-D5 GF40 PPS supplier?

Leading polyphenylene sulfide supplier (PPS material) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
Fastest Arrival, with warehouses in multiple ports
1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
Free Samples for production testing
Wholesale price, even a piece of goods is based on the wholesale price

Key Attributes

DIC.PPS FZ-1140-D5 PPS
Product information
Manufacturer		DIC corporation
Other Certificates		MSDS
Part Marking Code		>PPS material<
Color		·Natural color ·Black
Material Shape		PPS Pellets
Process		Injection molding
Features		·GF40 reinforced
Physical properties	Standard	Value	Unit
Density	ISO 1183	1670	kg/m³
Mold shrinkage	ISO 294	0.3-0.7	%
Water absorption 23℃ 24 hrs	ISO 62	0.02	%
Mechanical behavior	Standard	Value	Unit
Tensile strength	ISO 527	2700	MPa
Tensile modulus	ISO 527	17.0	GPa
Tensile strain at break	ISO 527	1.6	%
Flexural strength	ISO 178	300	MPa
Flexural modulus	ISO 178	16.5	GPa
Flexural strain at flexural strength	ISO 178	1.9	%
Impact	Standard	Value	Unit
Charpy notched impact strength	ISO 179/1eA	10	kJ/㎡
Charpy unnotched impact strength	ISO 179/1eU	50	kJ/㎡
Thermal	Standard	Value	Unit
Temperature of deflection under load, 1.8 MPa	ISO 75	270	°C
Co-eff. of linear thermal expansion, -50~50℃	ISO 11359	1.5/4.0	10⁻⁵/K
Co-eff. of linear thermal expansion, 100~200℃	ISO 11359	1.5/10.5	10⁻⁵/K
Electrical	Standard	Value	Unit
Electric strength 1.0 mm	IEC 60243	25	kV/mm
Volume resistivity	IEC 62631	10¹⁶	Ω.cm
Dielectrics dissipation factor, 1MHz	IEC 62631	0.003	kV/mm
Comparative tracking index (CTI)	IEC 60112	175	V
Relative permittivity,1 MHz	IEC 60250	2.7
Flame retardant	Standard	Value	Unit
UL recognized, 94V-0 Flame Class Rating	UL 94	0.36	mm
Injection molding guidance	Standard	Value	Unit
Cylinder temperature		300-340	℃
Mold temperature		130-150	hrs
