TOSOH SUSTEEL GS-40 11A3 PPS | GF40

Material attribute: ·GF40 reinforced ·Low flash

Package: 25 KG/Bag

Get Quotation

TOSOH SUSTEEL GS-40 11A3 GF40 PPS Description

SUSTEEL GS-40 11A3 is polyphenylene sulfide (PPS) resin manufactured by Japan TOSOH Corporation. It contains 40% glass fiber reinforcement and is also known as GF40 PPS material. This material is designed for general-purpose applications, features low flash, and produces finished products with excellent appearance and performance.

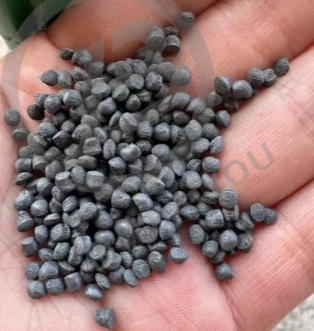

SUSTEEL GS-40 11A3 GF40 PPS resin is manufactured at TOSOH Corporation’s plant in Japan. It is available in two standard colors: natural and black. As shown in the image on the left, the black PPS material consists of opaque black pellets that are roughly hemispherical in shape.

Because it contains 40% glass fiber, the material has a distinctly rough texture.

If you would like to customize other colors, please contact us.

TOSOH SUSTEEL GS-40 11A3 GF40 PPS Advantage

GF40 PPS material, TOSOH GS-40 11A3 contains 40% glass fiber (GF40 PPS), compared to unfilled PPS resin, offers superior heat resistance, dimensional stability, and strength. Its tensile strength reaches 170 MPa, and its flexural modulus reaches 14.5 GPa, far exceeding that of conventional plastic materials,making it more suitable for use in demanding applications.

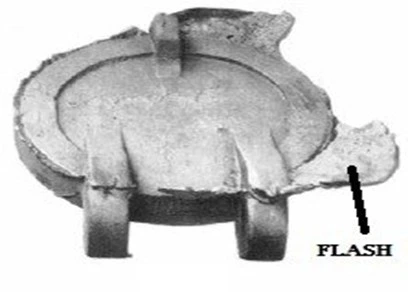

Low flash. TOSOH GS-40 11A3 GF40 PPS material offers further improvements in processability, with melt flow index (MFI) of 22 g/10 min and bar flow length of 170 mm, effectively reducing flash defects in finished products (as shown in the figure below).

Why choose Baiyou as TOSOH SUSTEEL GS-40 11A3 GF40 PPS supplier?

Leading polyphenmylene sulfide resin supplier (PPS material) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
Fastest Arrival, with warehouses in multiple ports
1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
Free Samples for production testing
Wholesale price, even a piece of goods is based on the wholesale price

Key Attributes

TOSOH SUSTEEL GS-40 11A3 PPS
Product information
Manufacturer		TOSOH corporation
Other Certificates		MSDS
Part Marking Code		>PPS material<
Color		·Natural color ·Black
Material Shape		PPS Pellets
Process		Injection molding
Features		·GF40 reinforced ·Low flash
Physical properties	Standard	Value	Unit
Density	ISO 1183	1660	kg/m³
Melt flow rate, MFR	ISO 1133	22	g/10min
Mold shrinkage, MD	TOSOH METHOD	0.3	%
Mold shrinkage, TD	TOSOH METHOD	0.7	%
Water absorption 24h	ISO 62	0.02	%
Mechanical behavior	Standard	Value	Unit
Tensile strength	ISO 527	170	MPa
Tensile strain at break	ISO 527	1.5	MPa
Tensile weld strength	ASTM D638	53	%
Flexural strength	ISO 178	270	MPa
Flexural modulus	ISO 178	14.5	GPa
Rockwell hardness	ISO 2039-2	R123
Impact	Standard	Value	Unit
Charpy notched impact strength	ISO 179	9.5	kJ/㎡
Thermal	Standard	Value	Unit
Temperature deflection under load 0.45 MPa	ISO 75	＞260	℃
Temperature deflection under load 1.82 MPa	ISO 75	＞260	℃
Coeeicient of linear thermal expansion, MD	ISO 11359-2	2.2	1E⁻⁵/K
Coeeicient of linear thermal expansion, TD	ISO 11359-2	2.2	1E⁻⁵/K
Electrical	Standard	Value	Unit
Electric strength	IEC 60243	16	MV/m
Arc resistance	ASTMD 495	35	s
Relative permittivity,1 MHz	IEC 60250	3.9
Flame retardant	Standard	Value	Unit
UL recognized, 94V0 Flame Class Rating	UL 94	0.38	mm
