solvay ryton r-4-200bl blakc polyphenylene sulfide

Solvay Ryton R-4-200BL PPS

Material attribute: 40% glass fiber reinforced

Package: 25 KG/Bag

Applications: Automotive parts

Get Quotation

Solvay Ryton R-4-200BL PPS Description

Ryron R-4-200BL is a polyphenylene sulfide (PPS) material produced by Solvay Specialty Polymers. It is reinforced with 40% glass fiber—also known as"GF40 PPS"—and offers high strength, making it suitable for automotive applications.

The Ryton R 4 200BL PPS material we supply comes from Solvay Specialty Polymers’ plant in the United States.

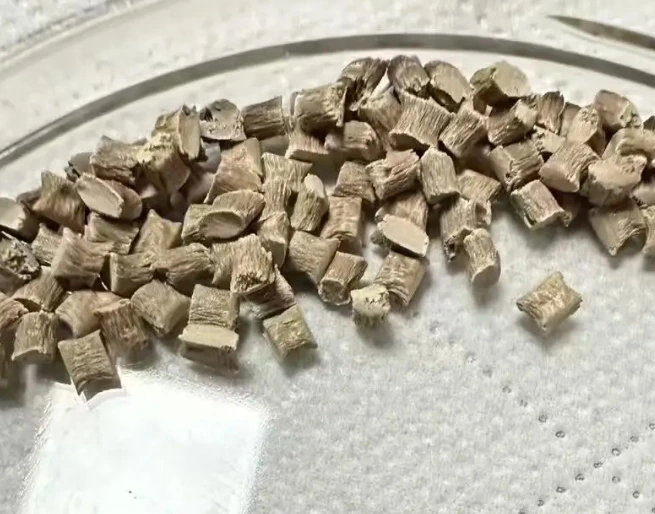

The appearance of the Ryton R 4 200NA natural PPS material, as shown in the image on the left, is that of brown, pillow-shaped pellets. Because it contains 40% glass fiber, the surface is not smooth and has a noticeably rough texture. If you require Ryton R 4 200BL black PPS material or a custom color, please contact us. 👉+86 15837933829

Solvay Ryton R-4-200BL PPS Advantage

GF40 PPS material, Ryton R 4 200 PPS contains 40% glass fiber reinforcement, giving it superior temperature resistance, strength, dimensional stability, and rigidity compared to conventional polyphenylene sulfide materials.
Ultra-high strength, Ryton R-4-200NA / Ryton R-4-200BL have flexural modulus of 14,500 MPa and flexural strength of 255 MPa, far exceeding those of conventional engineering plastics such as nylon and PC resin. Their exceptionally high strength makes them particularly suitable for mechanical components subjected to high loads.
Automotive application PPS. Ryton R-4-200 PPS material, with its outstanding performance, is widely used in automotive applications. It has been certified by Chrysler MS-DB-570 CPN3502 ,Ford WSG-M4D807-A3and Ford WSL-M4D807-A for PPS materials and can be used directly without the need for secondary certification.

Why choose Baiyou as Solvay Ryton R-4-200BL PPS supplier?

Leading polyphenylene sulfide supplier (PPS material) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
Fastest Arrival, with warehouses in multiple ports
1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
Free Samples for production testing
Wholesale price, even a piece of goods is based on the wholesale price

Key Attributes

Solvay Ryton R-4-200BL PPS
Product information
Manufacturer		Solvay specialty polymer
Other Certificates		MSDS
Part Marking Code		>PPS material<
Color		·Natural color ·Black
Material Shape		PPS Pellets
Process		Injection molding
Features		·GF40 reinforced ·Good strength
Automotive specifications		·Chrysler MS-DB-570 CPN3502 color: Black ·Ford WSL-M4D807-A ·Ford WSG-M4D807-A3 color: Black
Applications		Automotive applications
Physical properties	Standard	Value	Unit
Density	ASTM D792	1680	kg/m³
Melt volume rate, MVR at 300℃/1.2kg	ISO 1133	21	cm³/10min
Mold shrinkage, flow, 3.2 mm		0.2	%
Mold shrinkage, xflow, 3.2 mm		0.5	%
Water absorption 23℃ 24hr	ASTM D570	0.02	%
Mechanical behavior	Standard	Value	Unit
Tensile strength	ISO 527	185	MPa
Tensile elongation, break	ISO 527	1.5	%
Poisson's ratio	ISO 527	0.4
Rockwell hardness, M-Scale	ASTM D785	100	MPa
Rockwell hardness, R-Scale	ASTM D785	120	MPa
Impact	Standard	Value	Unit
Izod impact notched, 3.18 mm	ISO 180/1A	8	kJ/㎡
Izod impact unnotched, 3.18 mm	ISO 180	35	kJ/㎡
Thermal	Standard	Value	Unit
Deflection Temperature under load, unannealed, 1.8 MPA	ASTM D648	265	°C
Vicat Softening Temperature, rate B/120	ISO 306	141	°C
Thermal conductivity		0.33	W/m/K
CTE, -50℃ to 50℃, flow	ASTM E831	1.5E-5	cm/cm/℃
CTE, 100℃ to 200℃, flow	ASTM E831	1.0E-5	cm/cm/℃
CTE, -50℃ to 50℃, transverse	ASTM E831	4.0E-5	cm/cm/℃
CTE, 100℃ to 200℃, transverse	ASTM E831	8.5E-5	cm/cm/℃
Electrical	Standard	Value	Unit
Volume resistivity	ASTM D257	1.0E+16	ohms·cm
Surface resistivity	ASTM D257	1.0E+16	ohms
Dielectrics strength	ASTM D149	22	kV/mm
Dielectrics constant, 25℃ 1 kHz	ASTM D150	2.0E-3
Dielectrics constant, 25℃ 1 MHz	ASTM D150	2.0E-3
Arc resistance	ASTM D495	125	sec
Dissipation factor, 25℃ 1 kHz	ASTM D150	2.0E-3
Dissipation factor, 25℃ 1 MHz	ASTM D150	2.0E-3
Comparative tracking index (CTI)	UL 746	PLC 4
Comparative tracking index (CTI)	IEC 60112	175	V
Insulation resistance, 90℃		1.0E+11	ohms
Flame retardant	Standard	Value	Unit
UL recognized, V-0 / 5VA Flame Class Rating	UL 94	1.6	mm
Oxygen index (LOI)	ISO 4589	57	%
