EMS Grilamid TR 55 PA12 | Transparent

Material attribute: ·Transparent ·Food contact ·Drink water contact

Package: 25KG/Bag

Process: Injection molding nylon

Get Quotation

EMS Grilamid TR 55 PA 12 / MACMI Description

Grilamid TR 55 is highly transparent nylon material produced by EMS-Grivory. As a new-generation high-performance polymer, EMS TR 55 PA 12 offers excellent optical properties, as well as resistance to fuel, chemical solvents, abrasion, scratches, and stress cracking. It also is suitable for food contact and medical applications, making it a highly versatile material.

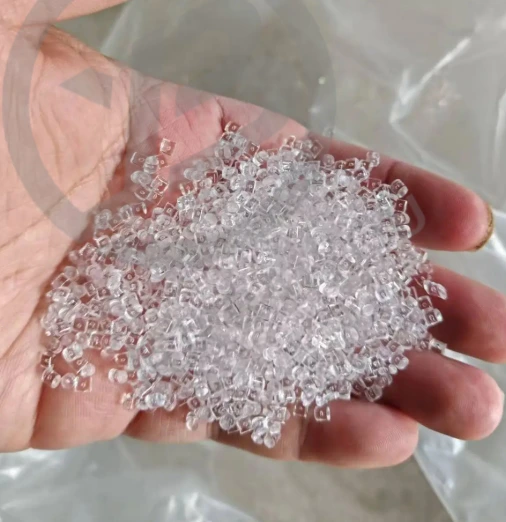

Grilamid TR 55 PA12 is a highly transparent nylon material. As shown in the image on the left, its transparency is similar to that of PMMA resin, and it is cylindrical in shape.

If you would like a custom color, please contact us.👉+86 15837933829

EMS Grilamid TR 55 PA 12 / MACMI Advantage

Excellent transparency, EMS TR 55 is transparent nylon material formed by the copolymerization of PA 12 and MACMI (a derivative of m-xylene diamine and adipic acid). Its amorphous structure gives the material excellent transparency and light transmission (Transparency is 87% at a test thickness of 3 mm); its optical properties even surpass those of polycarbonate (PC, transparency 87%) and approach those of PMMA (transparency 91%). Meanwhile, its abrasion resistance and resistance to chemical solvents also surpass those of traditional polymer materials.
Excellent mechanical properties. As a new-generation high-performance polymer, EMS Grilamid TR 55 PA12 delivers outstanding performance in terms of tensile strength and long-term creep resistance. Compared to other nylon materials, TR 55 PA12 has lower water absorption and moisture absorption rates, resulting in finished products with excellent dimensional stability, making it ideal for the production of precision parts.
Medical grade material. Grilamid TR 55 PA 12 / MACMI material offers excellent biocompatibility and has been certified under USP Class VI,ISO 10993andFDAfor drug contact, making it suitable for general medical device applications.
Food contact plastic. EMS TR 55 transparent nylon 12 meets FDA and EU food contact certification requirements. The material offers excellent food contact safety performance and is suitable for applications involving direct contact with food.

Why choose Baiyou as EMS Grilamid TR 55 PA 12 /MACMI supplier?

Leading transparent nylon supplier (PA 12 /MACMI material) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
Fastest Arrival, with warehouses in multiple ports
1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
Free Samples for production testing
Wholesale price, even a piece of goods is based on the wholesale price

Key Attributes

EMS Grilamd TR 55 PA 12
Product information
Manufacturer		EMS-Grivory
Other Certificates		MSDS
Part Marking Code		>PA 12/MACMI material<
Color		Natural color
Material Shape		PA 12/MACMI Pellets
Flame retardant		UL 94 V-2
Certificated		·USP VI ·ISO 10993 ·FDA ·NSF 61 ·KTW ·WARS ·DVGW W270
Process		·Injection molding ·Other extrusion
Features		·Transparent ·FDA certificated ·Food contact ·Drink water contact
Application		·Automotive ·Electricals & Electronics ·Industry & Consumer goods ·Optics ·Packaging
Physical properties	Standard	Value		Unit
Density	ISO1 1183	1060		kg/m³
Water absorption	ISO 62	3.5		%
Humidity absorption	ISO 62	1.5		%
Molding shrinkage, parallel	ISO 294-4	0.6		%
Molding shrinkage, normal	ISO 294-4	0.7		%
Mechanical behavior	Standard	Dry	Cond	Unit
Tensile Modulus	ISO 527	2300	2200	MPa
Yield stress	ISO 527	80	75	MPa
Yield strain	ISO 527	7	9	%
Nominal strain at break	ISO 527	＞50	＞50	%
Charpy impact strength, 23℃	ISO 179/1eU	N	N	kJ/㎡
Charpy impact strength, -30℃	ISO 179/1eU	N	N	kJ/㎡
Charpy notched impact strength, 23℃	ISO 179/1eA	8	8	kJ/㎡
Charpy notched impact strength, 23℃	ISO 179/1eA	7	7	kJ/㎡
Thermal	Standard	Value		Unit
Vicat Softening Temperature 50℃/h 50N	ISO 306	135		°C
Glass transition temperature, 10℃/min	ISO 11357-1/-2	160		°C
Temperature of deflection under load, 1.80MPa	ISO 75-1/-2	130		°C
Temperature of deflection under load, 0.45MPa	ISO 75-1/-2	145		°C
Coefficient of linear thermal expansion, parallel	ISO 11359-1/-2	80		E-6/K
Coefficient of linear thermal expansion, normal	ISO 11359-1/-2	80		E-6/K
Burning behavior at thinkness 0.8mm	IEC 60695-11-10	HB
Electrical properties	Standard	Dry	Cond	Unit
Volume resistivity	IEC 62631-3-1	1E11	1E11	Ohm*m
Surface resistivity	IEC 62631-3-2		1E12	Ohm*m
Electric strength	IEC 60243-1	31	31	kV/mm
Comparative tracking index	IEC 60112		600
Test specimen production	Standard	Value		Unit
Injection molding, melt temperature	ISO 294	295		℃
Injection molding, mold temperature	ISO 294	80		℃
Injection molding, injection velocity	ISO 294	250		mm/s
Injection molding, pressure at hold	ISO 294	75		MPa
