victrex 450gl30 peek pellets

Victrex 450GL30 PEEK | GF30 reinforced

Applications: ·Medical healthcare applications ·Non-specif food applications

Process: Injection Molding/ Extrusion molding

Packing: 25KG/Bag
Get Quotation

 Victrex 450GL30 PEEK Description

Victrex 450GL30 polyetheretherketone is a high-performance thermoplastic suitable for injection molding and extrusion molding, contains 30% glass fiber reinforcement and has super strength; low expansion coefficient, dimensional stability; chemical corrosion and steam sterilization resistance, suitable for medical and food contact applications

victrex 450gl30 gf30 peek

PEEK reinforced with Victrex 450GL30 GF30 is supplied by several vendors, but we give priority to the material supplied by Victrex High Performance Material (Shanghai).

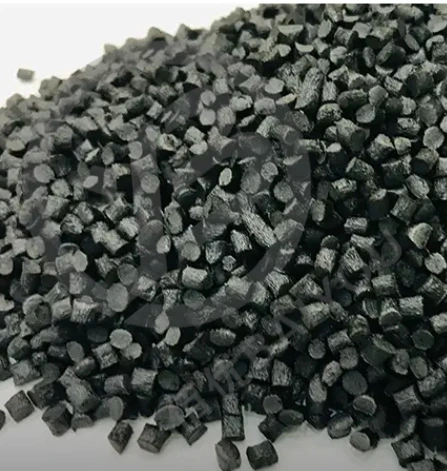

As shown in the figure on the left, Victrex 450GL30 GF30 Black PEEK consists of opaque black cylindrical pellets; due to its 30% glass fiber content, the surface appears rough.

Victrex 450GL30 PEEK Advantage

  • GF30 PEEK material. Victrex 450GL30 polyetheretherketone material contains 30% glass fiber, which further enhances the impact resistance of the material, with a tensile modulus of 11.5GPa and a flexural modulus of 11GPa. The super rigidity and strength enable Victrex 450GL30 PEEK to maintain excellent mechanical properties in extreme environments.
  • Excellent dimensional stability. Under extreme test conditions, the water absorption of Victrex 450GL30 PEEK material remains at an extremely low value. The product size is extremely stable, with a deformation range of ≤0.5%, which is suitable for use in the field of precision and complex parts with very demanding dimensional requirements.
  • Low wear plastic material. Due to the addition of 30% glass fiber, 450GL30 PEEK is more wear-resistant than conventional polyetheretherketone materials, and is suitable for applications with high wear requirements or in abrasive environments for a long time.
  • High food contact safety performance. Victrex 450GL30 PEEK has passed FDA-related tests and can be used in food contact applications and medical care applications

Why choose Baiyou as Victrex 450GL30 PEEK pellets supplier?

  • Leading Polyetheretherketone supplier (PEEK resin) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
  • Fastest Arrival, with warehouses in multiple ports
  • 1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
  • Free Samples for production testing
  • Wholesale price, even a piece of goods is based on the wholesale price
 Key Attributes
Victrex 450GL30 PEEK
Product information
Manufacturer
Victrex plc
Part Marking Code
>PEEK material<
Color·Natural color ·BG
Material Shape
·PEEK pellets ·PEEK powder
Process
Injection molding PEEK material
Extrusion molding PEEK material
Flame retardantV-0
Material Attribute
·Food contact grade ·Medical grade ·30% glass fiber reinforced
·Flame retardant
Specification·FDA ·Food contact ·Unspecified rating ·UL
Features
·Semi crystalline ·High stiffness ·High strength ·Low friction
·Chemical resistance ·Good sterilizability
Application
·Medical healthcare applications ·Non-specif food applications
Physical properties
Standard
Value
Unit
Density
ISO 1183
1.51
g/cm³
Shrinkage flow 375℃ mold temperature:180℃
ISO 294
0.3
%
Shrinkage xflow 375℃ mold temperature:180℃
ISO 294
0.9
%
Water absorption 23℃ saturation in waterISO 620.3%
Water absorption 100℃ saturation in waterISO 620.45%
Melt Viscosity 400℃
ISO 11443
550Pa·s
Spiral flow 375℃ temperature:180℃ 1.0mmInternal method85mm
Hardness
Standard
Value
Unit
Shore hardness D 23℃ISO 86887.5
Mechanical behavior
Standard
Value
Unit
Tensile modulus 23℃
ISO 527
11.5
GPa
Tensile strength break 23℃
ISO 527
185
MPa
Tensile strength break 125℃ISO 527115MPa
Tensile strength break 175℃ISO 52760MPa
Tensile strength break 275℃ISO 52735MPa
Elongation break 23℃
ISO 527
2.8
%
Flexural strength 23℃ISO 178275MPa
Flexural strength 125℃ISO 178190MPa
Flexural strength 175℃ISO 17880MPa
Flexural strength 275℃ISO 17850MPa
Flexural modulus 23℃ISO 17811GPa
Izod notch impact 23℃ISO 18012kJ/㎡
Izod un-notch impact 23℃ISO 18065kJ/㎡
Charpy Notch impact 23℃
ISO 179
8.0
kJ/㎡
Charpy un-Notch impact 23℃
ISO 179
55
kJ/㎡
Compressive strength 23℃
ISO 604
250MPa
Compressive strength 120℃
ISO 604
160MPa
Compressive strength 200℃ISO 60455MPa
Thermal
Standard
Value
Unit
HDT 1.8MPa
ISO 75
328
℃
Melting temperature
ISO 11357
343
℃
Glass transition temperature onsetISO 11357143℃
Glass transition temperature midsetISO 11357150℃
CLE Flow below Tg
ISO 11359
1.8E+1μm/m/℃
CLE below TgISO 113594.5E+1μm/m/℃
CLE Flow above TgISO 113591.8E+1μm/m/℃
CLE above TgISO 113591.1E+2μm/m/℃
Heat conductivity coefficient 23℃ flowISO 220070.35W/(m·K)
Heat conductivity coefficient 23℃ISO 220070.30W/(m·K)
Electrical properties
Standard
Value
Unit
Volume resistivity 23℃
IEC 60093
1E+16
Ω·cm
Dielectric strength 2.0mm
IEC 60243
25
KV/mm
Dielectric constant 23℃ 1KHz
IEC 60250
3.2

Dissipation Factor 23℃ 1MHz
IEC 60250
0.005

CTI
IEC 60112
150
V
Flammability
Standard
Value
Unit
Flame rating natural color / Black 0.50mm
UL94
V-0

Flame rating natural color / Black 0.75mmUL94V-0
Flame rating natural color / Black 1.5mmUL94V-0
Flame rating natural color / Black 3.0mm
UL94
V-0

GWFI 2mm
IEC 60695
960
℃
 Partners
We have established long-term relationships with 80+ well-known  companies around the world
  Warehouse And Shipping
20+ years' experience consultant with a supply chain of 1000+ plastic raw materials in China.
Quantity (tonnes)
1-100
100-300
>300
Lead time (days)
7-10
10-15
To be negotiated

References and Notes

  1. Victrex,"Victrex PEEK polymer 450GL30 GF30 PEEK", Victrex lnc, 06/08/2026
