BASF Ultramid A3WG6 PA66 | GF30

Material attribute: ·Heat stability ·Glass fiber reinforced · Dimension stability

Package: 25KG/Bag

Viscosity: Low viscosity

Get Quotation

BASF Ultramid A3WG6 PA66 Description

BASF A3WG6 is a polyamide 66 resin containing 30% glass fiber reinforcement, also known as"GF30 Nylon 66"or"GF30 PA66 material."It offers excellent high-temperature resistance, strong dimensional stability, high mechanical strength and good flexibility. Resistant to most chemical solvents, it is suitable for mechanical components such as lamp holders and cooling fans, as well as automotive parts.

Ultramid A3WG6 GF30 PA 6,6 is manufactured at multiple plants; we give priority to the product supplied by BASF (China) company.

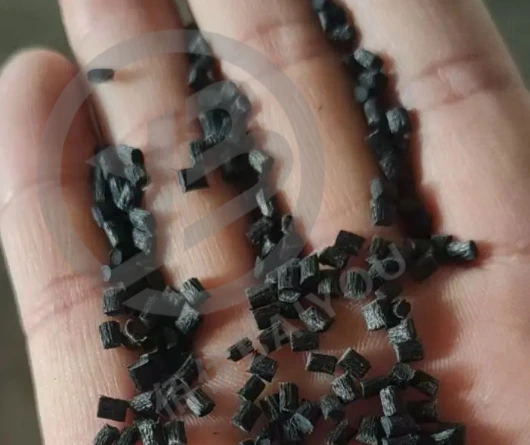

As shown in the image on the left, BASF A3WG6 nylon 66 material consists of approximately cylindrical pellets. Due to the 30% glass fiber content, the surface is relatively rough. The standard color is opaque black; please contact us if you require a custom color.👉 +86 15837933829

BASF Ultramid A3WG6 PA66 Advantage

Ultra heat ageing resistant PA66, Compared to other materials in the same series, such as the high-temperature-resistant nylon Ultramid A3HG6, the Ultramid A3WG6 nylon material offers superior temperature resistance, this is the most heat-resistant nylon material in the series; it has withstood long-term use in high-temperature environments of 120°C for over 2,000 days, making it particularly suitable for long-term high-temperature applications such as engines and bearings.
GF30 PA 6,6 material. Compared to unreinforced nylon materials, Ultramid A3WG6—which contains 30% glass fiber reinforcement—offers higher rigidity, strength, heat resistance, and dimensional stability, making it better suited for applications with demanding operating conditions.

Why choose Baiyou as BASF Ultramid A3WG6 PA66 supplier?

Leadinghigh temperature resistant polyamide 66 resin supplier (GF30 PA66 material) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
Fastest Arrival, with warehouses in multiple ports
1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
Free Samples for production testing
Wholesale price, even a piece of goods is based on the wholesale price

Key Attributes

BASF Ultramid A3WG6 PA66
Product information
Manufacturer		BASF corporation
Other Certificates		RoHS REACH
Part Marking Code		>GF30 PA66 material<
Material Shape		GF30 PA66 Pellets
Process		Injection molding
Viscosity		Low viscosity
Flame retardant		HB
Material attribute		·30% Glass fiber reinforced ·Injection grade ·Heat stabilized grade
specification		·UL ·UL-456 F1
Features		·Dimensional stability ·High flow ·High stiffness ·Heat aging resistant ·Oil resistant
Application		·Automotive applications ·Automotive parts ·Automotive powertrain parts ·Electiically insulating parts ·Housing ·Machine/mechanical parts ·Aluminum windows frames ·Insulating profiles ·Lamp socket housings ·Cooling fan
Additives		·Heat stabilizer ·Lubricant ·Mold releases
Physical properties	Standard	Value		Unit
Density	ISO 1183	1360		kg/m³
Linear mold shrinkag, flow at 23℃l	ISO 294	0.43		%
Water absorption at saturation at 23℃	ISO 62	5.2-5.8		%
Moisture absorption at equilibrium at 23℃ 50%RH	ISO 62	1.5-1.9		%
Melt Volume flow rate (MVR) at 275℃ 50kg	ISO 1133	30		cm³/10min
Viscosity intrinsic at 23℃ 0.5% in 96H₂SO₄	ISO 1628	145		cm³/g
Mechanical behavior	Standard	Value		Unit
Flexural modulus at 23℃	ISO 178	8600		MPa
Flexural strength at 23℃	ISO 178	280		MPa
Impact strength, notched Charpy	ISO 179	13		kJ/㎡
Impact strength, notched Izod	ISO 180	11.5		kJ/㎡
Modulus of elasticity at 1000hr, 0.5%,23℃	ISO 899-1	5300		MPa
Modulus of elasticity at 23℃	ISO 527-2	10000		MPa
Tensile strain at break 23℃	ISO 527-2	3		%
Tensile strength at break 23℃	ISO 527-2	190		MPa
Thermal	Standard	Value		Unit
Heat deflection Temperature 1.8 MPa	ISO 75	250		℃
Heat deflection Temperature 0.75 MPa	ISO 75	250		℃
Melt Temperature DSC	ISO 11357	260		℃
Vicat Softening Temperature	ASTM D1525	127		°C
Heat conductivity coefficient	DIN 52612	0.35		W/(m·K)
Specific heat	Internal method	1500		J/(kg·K)
Service Temperature short time	Internal method	240		℃
Service Temperature 5000hr	IEC 60216	175		℃
Service Temperature 20000hr	IEC 60216	145		℃
Electrical properties	Standard	Dry	Wet	Unit
Volume resistivity	IEC 63631	1E+13	1E10	Ω.m
Surface resistivity	IEC 63631		1E10	Ω
Dielectric strength 0.6-0.8 mm K20/P50	IEC 60243	90	75	KV/mm
Dielectric strength 60601 mm K20/P50	IEC 60243	44	34	KV/mm
Dielectric constant 1MHz	IEC 63631-2-1	3.5	5.6
Dissipation factor 1MHz	IEC 63631-2-1	0.014	0.3
Flammabiltiy	Standard	Value		Unit
Flame rating black 0.75 mm	UL94	HB
Flame rating black 1.5 mm	UL94	HB
Flame rating black 3.0 mm	UL94	HB
