Chimei Polylac PA-709 ABS | Low temperature resistant
Material attribute: ·Low temperature resistant ·Ultra impact resistant
Package: 25KG/Bag
Process: Injection molding
Melt index:6cm³/min (at 220℃ 10kg)
Package: 25KG/Bag
Process: Injection molding
Melt index:6cm³/min (at 220℃ 10kg)

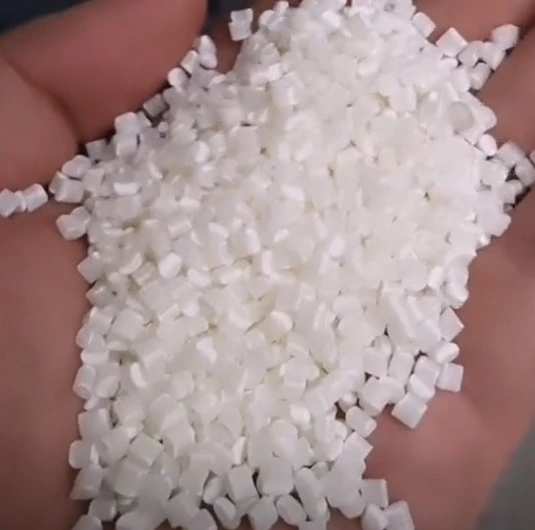

Chimei Polylac PA-709 ABS pellet Description
Polylac PA-709 is an acrylonitrile -butadiene-styrene resin pellets (ABS material) manufactured by Chimei Corporation. It exhibits excellent cold resistance and exceptional low-temperature toughness. The final products maintain superior impact resistance even when used in environments below -30°C. Chimei PA-709 ABS material is commonly used for producing motorcycle parts, helmets, pipes, and applications in high-latitude regions with significant demand for low-temperature ABS.
Chimei Polylac PA-709 ABS Advantage
- Highly impact-resistant ABS material, Compared to conventional ABS materials, Chimei 709 ABS offers superior impact resistance. Under the ISO 178 testing standard, its flexural modulus reaches 1.8 GPa after testing at 2.0 mm thickness. and an Izod notch impact strength of 37 kJ/m² at 23°C. Its impact resistance significantly surpasses that of conventional ABS materials, making it suitable for applications demanding high impact performance such as safety helmets, extruded pipes, automotive spoilers, and motorcycle fenders.
- ABS material with low-temperature impact resistance, Chimei Polylac PA-709 ABS material exhibits exceptional weather resistance, maintaining superior mechanical properties even in cold environments. At -30°C, it achieves an Izod notch impact strength of 27 kJ/m² and a Charpy notch impact strength of 29 kJ/m². Products manufactured from this material are suitable for high-latitude regions such as Russia, Sweden, and Norway.
Why choose Baiyou as Chimei Polylac PA-709 ABS pellets supplier?
- Leading low temperature resistant Acrylonitrile-Butadiene-Styrene resin pellets supplier (ABS material) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
- Fastest Arrival, with warehouses in multiple ports
- 1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
- Free Samples for production testing
- Wholesale price, even a piece of goods is based on the wholesale price
Key Attributes
| Chimei Polylac PA-709 ABS | |||
| Product information | |||
| Manufacturer | Chimei corporation | ||
| Other Certificates | ·MSDS ·RoHS ·REACH | ||
| Part Marking Code | >ABS material< | ||
| Color | Natural color | ||
| Material Shape | ABS Pellets | ||
| Process | ·Injection molding | ||
| Flame retardant | HB | ||
| Material attribute | ·Injection molding grade ·Cold resistant ABS | ||
| specification | ·RoHS ·UL | ||
| Features | ·Low flow ·High toughness ·High impact | ||
| Application | ·Construction applications ·Pipe ·Industrial applications ·Luggage ·Compound base resin ·Rods ·Sheet ·Heels | ||
| Additives | ·Lubricant ·Mold releases | ||
| Physical properties | Standard | Value | Unit |
| Density 23℃ | ASTM D792 | 1.03 | g/cm³ |
| Shrinkage | ISO 294 | 0.4~0.7 | % |
| Melt Index 200°C 5kg | ASTM D1238 | 0.5 | g/10min |
| Melt index 220℃ 10kg | ISO 1133 | 6 | cm³/10min |
| Hardness | Standard | Value | Unit |
| Shore Hardness R(Scale) | ASTM D785 | 102 | |
| Mechanical behavior | Standard | Value | Unit |
| Tensile Strength yield 6mm/min | ASTM D638 | 400 | kg/cm³ |
| Tensile Strength yield 50mm/min | ISO 527 | 40 | MPa |
| Tensile Strength break 50mm/min | ISO 527 | 31 | MPa |
| Elongation 6mm/min | ASTM D638 | 40 | % |
| Elongation 50mm/min | ISO 527 | 35 | % |
| Flexural strength 2.8mm/min | ASTM D790 | 640 | kg-cm/cm |
| Flexural strength 2.0mm/min | ISO 178 | 58 | MPa |
Flexural Modulus 2.8mm/min | ASTM D790 | 23000 | kg-cm/cm |
| Flexural Modulus 2.0mm/min | ISO 178 | 1.8 | MPa |
| Izod Notch Impact 23℃ 6.4mm | ASTM D256 | 37 | kg-cm/cm |
Izod notch impact 23℃ 3.2mm | ASTM D256 | 45 | kg-cm/cm |
| Izod notch impact 23℃ | ISO 180 | 37 | kJ/㎡ |
| Izod notch impact -30℃ | ISO 180 | 27 | kJ/㎡ |
| Charpy notch impact 23℃ | ISO 179 | 38 | kJ/㎡ |
| Charpy notch impact -30℃ | ISO 179 | 29 | kJ/㎡ |
| Thermal | Standard | Value | Unit |
| Heat deflection temperature at 1.8MPa | ISO 75 | 98 | ℃ |
Heat deflection temperature at 1.8MPa, unannealed | ISO 75 | 82 | ℃ |
| Vicat Softening Temperature 50℃/hr 10N | ASTM D1525 | 105 | °C |
| Vicat softening temperature 50℃/hr 50N | ISO 306 | 97 | ℃ |
| Flammability | Standard | Value | Unit |
| Flame rating all color 1.5mm | UL94 | HB | |
| Flame rating all color 3.0mm | UL94 | HB | |
| Injection molding | Standard | Value | Unit |
| Barrel temperature | 180~230℃ | ||
| Mold temperature | 30~70℃ | ||
| Pre-dry temperature | 80~85℃ | ||
| Pre-dry time | 2~4h | ||
⚠️The technical data sheet (TDS) of Chimei Polylac PA-709 low temperature resistant ABS material from Chimei corporation, if there are differences, please refer to the official website of Chimei.
