Eastman Tritan TX1501HF PCTG
Material attribute: ·Food contact ·Drink water contact ·Heat resistant
Package: 25KG/Bag or 610KG/Box
Process: Injection molding
Package: 25KG/Bag or 610KG/Box
Process: Injection molding
Eastman Tritan TX1501HF PCTG pellet Description
Tritan TX1501HF is a food-grade PolyCyclohexylene Dimethylene Terephthalate Glycol resin pellet (PCTG material) produced by Eastman Chemical. It has excellent optical properties, high temperature resistance, and high impact resistance. Compared with Eastman Tritan TX1001 PCTG material, it has a lower viscosity and is easier to process, making it suitable for the manufacture of thin-walled and complex products.
⚠️Please note that Eastman Tritan TX1501HF PCTG has two packaging options: bag capacity of 25kg/bag and box capacity of 610kg/box. Please contact us to confirm your needs.
Eastman Tritan TX1501HF PCTG pellet Advantage
- Food-grade plastic material. Eastman Tritan TX1501HF PCTG material complies with food contact standards and is certified by the U.S. Food and Drug Administration. It has passed the FDA NSF/ANSI 51 Food Equipment Material Certification Standard and the NSF/ANSI/CAN 61 Drinking Water System Component Health Effects Certification Requirements and can be used in the production of food contact equipment and drinking water processing equipment.
- Excellent appearance properties. Tritan TX1501HF PCTG material has a transmittance of 91% and a haze of only 1%. It can be used to replace high-transparency glass materials and is suitable for applications such as drinking water bottles that require high product transparency.
- More convenient processing, compared with the basic Tritan TX1001 PCTG material, the viscosity of TX1501HF is reduced by 40~50%. The lower viscosity property makes it easier to process and is suitable for the production of thin-walled and complex products.
- Excellent high temperature resistance. Compared with other brands of PCTG materials, the Tritan PCTG material series produced by Eastman Chemical has better high temperature resistance. The heat deformation temperature reaches 94℃ under the test environment of 0.45MPa. It can still maintain excellent performance and does not release harmful substances when holding high-temperature drinking water. Tritan TX1501HF PCTG material is very suitable for the production of high-temperature drinking water bottles.
Why choose Baiyou as Eastman Tritan TX1501HF PCTG pellets supplier?
- Leading food contact grade PolyCyclohexylene Dimethylene Terephthalate Glycol resin pellets supplier (PCTG material) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
- Fastest Arrival, with warehouses in multiple ports
- 1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
- Free Samples for production testing
- Wholesale price, even a piece of goods is based on the wholesale price
Key Attributes
| Eastman Tritan PCTG TX1501HF | |||
| Product information | |||
| Manufacturer | Eastman Chemical Company | ||
| Other Certificates | MSDS | ||
| Part Marking Code | >PCTG material< | ||
| Color | ·Natural Color Transparent | ||
| Material Shape | PCTG Pellets | ||
| Process | Injection molding | ||
| Flame Retardant | HB | ||
| Material Attribute | ·Heat resistance grade ·Hydrolysis stabilized grade ·Drinking water contact grade ·Food Contact grade | ||
| specification | FDA NSF/ANSI 51 NSF/ANSI/CAN 61 UL | ||
| Features | ·High Clarity ·Amorphous ·High flow ·High impact High toughness ·Chemical Resistant Rapid moldability Durable ·Good processability ·Copolyester | ||
| Application | ·Automotive applications ·Customer electronics ·E & E Applications ·Building materials ·Signage Appliances ·White goods & small appliances ·Lighting Applications ·Filtration media ·Housing Machinery Application ·Packaging Feeding bottle ·Infant article ·Ophthalmics applications ·Sports equipment Applications Bottles Housewares application ·Compound Base Resin ·Consumer applications ·Drinking water bottle ·Food contact applications ·Multi-layer film ·Point-of-purchase ·Profiles ·Protective coverings ·Tooling ·Safety Glasses ·Smart Card Process additive ·Outdoor applications | ||
| Additives | ·Mold Releases | ||
| UL File NO. | E118289 | ||
| Physical properties | Standard | Value | Unit |
| Density | ASTM D792 | 1.18 | g/cm³ |
| Shrinkage | ASTM D955 | 0.005~0.007 | mm/mm |
| Hardness | Standard | Value | Unit |
| Rockwell Hardness R(Scale) | ASTM D785 | 111 | |
| Mechanical behavior | Standard | Value | Unit |
| Tensile Modulus | ISO 527 | 1604 | MPa |
| Tensile Modulus | ASTM D638 | 1575 | MPa |
| Tensile Strength Yield | ISO 527 | 44 | MPa |
| Tensile Strength Break | ISO 527 | 49 | MPa |
| Tensile Strength Yield | ASTM D638 | 43 | MPa |
| Tensile Strength Break | ASTM D638 | 52 | MPa |
| Elongation Yield | ISO 527 | 7 | % |
| Elongation Break | ISO 527 | 154 | % |
| Elongation Yield | ASTM D638 | 7 | % |
| Elongation Break | ASTM D638 | 210 | % |
| Flexural Strength | ISO 178 | 60 | MPa |
| Flexural Strength Yield | ASTM D790 | 64 | MPa |
| Flexural Modulus | ISO 178 | 1502 | MPa |
| Flexural Modulus | ASTM D790 | 1575 | MPa |
| Izod Notch Impact 23°C | ISO 180 | 83 | kJ/m² |
| Izod Notch Impact -40°C | ISO 180 | 11 | kJ/m² |
| Izod Notch Impact 23°C | ASTM D256 | 860 | J/m |
| Izod Un-notch Impact 23°C | ASTM D4812 | NB | |
| Optical performance | Standard | Value | Unit |
| Transmittance Total light | ASTM D1003 | 91 | % |
| Haze | ASTM D1003 | 1 | % |
| Thermal | Standard | Value | Unit |
| HDT 0.45MPa | ASTM D648 | 94 | °C |
| HDT 1.8MPa | ASTM D648 | 81 | °C |
| Flammability | Standard | Value | Unit |
| Flame Rating All Color 1.5mm | UL94 | HB | |
| Flame Rating All Color 3.0mm | UL94 | HB | |
| UL | Standard | Value | Unit |
| UL FlameRating ALL 1.5mm | UL94 | HB | PLC |
| HWI ALL 1.5mm | UL746A | 4 | PLC |
| HAl ALL 1.5mm | UL746A | 0 | °C |
| RTI Elec ALL1.5mm | UL 746B | 95 | °C |
| RTI Imp ALL1.5mm | UL 746B | 95 | °C |
| RTI Str ALL 1.5mm | UL 746B | 95 | °C |
| UL FlameRating ALL3.0mm | UL94 | HB | |
| HWI ALL3.0mm | UL746A | 3 | PLC |
| HAI ALL3.0mm | UL746A | 0 | PLC |
| RTI Elec ALL3.0mm | UL 746B | 95 | °C |
| RTI Imp ALL3.0mm | UL 746B | 95 | °C |
| RTI Str ALL3.0mm | UL 746B | 95 | °C |
| Comparative Tracking Index | IEC60112 | 0 | PLC |
| Dielectric Strength | ASTM D149 | 25 | KV/mm |
| Volume Resistivity | ASTM D257 | 1.0E18 | Ω .cm |
| GWFI 1.5mm | IEC60695-2-12 | 850 | °C |
| GWFI 3.0mm | IEC60695-2-12 | 800 | °C |
| GWIT 1.5mm | IEC60695-2-13 | 675 | °C |
| GWIT 3.0mm | IEC60695-2-13 | 675 | °C |
| Injection molding | Standard | Value | Unit |
| Dry Temperature | 88 | °C | |
| Dry Time | 4~6 | hr | |
| Melt Temperature | 260~282 | °C | |
| Mould Temperature | 38~66 | °C | |
⚠️The technical data sheet (TDS) of Eastman Tritan TX1501HF PCTG material from Eastman chemical, if there are differences, please refer to the official website of Eastman chemical.
Partners
We have established long-term relationships with 80+ well-known companies around the world |

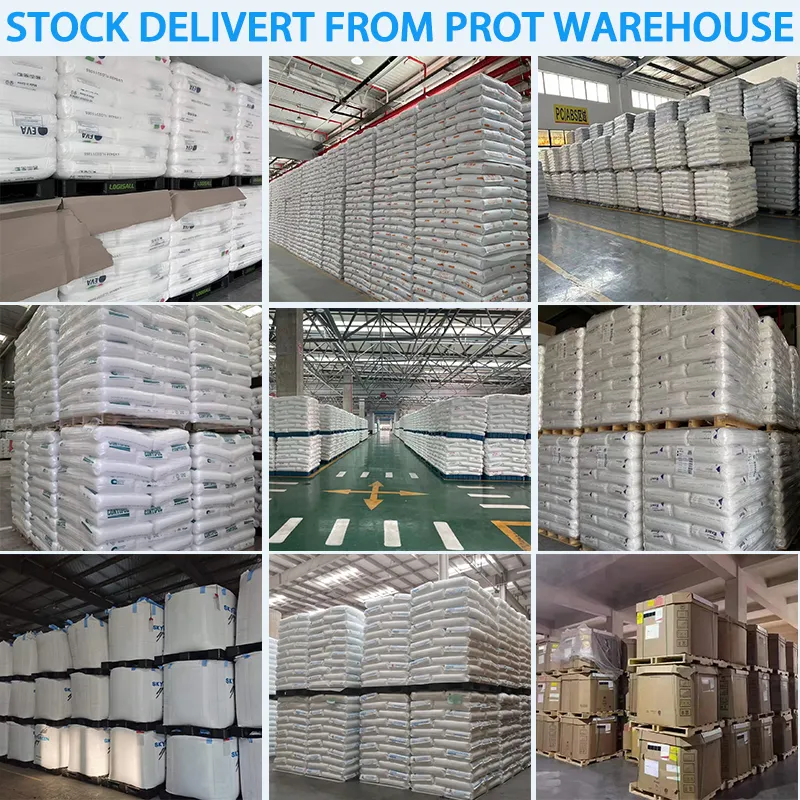

Warehouse And Shipping
