Eastman Tritan TX1001 PCTG
Material : ·Food grade ·PBA free ·Heat resistant
Package: 25KG/Bag or 610KG/Box
Package: 25KG/Bag or 610KG/Box
Eastman Tritan TX1001 PCTG pellet Description
TX1001 is a poly cyclohexanedimethylene terephthalate copolymer resin pellet produced by Eastman Chemical Company, also known as PCTG material. It has many advantages such as high transparency, high temperature resistance, not contain bisphenol A ingredients (BPA free), food grade, high toughness and impact resistance. EASTMAN Tritan TX1001 PCTG material is often used in the production of drinking water bottles, home appliance housings, etc.

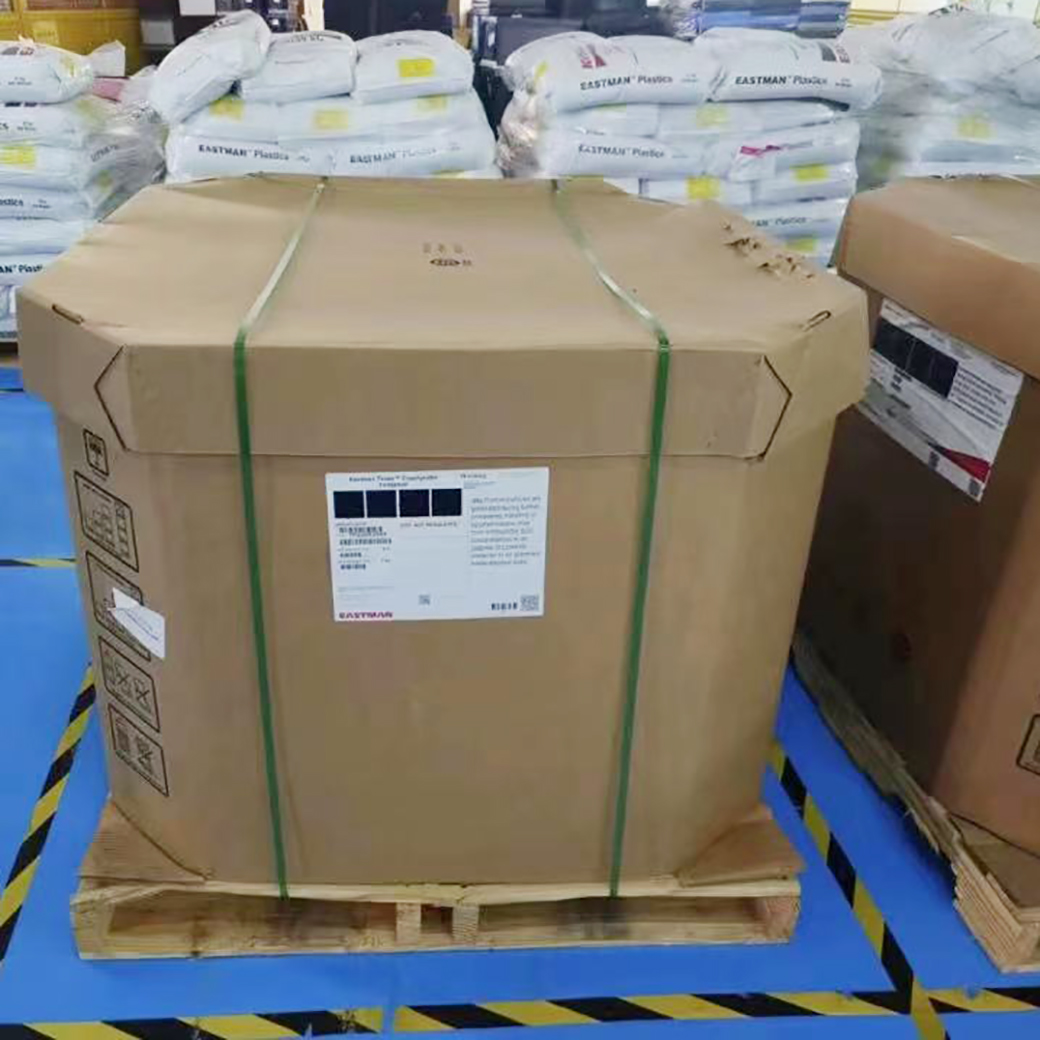

Eastman Tritan TX1001 PCTG material has two types of packaging. Please provide the type of packaging you need when inquiring. The bag packaging is 25KG per bag, and the box packaging is 610KG. The only difference is the packaging, and the contents are the same.
Eastman Tritan TX1001 PCTG pellets Advantage
- Food grade plastic material. Tritan TX1001 PCTG material does not contain BPA ingredients, complies with relevant standards for food contact and has obtained multiple certification requirements from the US FDA, NSF/ANSI 51 for food equipment contact materials, and NSF/ANS/CAN 61 for drinking water system contact materials. It can be used in food packaging materials, food processing equipment, and drinking water packaging materials.
- Tritan TX1001 produced by Eastman Chemical has excellent high temperature resistance. Compared with conventional PCTG materials, its high-temperature resistance is even better. Its heat deformation temperature reaches 99°C under a test environment of 0.45MPa, which is much higher than the 80°C of conventional PCTG materials. It is often used in the production of plastic kettles for high-temperature water applications.
- Excellent optical properties and transparency. As a resin material comparable to glass, Tritan TX1001 PCTG material has a transmittance of 90% and a haze of only 1%. It can be used in the production of applications with high requirements for appearance properties and transparency.
Why choose Baiyou as Eastman Tritan TX1001 PCTG pellets supplier?
- LeadingPoly Cyclohexylene Dimethylene Terephthalate Glycol-modified resin pellets supplier (PCTG material) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
- Fastest Arrival, with warehouses in multiple ports
- 1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
- Free Samples for production testing
- Wholesale price, even a piece of goods is based on the wholesale price
Key Attributes
| Eastman Tritan PCTG TX1001 | |||
| Product information | |||
| Manufacturer | Eastman Chemical Company | ||
| Other Certificates | MSDS | ||
| Part Marking Code | >PCTG material< | ||
| Color | ·Natural color ·Transparent | ||
| Material Shape | PCTG Pellets | ||
| Process | Injection molding PCTG material | ||
| Polymer | Copolymer | ||
| FR | HB | ||
| Material Attribute | ·Heat resistance grade ·Hydrolysis stabilized grade ·Drinking water contact grade ·Food Contact grade | ||
| specification | FDA NSF/ANSI 51 NSF/ANSI/CAN 61 UL | ||
| Features | ·Good appearance ·High Clarity ·Amorphous ·High impact ·High toughness ·Less residual stress ·Chemical Resistant ·Cleaning agents resistence ·Good mould release ·Rapid moldability ·Durable ·Good processability ·Copolyester | ||
| Application· | ·Electronic packaging ·Packaging Personal care bottles ·Ophthalmics applications ·Personal care ·Sports equipment Applications ·Adhesive tape ·Bottles ·Housewares application ·Consumer applications ·Drinking water bottle ·Food contact applications ·Food molds ·Performance film ·Point-of-purchase ·Protective film ·Tooling ·Outdoor applications | ||
| Additives | Mold Releases | ||
| UL File NO. | E118289 | ||
| Physical properties | Standard | Value | Unit |
| Density | ASTM D792 | 1.18 | g/cm³ |
| Shrinkage | ASTM D955 | 0.005~0.007 | mm/mm |
| Hardness | Standard | Value | |
| Rockwell Hardness R(Scale) | ASTM D785 | 112 | |
| Mechanical behavior | Standard | Value | |
| Tensile Modulus | ISO 527 | 1548 | MPa |
| Tensile Modulus | ASTM D638 | 1550 | MPa |
| Tensile Strength Yield | ISO 527 | 43 | MPa |
| Tensile Strength Break | ISO 527 | 58 | MPa |
| Tensile Strength Yield | ASTM D638 | 43 | MPa |
| Tensile Strength Break | ASTM D638 | 53 | MPa |
| Elongation Yield | ISO 527 | 7 | % |
| Elongation Break | ISO 527 | 185 | % |
| Elongation Yield | ASTM D638 | 6 | % |
| Elongation Break | ASTM D638 | 210 | % |
| Flexural Strength | ISO 178 | 59 | MPa |
| Flexural Strength Yield | ASTM D790 | 62 | MPa |
| Flexural Modulus | ISO 178 | 1495 | MPa |
| Flexural Modulus | ASTM D790 | 1550 | MPa |
| Izod Notch Impact 23°C | ISO 180 | 93 | kJ/m² |
| Izod Notch Impact -40°C | ISO 180 | 20 | kJ/m² |
| Izod Notch Impact 23°C | ASTM D256 | 980 | J/m |
| Izod Un-notch Impact 23°C | ASTM D4812 | NB | |
| Optical performance | Standard | Value | Unit |
| Transmittance Total light | ASTM D1003 | 90 | % |
| Haze | ASTM D1003 | 1 | % |
| Thermal | Standard | Value | Unit |
| HDT 0.45MPa | ASTM D648 | 99 | °C |
| HDT 1.8MPa | ASTM D648 | 85 | °C |
| Flammability | Standard | Value | Unit |
| Flame Rating All Color 1.6mm | UL94 | HB | °C |
| Flame Rating All Color 2.5mm | UL94 | HB | |
| Flame Rating All Color 3.2mm | UL94 | HB | |
⚠️The technical data sheet (TDS) of Tritan TX1001 PCTG material from EASTAMAN chemical company, if there are differences, please refer to the official website of EASTMAN chemical.
Partners
We have established long-term relationships with 80+ well-known companies around the world |

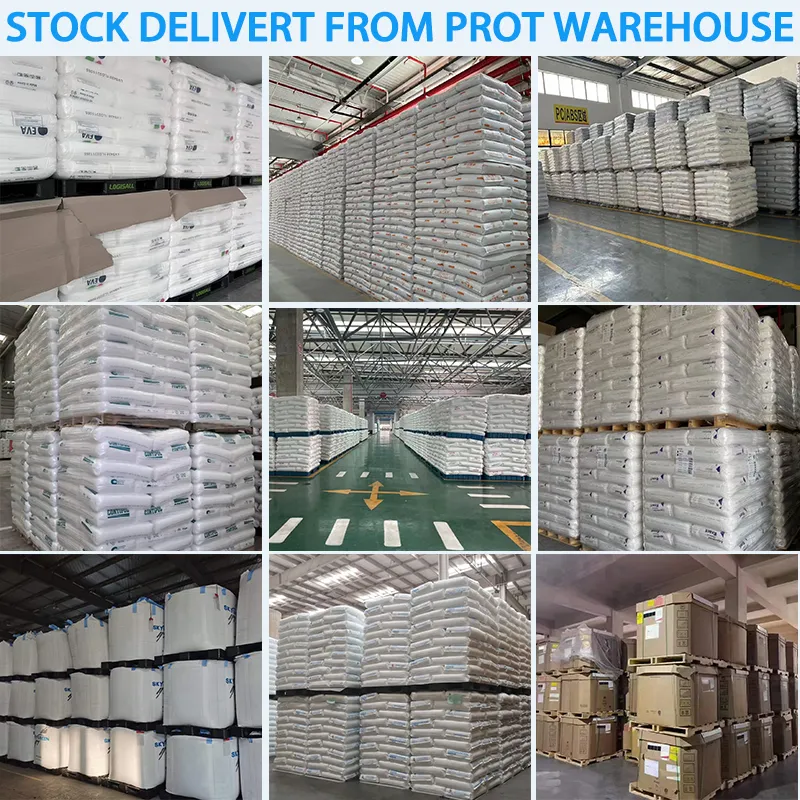

Warehouse And Shipping
