Invista U4820L NC01 PA66

Application: general purpose grade

Water Absorption: 1.8 %

Packing: 25KG / Bag

Process: Injection molding / Extrusion molding

Get Quotation

Invista U4820L NC01 PA66 Description

Invista U4820L is general purpose polyamide 66 with medium viscosity. It has lubrication and easy molding characteristics.

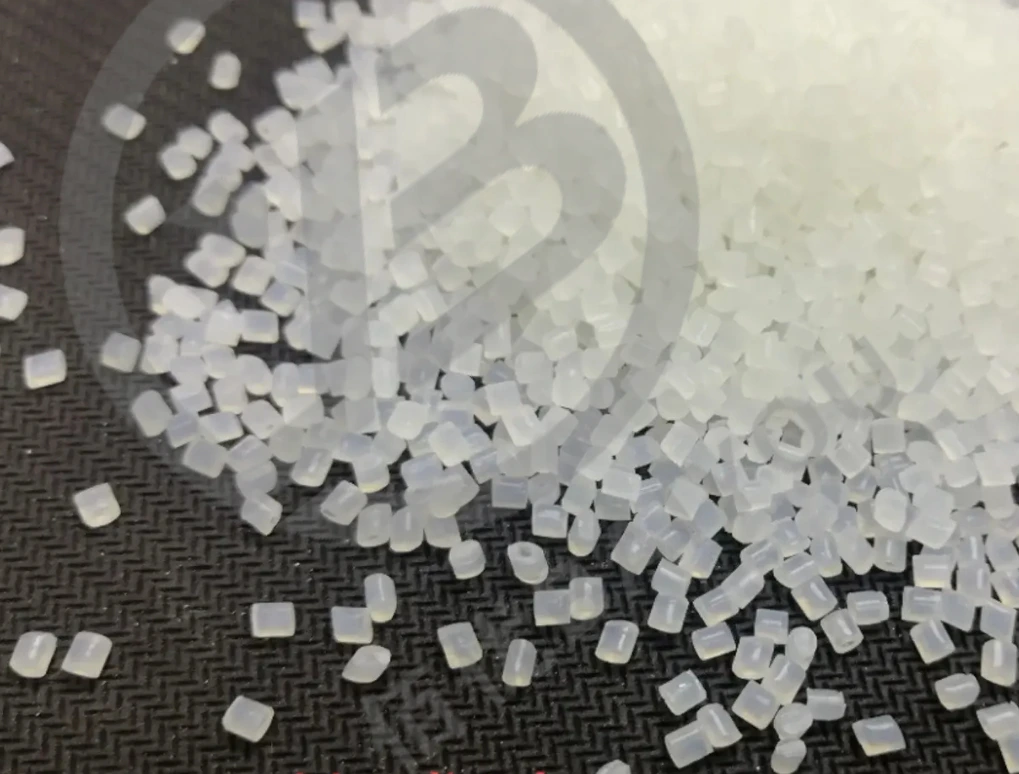

Invista U4820L NC01 nylon is natural in color; as shown in the image on the left, it comes in the form of semi-translucent, milky-white pellets. The pellets are cylindrical in shape. Please contact us if you require a custom color.👉+86 15837933829

Invista U4820L NC01 PA66 Advantage

Good processability, Invista U4820L NC01 nylon has relative viscosity of 2.7 and moderate flow rate. It is suitable for conventional injection molding and extrusion and can be used in the vast majority of processing equipment. In addition, this material contains a lubricant, which reduces residue on the mold and increases production efficiency.

Why choose Baiyou as Invista U4820L NC01 PA66 supplier?

Leading nylon 66 resin supplier (PA6,6 material) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
Fastest Arrival, with warehouses in multiple ports
1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
Free Samples for production testing
Wholesale price, even a piece of goods is based on the wholesale price

Key Attributes

Invista U4820L NC01 PA66
Product information
Manufacturer		Invista engineering polymers
Part Marking Code		>PA66 material<
Color		natural color
Material Shape		nylon66 Pellets
Process		Injection molding nylon66 Extrusion molding nylon66
FR		V-2
specification		·UL ·EU 2011/65/EC ·RoHS
Features		·Good mould release ·Short cycle time ·External lubrication ·General purpose grade ·Good processability ·Internal lubrication ·Lubricated
Application		·General purpose ·Extrusion application ·Injection molding applications
Additives		Lubricant
Phsical propertis	Standard	Value		Unit
Density	ISO 1183	1.14		g/cm³
Shrinkage flow 2.0mm	ISO 294	1.5		%
Shrinkage xflow 2.0mm	ISO 294	1.8		%
Water absorption 24hr	ISO 62	1.8		%
Water absorption 50RH equilibrium	ISO 62	2.6		%
Relative viscosity formic acid nominal	ASTM D789	48
Relative viscosity 1% in sulfuric acid nominal	Internal method	2.7
Viscosity number 0.5% H₂SO₄ nominal	ISO 307	150		mL/g
Viscosity number 0.5% in formic acid nominal	ISO 307	137		mL/g
Mechanical behavior	Standard	Dry	Wet
Tensile Modulus	ISO 527	3200
Tensile Strength yield	ISO 527	82
Elongation yield	ISO 527	4.2
Elongation break	ISO 527	35
Flexural strength	ISO 178	95
Flexural modulus	ISO 178	2900
Izod notch impact 23℃	ISO 180	5.4
Charpy notch impact 23℃	ISO 179	5.5
Charpy notch impact -30℃	ISO 179	4.3
Charpy Un-notch impact 23℃	ISO 179	NB
Charpy Un-notch impact -30℃	ISO 179	NB
Thermal	Standard	Value		Unit
HDT 0.45MPa	ISO 75	204		°C
HDT 1.8MPa	ISO 75	66		°C
Melting temperature 10℃/min	ISO 11357	261		°C
CLE flow 2.0mm 23~55℃	ISO 11359	8E-5		cm/cm/℃
CLE xflow 2.0mm 23~55℃	ISO 11359	8E-5		cm/cm/℃
Electrical properties	Standard	Value		Unit
Volume resistivity 2.0mm	IEC 60093	2E+14		Ω.cm
Dielectric strength	UL 746	18		KV/mm
CTI 3.0mm	IEC 60112	600		V
Flammability	Standard	Value		Unit
Flame Rating NC BK 0.40mm	UL94	V-2
Flame Rating NC BK 0.71mm	UL94	V-2
Flame Rating All Color 1.5mm	UL94	V-2
Flame Rating All Color 3.0mm	UL94	V-2
