Toray Amilan CM3004-V0 PA66

Material: UL94 V0 flame retardant; Heat resistant; High strength

Packing: 25KG / Bag

Process: Injection molding

Get Quotation

Toray Amilan CM3004-V0 PA66 Description

Amilan CM3004-V0 is flame-retardant polyamide 6,6 resin (PA 66 or nylon 66 material) manufactured by Toray Chemical. This polyamide material contains halogen-free flame retardants and achieves UL94 V-0 flame retardancy, offers excellent strength, toughness, heat resistance and abrasion resistance. Suitable for applications in home appliances, electronic components, automotive parts, office equipment, and more.

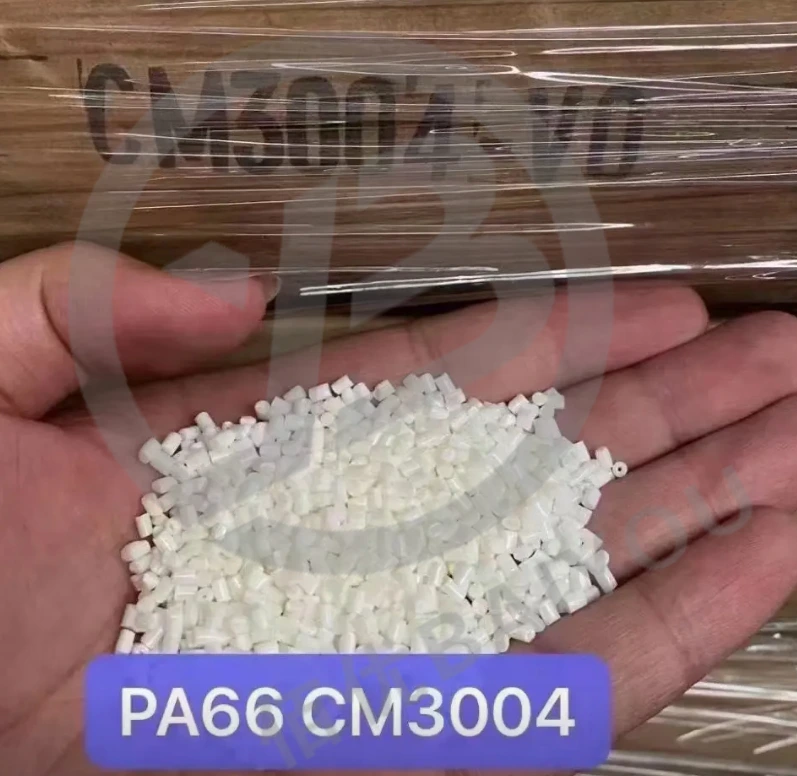

As shown in the image on the left, Toray CM3004 V0 nylon comes in its natural off-white color as cylindrical pellets. Toray CM3004 V0 BK, a standard black nylon, is also available. Please contact us if you require a custom color.👉+86 15837933829

Toray Amilan CM3004-V0 PA66 Advantage

UL 94 V0 flame retardant nylon. Toray Amilan CM3004 V-0 PA6.6 material contains a melamine-cyanurate flame retardant (MCA) that achieves UL 94 V-0 flame retardancy at thickness of 0.25 mm, making it ideal for thin-walled applications requiring highly effective flame retardancy, at the same time, because this flame retardant does not contain bromine, chlorine, or other such components and has a milky white color, the finished product performs exceptionally well in light-colored and white applications.
Excellent mechanical properties. Toray Amilan CM3004-V0 PA 6,6 material exhibits exceptional rigidity and strength, achieving a flexural modulus of 3.5 GPa at 23°C and maintaining 1.2 GPa even at 80°C. It is suitable for automotive and home appliance components requiring high strength.
Excellent high temperature resistance. Toray CM3004-V0 polyamide achieves a heat deflection temperature of 244°C at 0.46 MPa. It maintains superior performance for extended periods under typical application temperatures and retains excellent properties even in high-temperature environments. This material is suitable for applications requiring wear and heat resistance, such as automotive connectors and industrial fasteners.

Why choose Baiyou as Toray Amilan CM3004-V0 PA66 supplier?

Leading flame retardant polyamide 66 resin pellets supplier (FR PA66 material) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
Fastest Arrival, with warehouses in multiple ports
1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
Free Samples for production testing
Wholesale price, even a piece of goods is based on the wholesale price

Key Attributes

Toray Amilan CM3004-V0 PA66
Product information
Manufacturer		Toray industries, lnc
Part Marking Code		>PA66 material<
Color		Natural color
Material Shape		nylon66 Pellets
Process		Injection molding nylon66
Flame retardant		V-0
specification		UL RoHs
Features		·Unreinforeced ·Good stretchability ·High CTI ·MCA falme retardant
Application		·Auto connerctor ·Automotive interior parts ·Fasteners ·Office application ·Printer ·Bobbins ·Charger housing ·Circuit breakers ·Connerctor ·Displays ·E&E applications
Additives		·Flame ratardant agent ·Lubricant mold releases
Physical properties	Standard	Value		Unit
Density 23℃	ISO 1183	1.19		g/cm³
Shrinkage Flow 1.0mm	Internal method	0.6~0.9		%
Shrinkage xFlow 3.0mm	Internal method	1.00~1.60		%
Water Absorption 23℃ 24hr in water	ISO 62	1.1		%
Water Absorption 23℃ saturation in water	ISO 62	7.5		%
Hardness	Standard	Value		Unit
Rockwell Hardness R(Scale) 23℃	ISO 2039	120
Mechanical behavior	Standard	Dry	Wet	Unit
Tensile Strength 23℃	ISO 527	85	65	MPa
Tensile Strength 80℃	ISO 527	45		MPa
Elongation Break 23℃	ISO 527	7.5	7.5	%
Flexural Strength -40℃	ISO 178	170		MPa
Flexural Strength 23℃	ISO 178	125	70	MPa
Flexural Strength 80℃	ISO 178	65		MPa
Flexural Modulus 23℃	ISO 178	3500	1500	MPa
Flexural Modulus 80℃	ISO 178	1200		MPa
Charpy Notch Impact -40℃	ISO 179	4.5		kJ/m²
Charpy Notch Impact 23℃	ISO 179	4.5	13.0	kJ/m²
Charpy un-Notch Impact 23℃	ISO 179	135.0	NB	kJ/m²
Tabor wear 1000 cycles	ISO 9352	9~10
Thermal	Standard	Value		Unit
Heat Deflection Temperature Unannealed 0.45MPa	ISO 75	244		°C
Melting temperature DSC	Internal method	265		℃
Flammability	Standard	Value		Unit
Flame Rating All Color 0.25mm	UL94	V-0
Flame Rating All Color 0.38mm	UL94	V-0
Flame Rating All Color 0.66mm	UL94	V-0
Flame Rating All Color 1.5mm	UL94	V-0
Flame Rating All Color 3.0mm	UL94	V-0
