Sabic Lexan 3412R PC | GF20

 Sabic Lexan 3412R PC Description

Lexan 3412R FC PC resin we supply comes from the Sabic Innovation (China) Plastics Nansha plant. Standard colors include two options: Lexan 3412R-131—natural; and Lexan 3412R-739—opaque high-gloss black.

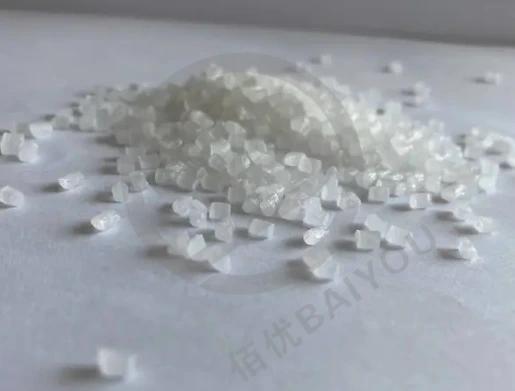

As shown in the figure on the left, Lexan 3412R-131 natural is a translucent, nearly white cylindrical pellet; due to its glass fiber content, its surface is not smooth.

Please contact us if you require custom colors.👉+86 15837933829

Sabic Lexan 3412R PC Advantage

• GF20 reinforced PC, Lexan 3412R PC contains 20% glass fiber, giving it superior rigidity, heat resistance, and dimensional stability compared to standard polycarbonate materials. Its tensile modulus reaches 6,000 MPa, its flexural modulus is 5,500 MPa, its Vicat softening point can reach 145 °C, and its heat deflection temperature (HDT) at a pressure of 0.45 MPa reaches 144 °C,making it suitable for applications requiring high rigidity and heat resistance.
• Flame retardant PC material. Lexan 3412R uses a high performance halogen flame retardant that achieves UL 94 V-0 flame retardancy at a thickness of just 1.5 mm, making it suitable for thin-walled products with stringent flame retardancy requirements.

Why choose Baiyou as Sabic Lexan 3412R PC supplier?

• Leading glass fiber reinforced polycarbonate  supplier (GF20 PC material) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
• Fastest Arrival, with warehouses in multiple ports
• 1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
• Free Samples for production testing
• Wholesale price, even a piece of goods is based on the wholesale price

---

 Key Attributes

Sabic Lexan 3412R PC
Product information
Manufacturer		Sabic innovation plastic
Other Certificates		MSDS
Part Marking Code		>PC material<
Color		Transparent polycarbonate
Material Shape		PC Pellets
Process		Injection molding
Features		·Flame retardant ·20% glass fiber reinforced
Additives		Mold release
Physical properties	Standard	Value	Unit
Melt volume rate, MVR at 300℃/1.2kg	ISO 1133	6	cm³/10min
Mold shrinkage on tensile bar, flow	SABIC METHOD	0.2-0.5	%
Moisture absorption 23℃ 50% RH	ISO 62	0.12	%
Water absorption 23% saturated	ISO 62	0.29	%
Taber abrasion, CS-17, 1 kg	SABIC METHOD	17	mg/1000cy
Mechanical behavior	Standard	Value	Unit
Tensile stress, break, 5 mm/min	ISO 527	90	MPa
Tensile strain, break, 5 mm/min	ISO 527	2	%
Tensile modulus,1 mm/min	ISO 527	6000	MPa
Flexural stress,break, 2 mm/min	ISO 178	120	MPa
Flexural modulus, 2 mm/min	ISO 178	5500	MPa
Hardness, H358 /30	ISO 2039-1	125	MPa
Impact	Standard	Value	Unit
Izod impact, unnotched 80*10*3 +23℃	ISO 180/1U	35	kJ/㎡
Izod impact, unnotched 80*10*3 -30℃	ISO 180/1U	35	kJ/㎡
Izod impact, notched 80*10*3 +23℃	ISO 180/1A	7	kJ/㎡
Izod impact, notched 80*10*3 -30℃	ISO 180/1A	6	kJ/㎡
Charpy 23℃, V-notch Edgwe 80*10*3 sp=62mm	ISO 179/1eA	6	kJ/㎡
Charpy -30℃, V-notch Edgwe 80*10*3 sp=62mm	ISO 179/1eA	5	kJ/㎡
Charpy 23℃, unnotch Edgwe 80*10*3 sp=62mm	ISO 179/1eA	40	kJ/㎡
Charpy -30℃, unnotch Edgwe 80*10*3 sp=62mm	ISO 179/1eA	40	kJ/㎡
Charpy impact, notched, 23℃	ISO 179/2C	9	kJ/㎡
Thermal	Standard	Value	Unit
Vicat Softening Temperature, rate A/50	ISO 306	155	°C
Vicat Softening Temperature, rate B/50	ISO 306	147	°C
Vicat Softening Temperature, rate B/120	ISO 306	145	°C
Thermal conductivity	ISO 8302	0.2	W/m·℃
CTE, 23℃ to 80℃, flow	ISO 11359-2	3.0E-05	1/℃
Ball pressure test, 125℃ +/- 2℃	IEC 60695-10-2	Passed
HDT/Be, 0.45 MPa Edgew 120*10*4 sp=100mm	ISO 75/Be	144	℃
HDT/Ae, 1.8 MPa Edgew 120*10*4 sp=100mm	ISO 75/Ae	139	℃
Relative Temp. Index, Elec	UL746B	130	℃
Relative Temp. Index, Mech w/impact	UL746B	125	℃
Relative Temp. Index, Mech w/impact	UL746B	130	℃
Electrical	Standard	Value	Unit
Volume resistivity	IEC 60093	>1.E+15	Ω.cm
Surface resistivity, ROA	IEC 60093	>1.E+15	Ω
Dielectrics strength, short, 1.0 mm	IEC 60243-1	20	kV/mm
Dielectrics strength, in oil, 0.8 mm	IEC 60243-1	33	kV/mm
Dielectrics strength, in oil, 1.6 mm	IEC 60243-1	25	kV/mm
Dielectrics strength, in oil, 3.2 mm	IEC 60243-1	16	kV/mm
Relative permittivity,1 MHz	IEC 60250	2.9
Dissipation factor, 50 / 60 Hz	IEC 60250	0.001
Dissipation factor, 1 MHz	IEC 60250	0.01
Comparative tracking index	IEC 60112	150	V
Relative permittivity,50 / 60 Hz	IEC 60250	3
Flame retardant	Standard	Value	Unit
UL recognized, 94 V-0 Flame Class Rating	UL 94	01.5	mm
Glow wire flammability index 850℃, passes at	IEC 60695-2-12	1	mm
Glow wire flammability index 960℃, passes at	IEC 60695-2-12	1.6	mm
Oxygen index (LOI)	ISO 4589	37	%
Optical	Standard	Value	Unit
Haze, 2.54mm	ASTM D1003	NA	%
Refractive index	ISO 489	NA
Injection molding guidance	Standard	Value	Unit
Drying temperature		120	℃
Drying time		2-4	hrs
Maximum moisture content		0.02	%
Melt temperature		290-320	℃
Nozzle temperature		280-310	℃
Front - Zone 3 temperature		290-320	℃
Middle - Zone 2 temperature		280-310	℃
Rear- Zone 1 temperature		270-280	℃
Hopper temperature		60-80	℃
Mold temperature		80-120	℃

 Partners

We have established long-term relationships with 80+ well-known  companies around the world

 Warehouse And Shipping

20+ years' experience consultant with a supply chain of 1000+ plastic raw materials in China.

Quantity (tonnes)	1-100	100-300	>300
Lead time (days)	7-10	10-15	To be negotiated

---

References and Notes

1. Sabic,"Sabic Lexan FR resin 3412R technical data sheet", Sabic innovation plastic, 15/06/2026
