sabic lexan uv stabilized polycarbonate 123R

Sabic Lexan 123R-111 PC

Application：Auto parts, Home appliance casings

Melt volume rate (MVR)： 21g/10min @ 300℃ 1.2kg

Package: 25 KG/Bga
Get Quotation

 Sabic Lexan 123R-111 PC Description

Lexan 123R is general-purpose polycarbonate pellet (PC material) produced by Sabic innovation (China) plastic company. It offers good transmittance, excellent high-temperature resistance and dimensional stability, and is suitable for injection molding, contains a release agent and UV protection, making it suitable for use in outdoor applications.
sabic lexan 123r-111

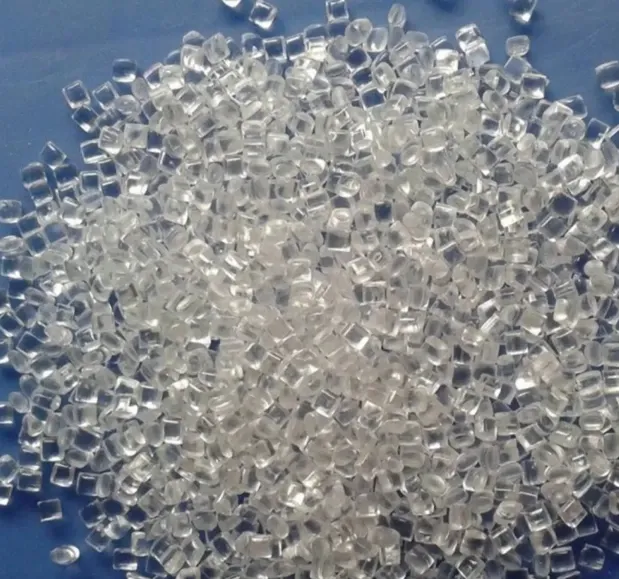

⚠️The Sabic Lexan 123R-111 PC resin supplied by our company is manufactured at the Sabic Innovation China Nansha plant. As shown in the image on the left, it is a clear polycarbonate resin in the form of cylindrical pellets. If you require Sabic Lexan 123R PC resin in other colors or from other production sites, please contact us.

Sabic Lexan 123R-111 PC Advantage

  • UV resistant PC, Compared to the Lexan 121R PC resin in the same series, the main difference with Sabic 123R is that it contains UV-resistant additives, meets the UL 746C F1 outdoor rating (highest level) for the UL Yellow Card, making products manufactured from it suitable for long-term outdoor exposure or for use as housings in small household appliances.
  • Good processing performance. Sabic 123R PC has a melt volume rate (MVR) of 21cm³/10min at 300℃ and 1.2kg . Good fluidity makes it suitable for injection molding of thin-walled products. It also contains a release agent to reduce the residual resin material in the mold and facilitate product manufacturing.

Why choose Baiyou as Sabic Lexan 123R polycarbonate pellets supplier?

  • LeadingUV stabilized polycarbonate pellets supplier (PC material) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
  • Fastest Arrival, with warehouses in multiple ports
  • 1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
  • Free Samples for production testing
  • Wholesale price, even a piece of goods is based on the wholesale price
 Key Attributes
Sabic Lexan 123R-111 PC
Product information
Manufacturer
Saudi innovation (China) plastic Co,. Ltd
Part Marking Code
>PC material<
Color
Transparent
Material Shape
Polycarbonate pellets
Process
·Injection molding
Features
·High flow ·Nonhalogenated ·Good mould release ·UV resistance
Physical property
Standard
Value
Unit
Density
ASTM D792
1.2
g/cm³
Mold shrinkage on tensile Bar, flow
 INTERNAL METHOD
0.5~0.7
%
Water Absorption, 23℃ 50% RH
ISO 62
0.15
%
Water Absorption 23°C saturated
ISO 62
0.35
%
Melt volume rate,300°C 1.2kg
ISO 1133
21
cm³/10min
Hardness
Standard
Value
Unit
Rockwell Hardness M(Scale)
ASTM D785
70
Rockwell Hardness R(Scale)
ASTM D785
118
Mechanical behavior
Standard
Value
Unit
Tensile Strength Yield 50mm/min
ISO 527
63
MPa
Tensile Strength Break 50mm/min
ISO 527
65
MPa
Tensile Stress, Yield 50mm/min
ISO 527
6
%
Tensile Strength Break 50mm/min
ISO 527
100
%
Tensile modulus, 1 mm/min
ISO 527
2350
MPa
Flexural stress, yield, 2 mm/min
ISO 178
90
MPa
Flexural Modulus 2 mm/min
ISO 178
2300
MPa
Impact
Standard
Value
Unit
Izod notched Impact 23°C
ISO 180/1eA
65
kJ/㎡
Izod notched Impact -30°C
ISO 180/1eA
11
kJ/㎡
Izod Un-notch Impact -30 °C
ISO 180/1eU
NB
kJ/㎡
Izod Un-notch Impact 23°C
ISO 180/1eU
NB
kJ/㎡
Charpy 23℃, V-notch edgew 80*10*3 sp=62mm
ISO 180/1eA
65
kJ/㎡
Charpy -30℃, V-notch edgew 80*10*3 sp=62mm
ISO 180/1eA
12
kJ/㎡
Charpy 23℃, V-notch edgew 80*10*3 sp=62mm
ISO 180/1eU
35
kJ/㎡
Charpy impact notched, 23℃
ISO 180/2C
NB
kJ/㎡
Electrical
Standard
Value
Unit
Volume resistivity
IEC 60093
＞1.E+15
Ω.cm
Surface resistivity, ROA
IEC 60093
＞1.E+15
Ω
Dieletric strength, in oil, 3,2 mm
IEC 60243
17
kV/mm
Relative resistivity 1 MHz
IEC 60250
2.7
Ω.cm
Dissipation factror, 50/60 Hz
IEC 60250
0.001
Ω.cm
Dissipation factror, 1 MHz
IEC 60250
0.01
Ω.cm
Relative resistivity, 50/60 MHz
IEC 60250
2.7
Ω.cm
Flame characteristic
Standard
Value
Unit
UL recognized, 94 HB flame class rating
UL 94
0.75
mm
UL recognized, 94 HB flame class rating 2nd value
UL 94
3
mm
Glow wire flammability index 850 ℃, passes atIEC 60695
3
mm
Oxygen indexISO 458925%
UV - light, water exposure/immersionUL 746CF1
Optical
Standard
Value
Unit
Light transmission, 2.54 mm
ASTM D1003
88-90
%
Haze, 2.54 mm
ASTM D1003
≤0.8
%
Refractive index
ISO 489
1.586
Injection molding
Standard
Value
Unit
Drying temperature
120
℃
Drying time
2-4
hrs
Maximum moisture content
0.02
%
Melt temperature
280-300
℃
Nozzle temperature
270-290
℃
Front Zone 3 temperature
280-300
℃
Middle Zone 2 temperature
270-290
℃
Rear Zone 1 temperature
260-280
℃
Hopper temperature
60-80
℃
Mold temperature
80-100
℃
 Partners
We have established long-term relationships with 80+ well-known  companies around the world
 Warehouse And Shipping
20+ years' experience consultant with a supply chain of 1000+ plastic raw materials in China.
Quantity (tonnes)
1-100
100-300
>300
Lead time (days)
7-10
10-15
To be negotiated

References and Notes

  1. Sabic,"Sabic Lexan resin 123R technical data sheet", Sabic innovation plastic Co ,. Ltd, 09/07/2026
