BASF Ultramid B3EG6 PA6 | GF30

 BASF Ultramid B3EG6 PA6 pellet Description

BASF Ultramid B3EG6 PA6 pellet Advantage

• Glass fiber reinforced polyamide material, BASF B3EG6 contains 30% glass fiber, which effectively enhances the impact resistance, high temperature resistance and strength properties of PA6 material, making it applicable in industrial applications
• Plastic materials with safe levels for drinking water contact. BASF Ultramid B3EG6 PA6 is a high-performance, high-safety plastic raw material that can be used in the production of drinking water system components. The product complies with the NSF/ANSI/CAN 61 drinking water system material safety standard and will not release harmful pollutants into the water. Through immersion testing, the migration chemical concentration meets safety standards and the material is very safe.
• Excellent insulation performance. Compared with conventional plastic raw materials, Ultramid B3EG6 polyamide 6 has better electrical insulation performance and is widely used in the field of electrical insulation components.
• Excellent high temperature resistance. B3EG6 PA6 is added with high temperature stabilizer ingredients, which has excellent high temperature resistance. The highest high temperature resistance is above 200℃, can work for a long time in the application environment of 150℃ and still maintain good mechanical properties and appearance. B3EG6 nylon 6 material can be used in harsh industrial application environments.
• Good processing performance. BASF Ultramid B3EG6 PA6 material has good processing properties. The material has a high melt index and low viscosity, can be processed by injection molding and is suitable for the manufacture of complex and precision parts. B3EG6 PA6 also contains lubricants and release agents to effectively improve the production efficiency of the product.

Why choose Baiyou as BASF Ultramid B3EG6 PA6 pellets supplier?

• Leading polyamide 6 resin pellets supplier (PA 6 / nylon 6) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
• Fastest Arrival, with warehouses in multiple ports
• 1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
• Free Samples for production testing
• Wholesale price, even a piece of goods is based on the wholesale price

---

 Key Attributes

BASF Ultramid B3EG6 PA6
Product information
Manufacturer		BASF corporation
Part Marking Code		>PA6 material<
Material Shape		nylon6 Pellets
Viscosity		Low viscosity
Process		Injection molding nylon6
FR		HB
specification		·EC 1907/2006(REACH) ·NSF/ANSI/CAN 61 ·RoHS ·UL
Features		·High flow ·Good electrical propertie ·Heating age resistant ·Hot water resistance ·Good weather resistance
Material attribute		·30% glass fiber reinforced ·Injection molding grade ·Heat stabilized grade ·Drinking water contact grade
Applications		·Electrically insulating parts ·Industrial applications
Additives		·Heat stabilizer ·Lubricant ·Mold Releases
Physical properties	Standard	Value		Unit
Density	ISO 1183	1360		kg/m³
Shrinkage		0.26		%
Shrinkage Flow	ISO 294	0.21		%
Shrinkage xFlow	ISO 294	0.74		%
Water absorption 23℃ saturation in water	ISO 62	6.3~6.9		%
Melt index 275℃ 5kg	ISO 1133	35		cm³/10min
Viscosity number 0.5% in 96% H2SO4	ISO 307	140		cm³/g
Halogen content Cl, Br, I		100		ppm
Mechanical behavior	Standard	Dry	Wet	Unit
Tensile modulus	ISO 527	9500	6200	MPa
Tensile strength break	ISO 527	185	115	MPa
Elongation break	ISO 527	3.5	8	%
Flexural strength	ISO 178	270	180	MPa
Flexural modulus	ISO 178	8600	5000	MPa
Izod notch impact 23℃	ISO 180	15.5	20	kJ/㎡
Izod notch impact -30℃	ISO 180	11		kJ/㎡
Izod notch impact 23℃	ASTM D256	150	300	kJ/㎡
Charpy notch impact 23℃ 1eA	ISO 179	15	30	kJ/㎡
Charpy notch impact -30℃ 1eA	ISO 179	11		kJ/㎡
Charpy un-notch impact 23℃	ISO 179	95	110	kJ/㎡
Charpy un-notch impact -30℃	ISO 179	80		kJ/㎡
Thermal	Standard	Value		Unit
HDT 1.8MPa	ISO 75	210		℃
HDT 0.45MPa	ISO 75	220		℃
Melting temperature DSC	ISO 11357	220		℃
CLE flow 23~80℃	ISO 11359	2.2E-5		m/m/K
CLE xflow 23~80℃	ISO 11359	1.06E-4		m/m/K
Heat conductivity coefficient	DIN 52612	0.36		W(m·K)
Specific heat	Internal method	1500		J(kg·K)
Service temperature short time	Internal method	200		℃
Service temperature 5000hr	IEC 60216	165		℃
Service temperature 20000hr	IEC 60216	135		℃
Electrical properties	Standard	Dry	Wet	Unit
Volume resistivity	IEC 62631	1E+13	1E10	Ω.m
Surface resistivity	IEC 62631-3-2	1E10		Ω
Dielectric constant 1MHz	IEC 62631-2-1	3.8	6.8
Dielectric factor 1MHz	IEC 62631-2-1	0.023	0.22
CTI solution A	IEC 60112	575		V
Flammability	Standard	Value		Unit
Flame rating all color 1.5mm	UL94	HB
Flame rating all color 3.0mm	UL94	HB
Flame rating all color 6.0mm	UL94	HB

 Partners

We have established long-term relationships with 80+ well-known  companies around the world

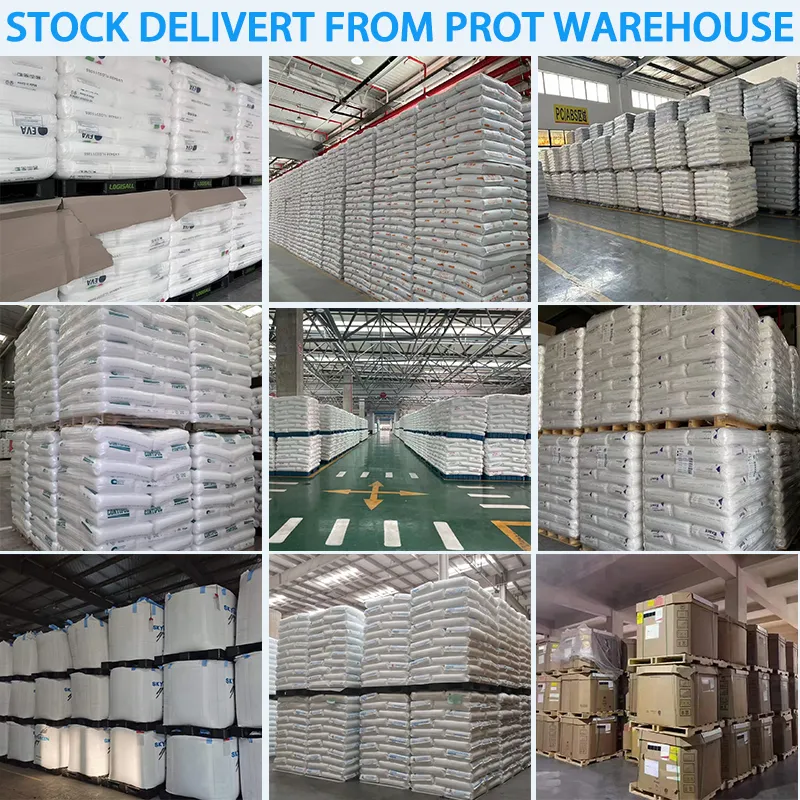

 Warehouse And Shipping

20+ years' experience consultant with a supply chain of 1000+ plastic raw materials in China.

Quantity (tonnes)	1-100	100-300	>300
Lead time (days)	7-10	10-15	To be negotiated
