envalior akulon k224-hg6 heat resistant glass fiber reinforced pa 6 material

Envalior Akulon K224-HG6 PA 6 | GF30

Material attribution: ·30% glass fiber rinforced plastic ·Heat stabilized

Package: 25KG/Bag

Process: Injection molding PA 6 material
Get Quotation

 Envalior Akulon K224-HG6 PA 6 Description

Akulon K224-HG6 is 30% glass fiber filled polyamide 6 resin (GF PA 6 / GF Nylon 6) produced by Envalior Engineering Plastics. It possesses excellent high-temperature resistance and has been certified for use in nylon applications by several automakers.

akulon k224 hg6 gf30 nylon 6

Due to historical reasons, Akulon K224-HG6 GF30 nylon 6 is manufactured by multiple brands and plants, with no differences in performance.

We generally supply Envalior Akulon K224-HG6 PA 6 produced by the Envalior Engineering Plastics (Shanghai) plant by default. If you require a product from another manufacturing location, please contact us.+86 15837933829

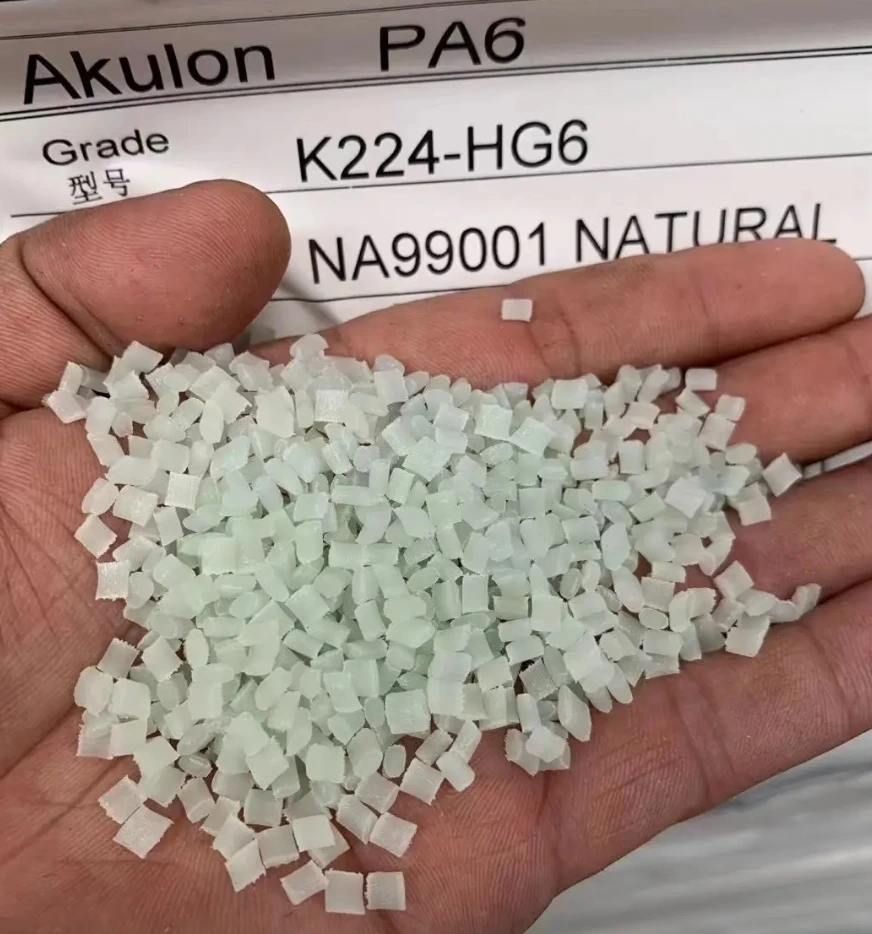

As shown in the figure on the left, Akulon K224 HG6 PA 6 NA99001 in natural color consists of granules that are roughly pillow-shaped with a greenish tint; due to the 30% glass fiber content, the surface is not smooth.

Envalior Akulon K224-HG6 PA 6 Advantage

  • GF30 PA6. Akulon K224-HG6 contains 30% glass fiber reinforcement, giving it superior temperature resistance, rigidity, strength, and dimensional stability compared to standard polyamide 6, making it more suitable for use in precision parts.
  • Excellent high temperature resistance. Akulon K224-HG6 nylon 6 retains certain mechanical properties even under extreme high-temperature conditions. At a test temperature of 200°C, it achieves a tensile modulus of 200 MPa and a stress at break of 47 MPa, making it particularly suitable for heat-generating and high-temperature applications such as automotive engines and air conditioning equipment.
  • Nylon for Automotive Applications. Thanks to its outstanding performance, Akulon K224-HG6 PA6 has been certified by numerous automakers, including BMW, FORD, GM, HYUNDAI KIA, JAGUAR LAND ROVER, MERCEDES, PORSCHE, PSA, RENAULT, STELLANTIS, TOYOTA, VOLVO, and VW. It can be used directly in automotive applications without the need for additional material certification.

Why choose Baiyou as Envalior Akulon K224-HG6 PA 6 supplier?

  • Leading 30% galss fiber filled polyamide 6 resin pellets supplier (GF30 PA 6 / nylon 6) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
  • Fastest Arrival, with warehouses in multiple ports
  • 1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
  • Free Samples for production testing
  • Wholesale price, even a piece of goods is based on the wholesale price
 Key Attributes
Envalior Akulon K224-HG6 PA 6
Product information
Manufacturer
Envalior engineering plastics
Part Marking Code
>PA 6 material<
Material Shape
·PA 6 pellets
Flame retardant·HB
Material Attribute
·30% Glass fiber reinforced ·Heat stabilized grade
Automotive certificated
·DBL 1232.85 ·DBL 5403.00 ·DBL 5409.09 ·DBL 5410.00 ·DBL 5416.00 ·FEM 03-20-007-B
·GS 93016 ·PPV 7750 ·STD1212.01-6 ·STJLR.52.154 ·STJLR.52.155 ·TSM0500G ·TSM0503G
·VW50134-PA-7 ·VW50180 ·WQ 130A ·WSS-M4D993-A
Specification·UL ·UL-746 F1
Process
Injection molding nylon 6 material
Physical propertiesStandardValueUnit
Density
ISO 11831.36
g/cm³
Melt volume flow rate (MVR), 275℃ 5kg
ISO 113340
cm³/10min
Melt mass flow rate (MFR), 275℃ 2.16kg
ISO 1133130
g/10min
Shrinkage flowISO 2940.3%
Shrinkage xflowISO 2940.9%
Water absorption
ISO 626.5%
Humidity absorption
ISO 622%
Mechanical behavior
Standard
DryWet
Unit
Tensile modulus
ISO 52795006000
MPa
Tensile modulus, -40℃
ISO 52710400-
MPa
Tensile modulus, 100℃
ISO 5274300-
MPa
Tensile modulus, 120℃
ISO 5274050-
MPa
Tensile modulus, 150℃
ISO 5273600-
MPa
Tensile modulus, 160℃
ISO 5273400-
MPa
Tensile modulus, 180℃
ISO 5273000-
MPa
Tensile modulus, 200℃
ISO 5272500-
MPa
Stress at break, -40℃
ISO 527235-
MPa
Stress at break, 100℃
ISO 52795-
MPa
Stress at break, 120℃
ISO 52790-
MPa
Stress at break, 150℃
ISO 52775-
MPa
Stress at break, 160℃
ISO 52770-
MPa
Stress at break, 180℃
ISO 52760-
MPa
Stress at break, 200℃
ISO 52747-
MPa
Tensile strength breakISO 527180110MPa
Elongation breakISO 5273.57%
Flexural strength ISO 178280160MPa
Flexural strength,120 ℃ISO 178110-MPa
Flexural strength,160 ℃ISO 17895-MPa
Flexural modulusISO 17890005200MPa
Flexural modulus, 120℃ISO 1784150-MPa
Flexural modulus, 160℃ISO 1783700-MPa
Impact
Standard
Value
Unit
Charpy notch impact 23℃ 1eAISO 1791225MPa
Charpy notch impact -30℃ 1eAISO 1791111MPa
Charpy un-notch impact 23℃ ISO 17990110MPa
Charpy un-notch impact -30℃ ISO 1797575MPa
CIzod notched impact strength, 23℃ISO 1801420MPa
Thermal
Standard
Value
Unit
HDT 1.8MPa
ISO 75205
℃
HDT 0.45MPaISO 75220℃
Melting temperature 10℃/min
ISO 11357220
℃
CLE Flow
ISO 113592E-5cm/cm/℃
CLE xFlowISO 113597E-5cm/cm/℃
Electrical properties
Standard
DryWet
Unit
Volume resistivity
IEC 600931E+121E10
Ω·cm
Surface resistivityIEC 600931E+13Ω
Relative permittivity, 100Hz
IEC 62631-2-13.520
Relative permittivity, 1 MHz
IEC 62631-2-13.35
Dielectric strength
IEC 602433025
KV/mm
Dissipation factor 100HzIEC 602500.0050.3
Dissipation factor 1MHzIEC 602500.00150.12
CTI IEC 60112500V
Flammability
Standard
Value
Unit
Flame rating all color 0.75mm
UL94
HB

Flame rating all color 1.5mmUL94HB
Flame rating all color 3.0mmUL94HB
GWIT 2mm
IEC 60695725℃
GWIT 1.5mmIEC 60695725℃
GWFI 2mmIEC 60695700℃
GWFI 1.5mmIEC 60695700℃
 Partners
We have established long-term relationships with 80+ well-known  companies around the world
 Warehouse And Shipping
20+ years' experience consultant with a supply chain of 1000+ plastic raw materials in China.
Quantity (tonnes)
1-100
100-300
>300
Lead time (days)
7-10
10-15
To be negotiated

References and Notes

  1. Envalior,"Envalior Akulon K224-HG6 30% glass fiber reinforced, heat stabilized nylon 6 technical data sheet", Envalior engineering plastics, 21/06/2026
