Sabic Lexan 940A-116 PC | Flame retardant

Material attribute: ·Flame retardant ·UL 94 V-0 ·Transparent and Translucent

Package: 25 KG/Bag

Process: Injection molding

Get Quotation

Sabic Lexan 940A-116 PC Description

Lexan 940A is a flame retardant polycarbonate (FR PC) manufactured by Saudi Basic Industrial Company. It meets the UL 94 V-0 flame-retardant rating and is available in transparent and translucent colors for use in electronic and electrical components.

Lexan 940A PC resin is manufactured in multiple locations; the product we supply is sourced from Sabic Innovation (Nansha). Standard colors include Lexan 940A-116 (transparent with a blue tint) and Lexan 940A-701 (opaque high-gloss black).

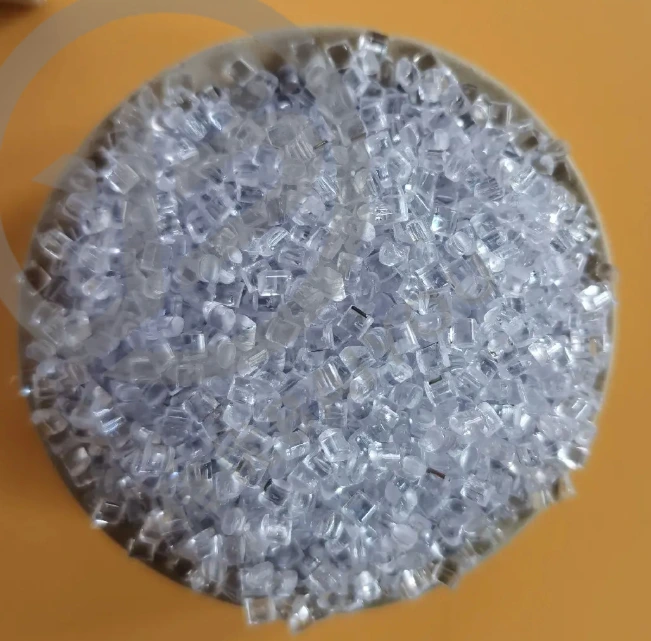

As shown in the image on the left, Lexan 940A-116 is a transparent cylindrical pellet with a slight blue tint. Please contact us if you require a custom color.👉+86 15837933829

Sabic Lexan 940A-116 PC Advantage

Flame retardant PC, Sabic Lexan 910A PC uses a bromined flame retardant system and achieves UL94 V-0 flame-retardant rating at a test thickness of 3.0 mm, making it suitable for the production of thin-walled injection-molded parts that require high performance flame retardancy.
High transparent. Standard FR PC is only available in opaque grades, but Sabic 940A FR PC offers high transparency, At a test thickness of 2.54 mm, light transmission reaches 85% and the refractive index is 1.586, which essentially matches the transparency properties of standard polycarbonate, making it suitable for applications requiring high clarity.
Balanced mechanical properties. Sabic 940A FR PC is not only flame-retardant but also has excellent mechanical properties. The Izod unnotched impact strength at 23°C is 3204 J/m, and the flexural modulus is 2240 MPa. Its high impact resistance makes it suitable for use in the manufacture of home appliance housings, automotive parts, and mechanical components.
Good machinability. Sabic 940A FR PC has a melt flow rate (MFR) of 10 g/10 min under test conditions of 300°C and 1.2 kg, making it suitable for injection molding. Additionally, this material contains a release agent, which facilitates the production of thin-walled and complex parts.

Why choose Baiyou as Sabic Lexan 940A-116 PC supplier?

Leading flame retardant polycarbonate supplier (PC material) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
Fastest Arrival, with warehouses in multiple ports
1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
Free Samples for production testing
Wholesale price, even a piece of goods is based on the wholesale price

Key Attributes

Sabic Lexan 940A-116 PC
Product information
Manufacturer		Saudi Basic Industry Corporation
Other Certificates		MSDS
Part Marking Code		>PC material<
Color		·Transparent ·Translucent
Material Shape		PC Pellets
Process		Injection molding
Features		·Transparent ·Flame retardant ·UL 94 V-0
Additives		Mold release
Physical properties	Standard	Value	Unit
Density	ASTM D792	1217	kg/m³
Melt flow rate, MFR at 300℃/1.2kg	ASTM D1238	10	g/10min
Mold shrinkage, 3.2mm, flow	SABIC METHOD	0.5-0.7	%
Moisture absorption 23℃ 50% RH	ISO 62	0.15	%
Water absorption 23% saturated	ASTM D570	0.35	%
Water absorption 23% 24 hrs	ASTM D570	0.15	%
Water absorption, equilibrium, 100℃	ASTM D570	0.58	%
Specific gravity	ASTM D792	1.21	-
Specific volume	ASTM D792	0.83	cm³/g
Mechanical behavior	Standard	Value	Unit
Tensile stress, yield, 50 mm/min	ASTM D638	62	MPa
Tensile stress, break, 50 mm/min	ASTM D638	55	MPa
Tensile strain, yield, 50 mm/min	ASTM D638	7	%
Tensile strain, break, 50 mm/min	ASTM D638	90	%
Flexural modulus,1.3 mm/min, 50 mm span	ASTM D790	2350	MPa
Flexural stress,yield,1.3 mm/min, 50 mm span	ASTM D790	91	MPa
Flexural Hardness, rockwell M	ASTM D785	70
Flexural Hardness, rockwell R	ASTM D785	118
Ball Taber abrasion, CS-17, 1kg	ASTM D1044	10	mg/1000cy
Impact	Standard	Value	Unit
Izod impact, unnotched +23℃	ASTM D4812	3204	J/m
Izod impact, unnotched -30℃	ASTM D256	640	J/m
Tensile impact strength, Type S	ASTM D1822	525	kJ/㎡
Falling dart impact (D 3029), 23℃	ASTM D3029	169	J
Thermal	Standard	Value	Unit
Vicat Softening Temperature, rate B/50	ASTM D1525	151	°C
Vicat Softening Temperature, rate B/120	ISO 306	141	°C
Thermal conductivity	ASTM C177	0.19	W/m·℃
CTE, -40℃ to 95℃, flow	ASTE E831	6.84E-05	1/℃
HDT, 0.45 MPa 6.4mm, unannealed	ASTM D648	137	℃
HDT, 1.82 MPa 6.4mm, unannealed	ASTM D648	132	℃
Relative Temp. Index, Elec	UL746B	130	℃
Relative Temp. Index, Mech w/impact	UL746B	120	℃
Relative Temp. Index, Mech w/o impact	UL746B	130	℃
Electrical	Standard	Value	Unit
Volume resistivity	ASTM D257	>1.E+17	Ω.cm
Dielectrics strength, in air, 3.2mm	ASTM D149	16.7	kV/mm
Relative permittivity,1 MHz	ASTM D150	2.96
Relative permittivity, 50 / 60 Hz	ASTM D150	3.01
Dissipation factor, 50 / 60 Hz	ASTM D150	0.0009
Dissipation factor, 1 MHz	ASTM D150	0.01
Arc resistance, tungstren {PLC}	ASTM D495	7
Hot wire ignition {PLC}	UL 746A	2
High voltage Arc track rate {PLC}	UL 746A	3
High voltage Arc Ign, surfacce {PLC}	UL 746A	3
Comparative tracking index (UL) {PLC}	UL 746A	2
Flame retardant	Standard	Value	Unit
UL recognized, 94 V-2 Flame Class Rating	UL 94	1.5	mm
UL recognized, 94 V-0 Flame Class Rating	UL 94	3.0	mm
Oxygen index (LOI)	ISO 4589	35	%
Optical	Standard	Value	Unit
Light transmission, 2.54mm	ASTM D1003	85	%
Haze, 2.54mm	ASTM D1003	1	%
Refractive index	ASTM D542	1.586
Injection molding guidance	Standard	Value	Unit
Drying temperature		120	℃
Drying time		3-4	hrs
Drying time (cumulative)		48	hrs
Maximum moisture content		0.02	%
Melt temperature		295-315	℃
Nozzle temperature		290-310	℃
Front - Zone 3 temperature		295-315	℃
Middle - Zone 2 temperature		280-305	℃
Rear- Zone 1 temperature		215-295	℃
Mold temperature		70-95	℃
Back pressure		0.3-0.7	MPa
Screw speed		40-70	rpm
Shot to cylinder size		40-60	%
Vent depth		0.025-0.076	mm
