INEOS Terlux HD 2802 MABS | Transparent

Material: ·Transparent ABS ·Transparent

Package: 25KG/Bag

Process: Injection molding

Get Quotation

INEOS Terlux HD 2802 MABS Description

Terlux HD 2802 is a methyl acrylate-acrylonitrile-butadiene-styrene copolymer (MABS material) produced by INEOS Styrolution. It offers excellent transparency, chemical resistance, flexibility, and attractive appearance properties. With a melt index of 2g/cm³, it is suitable for injection molding processes. INEOS HD 2802 MABS material meets biocompatibility requirements and can be used to produce components for the medical device industry.

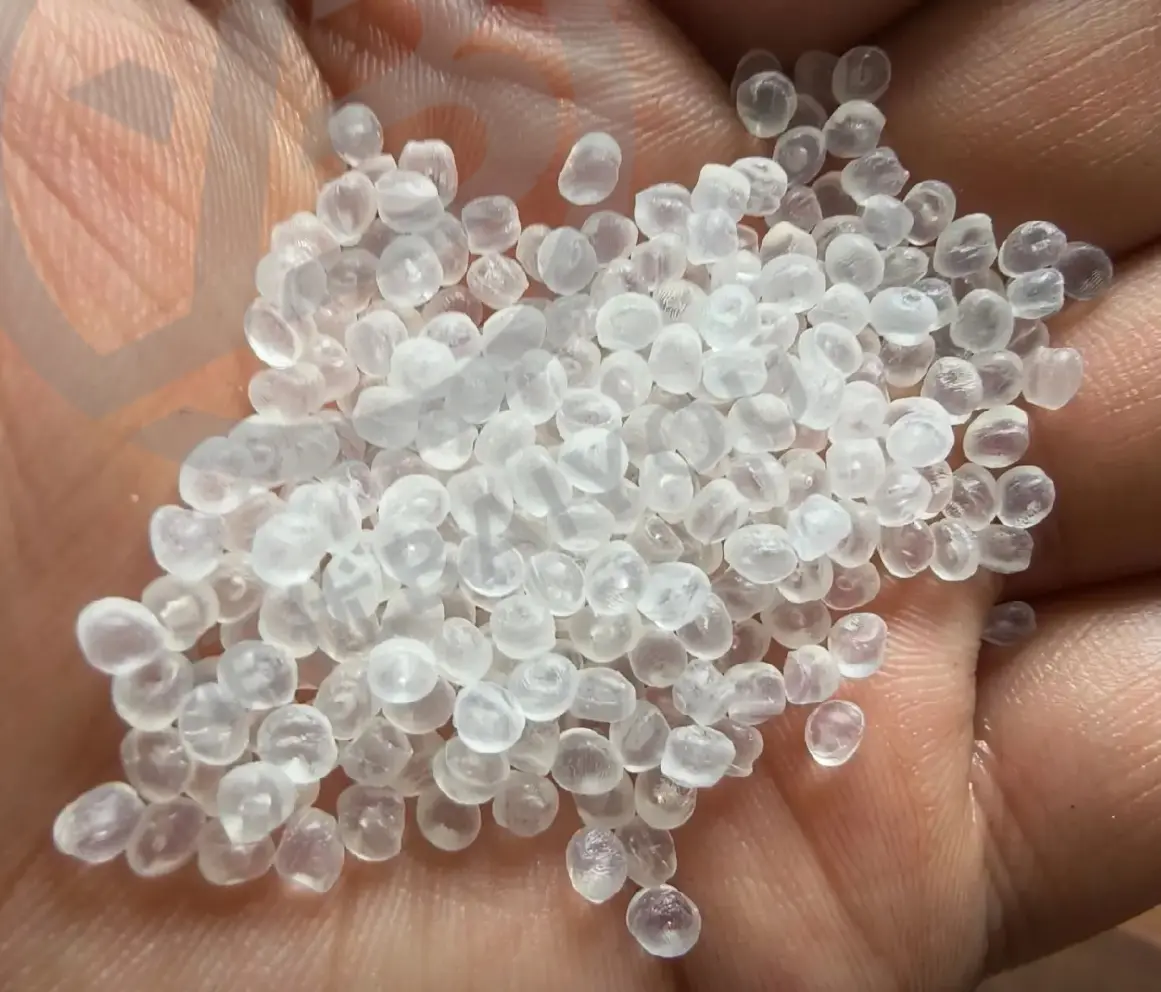

The Terlux 2802 transparent MABS material we supply comes from the BASF Chemical plant in Germany. As shown in the image on the left, it is in the form of nearly ellipsoidal granules and is transparent in color.

⚠️For historical reasons, Terlux 2802 MABS is manufactured by INEOS, BASF, and Elixpolymer using the same technology, and there is no difference among them.

If you need products from other regions, in different formats, or in custom colors, please contact us.👉+86 15837933829

INEOS Terlux HD 2802 MABS Advantage

Medical grade ABS material. As an ABS material specifically designed for medical applications, Terlux 2802 MABS has been certified to meet the biocompatibility requirements of the U.S. FDA 21 CFR,U.S. Pharmacopeia Class VI, and ISO 10993. The material offers exceptional safety for medical applications and can be used with confidence.
Transparent ABS. Unlike conventional ABS materials, INEOS 2802 MABS offers exceptional light transmission, achieving 89% transmittance at 4mm thickness under test conditions with only 3% haze. It is ideal for applications demanding high transparency and light transmission, such as transparent appliance housings, clear toys, and lampshades.
Balanced mechanical properties. INEOS HD 2802 MABS exhibits performance characteristics nearly identical to conventional ABS, featuring excellent impact resistance. In a 23°C test environment, its notched Charpy impact strength reaches 5 kJ/m², while its unnotched Charpy impact strength achieves 120 kJ/m². This material is suitable for applications demanding high external impact resistance, such as toys and appliance housings.

Why choose Baiyou as INEOS Terlux HD 2802 MABS pellets supplier?

Leading Methyl methacrylate-acrylonitrile-butadiene-styrene resin pellets supplier (transparent ABS material) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
Fastest Arrival, with warehouses in multiple ports
1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
Free Samples for production testing
Wholesale price, even a piece of goods is based on the wholesale price

Key Attributes

INEOS Terlux HD 2802 MABS
Product information
Manufacturer		INEOS Styrolution Group GmbH
Other Certificates		MSDS
Part Marking Code		>MABS material<
Color		Transparent ABS
Material Shape		MABS Pellets
Certificated		·Biocompatibility ISO 10993 ·US pharmaceutical Class Ⅵ ·Drug master file ·FDA 21 CFR
Features		·Tranparent ·Sterilization ·Ethylene Oxide Sterilization ·Gamma-Ray Sterilization
Process		Injection molding
Material attribute		·Injection grade ·Transparent ABS
Physical properties	Standard	Value	Unit
Density 23℃	ISO 1183	1080	kg/m³
Melt Index 220°C 10kg	ISO 1183	2	g/10min
Linear mold shrinkage	ISO 294	0.4~0.7	%
Moisture absorption at equilibrium 23℃ 50% r.h	ISO 62	0.35	%
Hardness	Standard	Value	Unit
Ball indentation Hardness	ISO 2039	70	MPa
Optical properties	Standard	Value	Unit
Refractive index	ISO 489	1.54%	nD
Haze at 4mm thickness	ASTM D1003	＜3	%
Transmission visible at 4mm thickness	ASTM D1003	89	%
Mechanical behavior	Standard	Value	Unit
Tensile strength at yeild	ISO 527	48	MPa
Impact strength notched charpy at 23℃ 1eA	ISO 179	5	kJ/㎡
Impact strength unnotched charpy at 23℃ 1eU	ISO 179	120	kJ/㎡
Modulus of elasticity	ISO 527	2000	MPa
Tensile strain at break 23℃	ISO 527	4	%
Thermal	Standard	Value	Unit
Heat deflection temperature (HDT), annealed at 4h/80℃ 0.45MPa	ISO 75	94	℃
Heat deflection temperature (HDT), annealed at 4h/80℃ 1.8MPa	ISO 75	90	℃
Vicat Softening Temperature	ISO 306	93	°C
Injection molding	Standard	Value	Unit
Drying temperature		70	℃
Drying time		2	h
Injection velocity		200	mm/s
Melt temperature	ISO 294	230~260	℃
Mold temperature	ISO 294	50~75	℃
