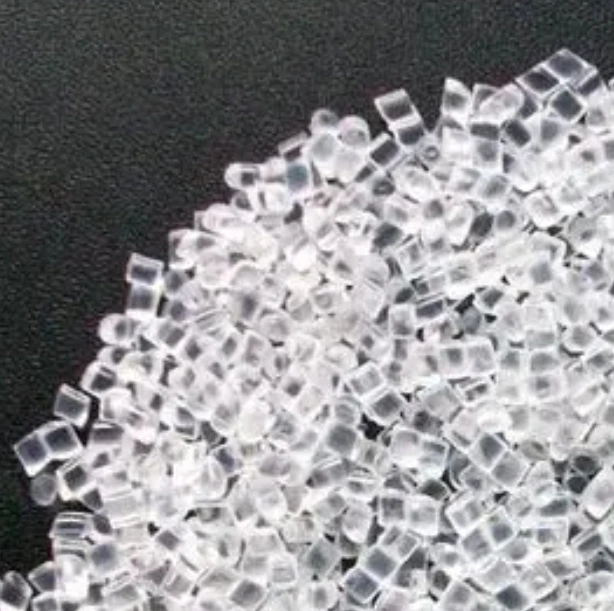

Lotte Hopelex PC-1100 PC

Application：Electrical applications, Home appliance casings, Building materials

Density: 1.2g / m³

Melt index: 21cm³ / 10min

Get Quotation

Lotte Hopelex PC-1100 PC pellet Description

Hopelex PC-1100 is a highly transparency polycarbonate resin (PC material) manufactured by Lotte Chemical, melt index (MFI) 10, containing flame retardant and release agent components, suitable for electrical applications, home appliance casings, and building materials

Lotte PC-1100 PC Advantage

Flame-retardant polycarbonate material, Lotte 1100 PC resin contains flame retardant components. Tested at a thickness of 1.6mm, its flame retardancy performance meets UL94 V-2 standards. It is suitable for appliance housings and heat dissipation modules requiring high flame retardancy and thermal management.
High impact resistance, Lotte 1100 PC material exhibits a flexural modulus of 24,000 kgf/cm² at a test thickness of 10 mm/min and an Izod impact strength of 80 kg·cm/cm at a test environment of 23°C. It is suitable for products requiring high impact resistance, such as mechanical housings and appliance casings.
Good machinability. PC Lotte 1100 exhibits a melt flow index (MFI or MVR) of 10g/10min under a 300°C, 1.2kg test environment. It is suitable for injection molding and extrusion processing methods, particularly for producing thin-walled products. Additionally, this material incorporates release agent components, facilitating large-scale rapid production.

Why choose Baiyou as Lotte 1100 PC pellets supplier?

Leading flame retardant polycarbonate resin pellets supplier (FR PC material) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
Fastest Arrival, with warehouses in multiple ports
1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
Free Samples for production testing
Wholesale price, even a piece of goods is based on the wholesale price

Key Attributes

Lotte Hopelex PC-1100 PC pellets
Product information
Manufacturer		Lotte chemical corporation
Part Marking Code		>PC -FR<
Color		Transparent
Material Shape		PC Pellets
Process		·Injection molding grade PC pellets ·Extrusion molding grade PC pellets
Features		·Flame retardant ·Good mould release
Additives		·Flame retardant agent ·Mold releases
Application		·Complex parts ·Small parts
Physical properties	Standard	Value	Unit
Density	ASTM D792	1.2	g/cm³
Shrinkage Flow	ASTM D955	0.5~0.7	%
Melt Index 300°C 1.2kg	ASTM D1238	10	g/10 min
Mechanical behavior	Standard	Value	Unit
Tensile Strength Yield 50mm/min	ASTM D638	630	kg/㎡
Elongation Break 50mm/min	ASTM D638	100	%
Flexural Strength Yield 10mm/min	ASTM D790	920	kg/㎡
Flexural Modulus 10mm/min	ASTM D790	24000	kg/㎡
Izod Notch Impact 23°C 3.2mm	ASTM D256	80	kg-cm/cm
Optical performance	Standard	Value	Unit
Transmittance	ASTM D1003	89	%
Haze	ASTM D1003	0.8	%
Refractive Index	ASTM D542	1.585
Thermal	Standard	Value	UnitH
Heat deflection temperature (HDT) 0.45MPa	ASTM D648	143	℃
Heat deflection temperature (HDT) 1.58MPa	ASTM D648	132	℃
Vicat softending temperature 50℃/hr 50N	ASTM D1525	150	℃
Flammability	Standard	Value	Unit
Flame Rating NC 1.6mm	UL94	V-2
Flame Rating NC 3.2mm	UL94	V-2
Processing guides	Standard	Value	Unit
Dry temperature		120	℃
Dry time		4	hr
Maximum moisture content		0.02	%
Melt temperature		290-310	℃
Nozzle temperature		280-300	℃
Barrel rear zone		290-310	℃
Barrel middle zone		280-300	℃
Barrel front zone		270-290	℃
Hopper temperature		60-80	℃
Mold temperature		60-90	℃

⚠️The technical data sheet (TDS) of Lotte 1100 polycarbonate resin (PC material) from Lotte chemical, if there are differences, please refer to the official website of lotte.
