Sabic Lexan 945A PC

Material attribution: Halogen free flame retardant agents; UL 94 V-0 5VA

Package: 25KG/Bag

Process: Injection molding
Get Quotation

 Sabic Lexan 945A PC pellet Description

Lexan 945A is a halogen-free, unfilled, medium-viscosity flame retardant polycarbonate resin pellet (PC material) produced by Saudi basic industry corporation. At a thickness of 3.0 mm, Sabic 945A PC meets the UL 94 V-0 flame-retardant rating; it has a melt flow index of 10, moderate flow rate, and is relatively easy to process.

Sabic Lexan 945A PC pellet Advantage

  • High-performance flame-retardant polycarbonate. Sabic Lexan 945A containing halogen-free flame retardants，This makes it suitable for use in regions with stringent environmental requirements, such as Europe and the United States. Additionally, its fire rating can reach UL94 V-0 in a 3.0 mm test environment, making it particularly well-suited for applications requiring heat dissipation and high-temperature environments.
  • Excellent transparency. As a flame-retardant polycarbonate, Sabic Lexna 945A PC retains excellent transparency, with a light transmission of 88% (at a thickness of 2.54 mm) and a refractive index of 1.586, making it ideal for applications requiring high clarity, such as protective face shields and observation windows.
  • Good processing properties. The melt volume rate (MVR) of Sabic Lexan 945A PC material is 10 cm³/10 min at 300°C and 2.16 kg. It has medium viscosity and is suitable for injection molding. It has relatively broad requirements for processing equipment and a wide range of applications.

Why choose Baiyou as Sabic Lexan 945A PC pellets supplier?

  • Leading flame retardant polycarbonate resin pellets supplier (PC material) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
  • Fastest Arrival, with warehouses in multiple ports
  • 1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
  • Free Samples for production testing
  • Wholesale price, even a piece of goods is based on the wholesale price
 Key Attributes
Sabic Lexan 945A PC
Product information
Manufacturer
Saudi basic industry corporation
Part Marking Code
>PC material<
ColorTransparent
Material Shape
·PC pellets
Flame retardant·V-2 ·V-1 ·V-0 ·5VA
Material Attribute
·Non halogen ·Injection grade
Specification·UL
Features
·Medium flow ·Unfilled
Application
·Adapter
Additives·Flame retardant agent
Physical propertiesStandardValueUnit
Density
ISO 1183
1.2
g/cm³
Shrinkage flowInternal method0.5~0.7%
Water absorption 23℃ saturationISO 620.35%
Water absorption 23℃ 50RH
ISO 620.15%
Melt index 300℃ 1.2kgISO 113310cm³/10min
HardnessStandardValueUnit
Ball indentation hardness H358/30ISO 203995MPa
Mechanical behavior
Standard
Value
Unit
Tensile modulus 1.0mm/min
ISO 5272350
MPa
Tensile strength yield 50mm/minISO 52763MPa
Tensile strength break 50mm/minISO 52765MPa
Elongation yield 50mm/minISO 5276%
Elongation break 50mm/minISO 527100%
Flexural strength yield 2.0mm/minISO 17890MPa
Flexural modulus 2.0mm/minISO 1782300MPa
Izod notch impact 23℃ 3.0mm type A
ISO 18070kJ/㎡
Izod notch impact -30℃ 3.0mm type AISO 18012kJ/㎡
Izod un-notch impact 23℃ 3.0mm type AISO 180NBkJ/㎡
Izod un-notch impact -30℃ 3.0mm type AISO 180NBkJ/㎡
Charpy notch impact 23℃ 1eAISO 17973kJ/㎡
Charpy notch impact -30℃ 3.0mm 1eAISO 17914kJ/㎡
Charpy un-notch impact 23℃ 3.0mmISO 179NBkJ/㎡
Charpy un-notch impact -30℃ 3.0mmISO 179NBkJ/㎡
Optical performanceStandardValueUnit
TransmittanceASTM D100388%
Refractive indexISO 3891.586
Thermal
Standard
Value
Unit
Heat deflection temperature (HDT) 0.45MPa 4.0mm
ISO 75136
℃
Heat deflection temperature (HDT) 1.8MPa 4.0mmISO 75125℃
Vicat softening temperature 50℃/hr 50N
ISO 306141
℃
Vicat softening temperature 120℃/hr 50NISO 306142℃
CLE Flow 23℃~80℃
ISO 113597E-5cm/cm/℃
CLE xFlow 23℃~80℃ISO 113597E-5cm/cm/℃
Heat conductivity coefficientISO 83020.2W/(m·K)
Electrical properties
Standard
Value
Unit
Volume resistivity
IEC 600931E+15
Ω·cm
Surface resistivityIEC 600931E+15Ω
Dielectric strength 3.2mm in oil
IEC 6024317
KV/mm
Dielectric constant 1MHzIEC 602502.7

Dielectric constant 50/60HzIEC 602502.7
Dissipation factor 50/60HzIEC 602500.001
Dissipation factor 1MHzIEC 602500.01
CTIIEC 60112225V
Flammability
Standard
Value
Unit
Flame rating all color 0.8mm
UL94
V-2

Flame rating all color 1.0mmUL94V-2
Flame rating all color 1.5mmUL94V-2
Flame rating all color 2.3mm
UL94
V-2

Flame rating all color 2.5mmUL94V-1
Flame rating all color 3.0mmUL94V-0
GWIT 1.0mmIEC 60695850℃
GWIF 1.0mmIEC 60695960℃
Limiting oxygen indexISO 458935%
Injection moldingStandardValueUnit
Dry temperature120℃
Dry time
2~4
hr
Water content control≤0.02%
Zone1 temperature260~280℃
Zone2 temperature270~290℃
Zone3 temperature280~310℃
Nozzle temperature270~290℃
Cylinder temperature60~80℃
Melt temperature280~310℃
Mould temperature80~110℃
⚠️The technical data sheet of Sabic lexan 945A flame retardant polycarbonate material from Saui basic industry, if there are differences, please refer to the offical website of Sabic
 Partners
We have established long-term relationships with 80+ well-known  companies around the world

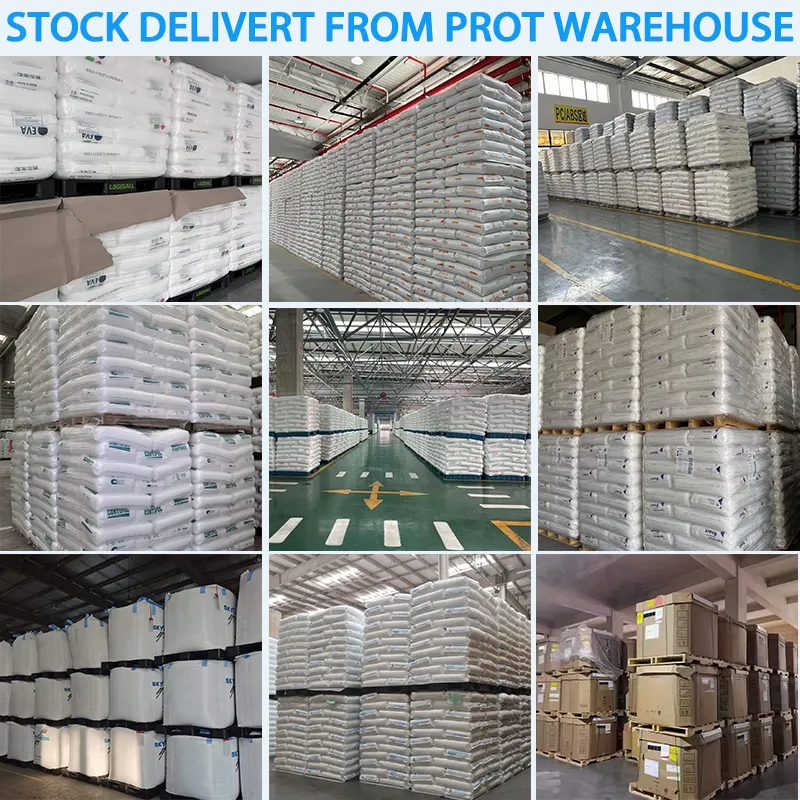

 Warehouse And Shipping
