UBE 1013B PA6

Process ： Injection molding

Package：25KG/Bag

Get Quotation

UBE 1013B PA6 Description

UBE 1013B is an unreinforced nylon resin (PA6 or Polyamide 6) featuring excellent self-lubricating properties, good flexibility, and wear resistance. It offers outstanding resistance to oil, heat, solvents, and chemicals, with medium viscosity and favorable processing conditions, making it suitable for injection molding applications.

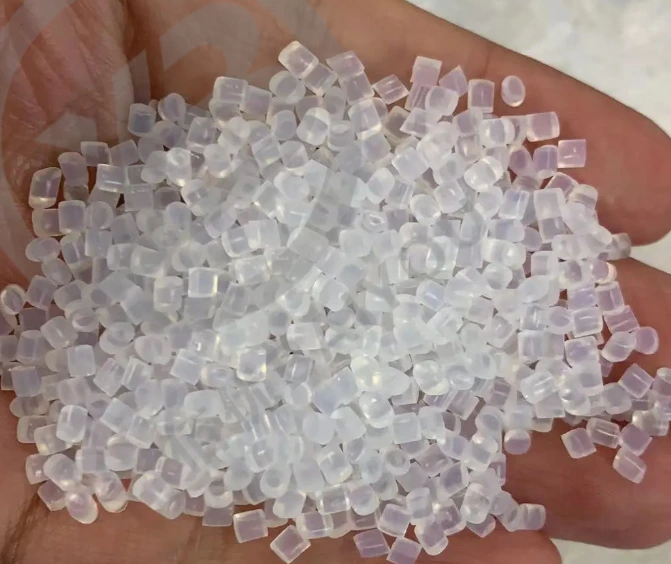

As shown in the image on the left, the UBE 1013B natural nylon 6 resin we supply comes in natural-colored pellets that are semi-transparent and cylindrical in shape. Please contact us if you require a custom color.👉+86 15837933829

UBE 1013B PA6 Advantage

Excellent machinability. UBE nylon 1013B offers favorable processing conditions with low melt viscosity, making it suitable for injection molding applications. It is recommended for complex-shaped mechanical components.
Excellent mechanical properties. UBE 1013B exhibits exceptional wear resistance, achieving a tensile modulus of 2900 MPa under ISO 527 testing standards and a flexural modulus of 2700 MPa under ISO 178 testing standards. Its outstanding material hardness results in a highly structured molecular composition, providing superior wear resistance and dimensional stability. This makes it ideal for precision component applications.

Why choose Baiyou as UBE 1013B PA6 supplier?

Leading general purpose nylon 6 resin pellets supplier (PA6 material) , 20+ years of experience in plastic product manufacturing and chemical raw material import and export
Fastest Arrival, with warehouses in multiple ports
1,000+ types of resins are available, and we have cooperated with large petrochemical groups for 30+ years
Free Samples for production testing
Wholesale price, even a piece of goods is based on the wholesale price

Key Attributes

UBE 1013B PA6
Product information
Manufacturer		UBE industries LTD
Part Marking Code		>PA6 material<
Color		Natural color
Material Shape		PA6 Pellets
Process		Injection molding
Viscosity		Medium viscosity
Flame retardant		V-2
Material attribute		Injection molding grade
specification		UL
Physical properties	Standard	Value	Unit
Density	ISO 1183	1.14	g/cm³
Linear mold shrinkage flow at 301003mm	Internal method	1.4	%
Linear mold shrinkage, transverse at 301003mm	Internal method	1.5	%
Water absorption	Internal method	3	%
Hardness	Standard	Value	Unit
Hardness, Rockwell R	ASTM D2039	80
Hardness, Rockwell M	ASTM D2039	120
Mechanical behavior	Standard	Value	Unit
Tensile strength at yield	ISO 527	80	MPa
Flexural modulus	ISO 178	2.7	GPa
Flexural strength	ISO 178	110	MPa
Impact strength, notched charpy	ISO 2039	6	kJ/㎡
Modulus of elasticity	ISO 527	2.9	GPa
Tensile strain at break	ISO 527	30	%
Electrical properties	Standard	Value	Unit
Arc resistant	ASTM D495	119	s
Comparative tracking index	UL746L	＞600	V
Dielectric strength	IEC 60243	20	kV/mm
Relative permittivity	IEC 60250	3.5
Volume resistivity	JIS K6911	10¹⁵	ohm-cm
Thermal	Standard	Value	Unit
CTE,Linear	ISO 11359	8*10⁻⁵	°C
Heat deflection temperature at 0.45MPa	ISO 75	155	℃
Heat deflection temperature at 1.8MPa	ISO 75	60	℃
Melt point	ISO 11357	215-225	℃
